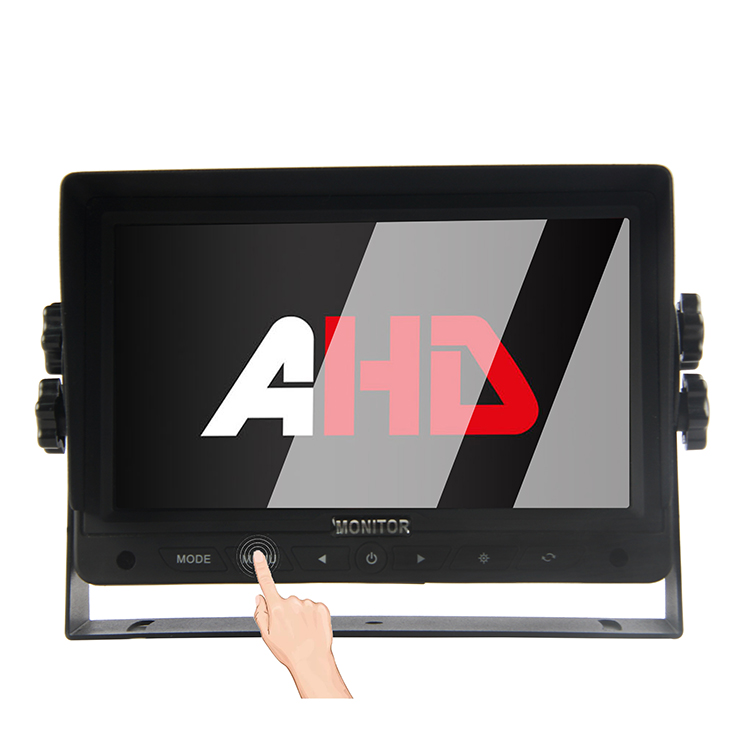

7 Inch 2CH AHD Inputs Car Monitor with Touch Buttons

Carleader 7 Inch 2CH AHD Inputs Car Monitor with Touch Buttons, a high performance AHD monitor which is designed for truck, bus, RV, van, etc. It offer 2 AHD video input and 3 AHD video input optional. New digital panel and all touch buttons with background lights.

Model:CL-S752AHD

Send Inquiry

Product Description

Carleader 7 Inch 2CH AHD Inputs Car Monitor with Touch Buttons, 7'' digital panel with 16:9 aspect ratio, 1024 x 600 resolution, 2 channels AHD signal inputs with 2 channels trigger wires. Compatible with CVBS and AHD cameras, PAL / NTSC auto switch.

Parameter:

7 Inch 2CH AHD Inputs Car Monitor with Touch Buttons
Model	CL-S752AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Touch buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	17.8 x 12 x 2.4 cm (without shade) 17.8 x 12 x 5.5 cm (with shade)
