7 Inch 2CH AHD Inputs Reversing Vehicle Monitor with Single Button

Carleader 7 Inch 2CH AHD Inputs Reversing Vehicle Monitor with Single Button has a unique appearance design. You can rest assured to buy 7 Inch Rear View AHD Monitor Only One Button from our factory and we will offer you timely delivery and the best after-sale service.

Model:CL-S711AHD

Send Inquiry

Product Description

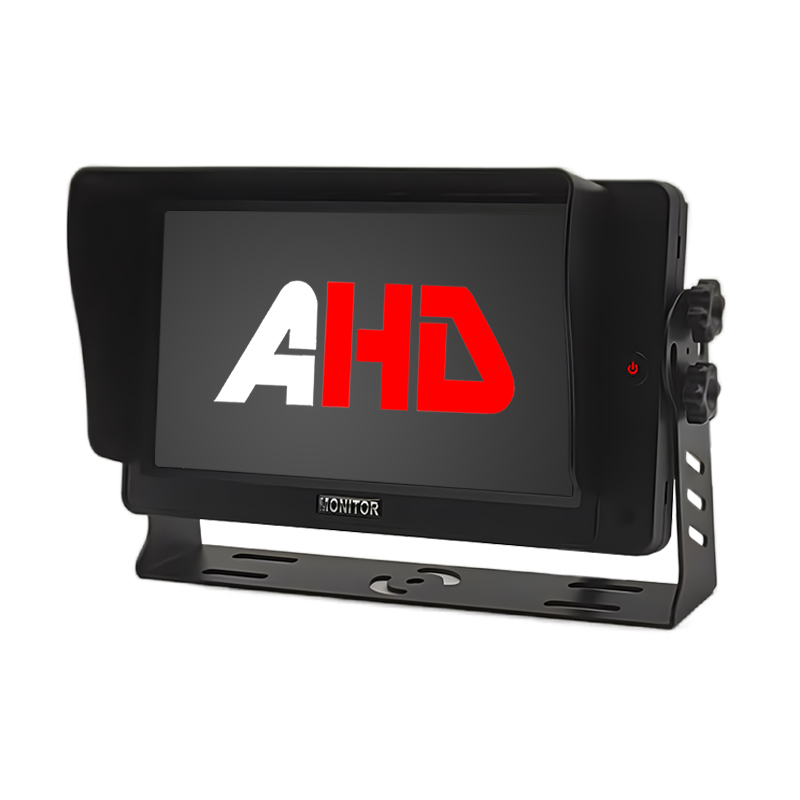

Carleader 7 Inch 2CH AHD Inputs Reversing Vehicle Monitor with Single Button, a high performance AHD monitor, 16:9 aspect ratio and 1024 x 600 resolution, offer a clear vision for driver. 2 channels AHD signal inputs with 2 channels trigger wires.

Parameter:

7 Inch 2CH AHD Inputs Reversing Vehicle Monitor with Single Button
Model	CL-S711AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	19.4 x 11.5 x 2.65 cm (without shade) 19.4 x 11.5 x 6.67 cm (with shade)
