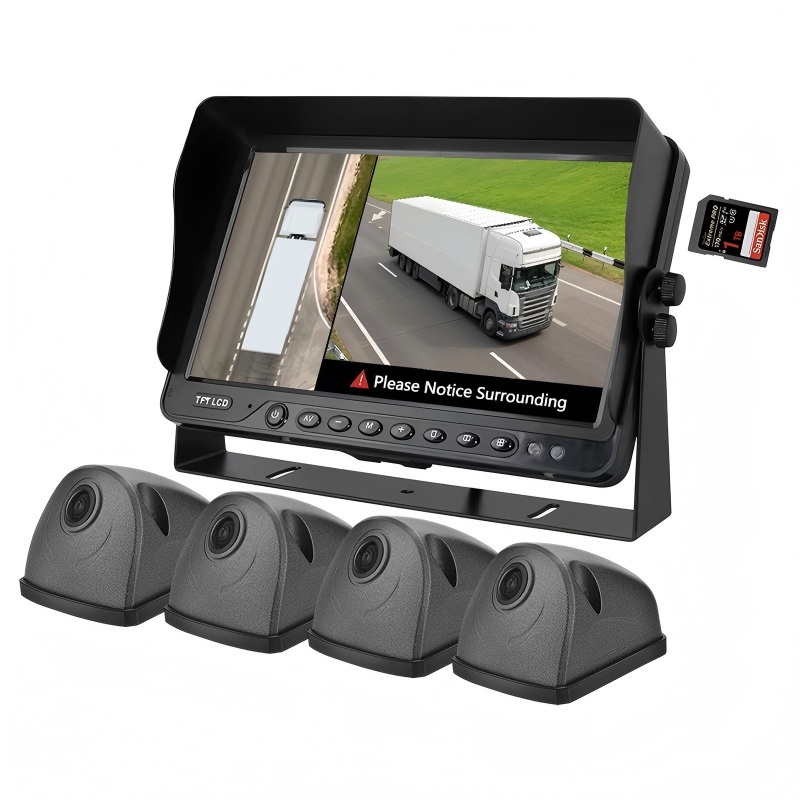

7 Inch 360 AVM System with AI Blind Spot Detection and 1080P Cameras

Carleader 7 Inch 360 AVM System with AI Blind Spot Detection and 1080P Cameras which is designed to help drivers monitor the vehicle's surroundings and identify potential blind spots during driving and maneuvering. By combining a 360-degree surround-view camera system with AI pedestrian and vehicle recognition, it provides visual monitoring and additional warning functions for commercial vehicle safety applications.

Advantages

1. Enhanced Surrounding Visibility

The 360-degree AVM configuration is designed to help drivers monitor areas around the vehicle that may be difficult to observe directly. The 210° camera viewing angle supports wide-area image capture, while the multi-picture display allows surrounding views to be monitored on one screen.

2. AI-Based Blind Spot Awareness

The built-in AI vision algorithm supports pedestrian and vehicle recognition. This adds an AI-assisted layer to the surround-view system, helping drivers pay attention to potential hazards around the vehicle.

3. Combined Visual, Light and Voice Alerts

The system integrates three warning methods: camera images on the display, a BSD LED indicator and an intelligent voice broadcast horn. This multi-channel approach helps draw the driver's attention to potential hazards through both visual and audible notifications.

4. High-Resolution Display and Camera Configuration

The 1024×600 display provides a clear viewing interface, while the 1080P cameras deliver high-resolution image input. This combination is suitable for vehicle monitoring applications that require a dedicated surround-view display.

5. Recording for Vehicle Monitoring

Support for SD cards up to 1TB and loop recording enables video recording for vehicle monitoring. Storage capacity and recording duration will depend on the selected card, recording settings and system configuration.

Product Parameters

Product Name: 7 Inch 360 AVM System

Display Size: 7 Inch

Display Resolution: 1024 × 600

Brightness: 600 cd/m²

Contrast Ratio: 500:1

Screen Backlight: LED

Video System: PAL/NTSC

Reverse Image: Supported

Video Display: Single-picture / multi-picture display

Camera Resolution: 1080P

Camera Viewing Angle: 210°

AI Recognition: Pedestrians and vehicles

Blind Spot Detection: 360-degree whole-vehicle blind spot detection support

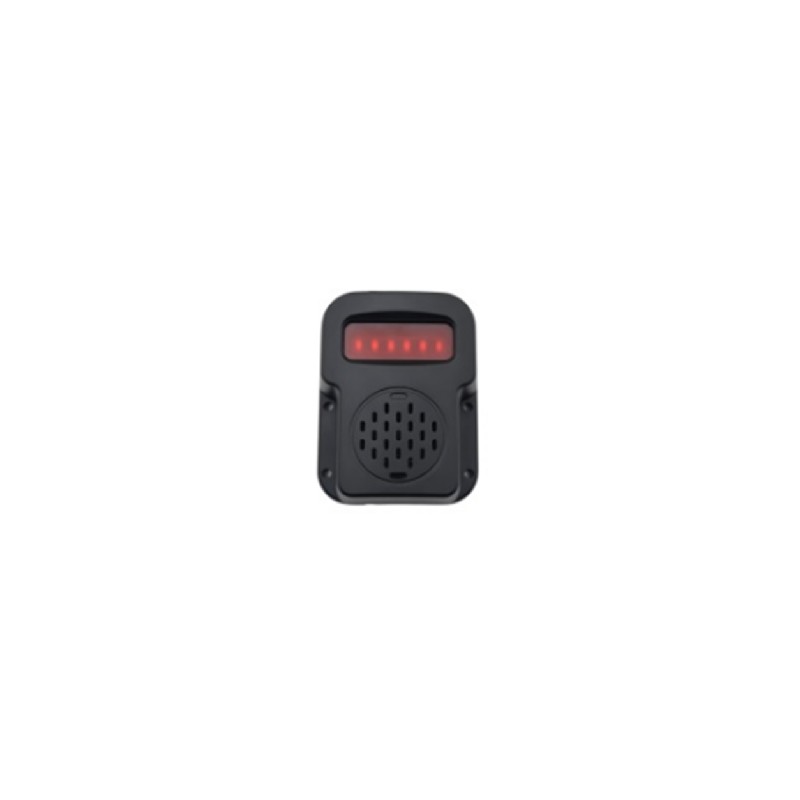

Warning Method: Image + BSD LED indicator light + intelligent voice broadcast horn

Storage Method: SD card

Maximum SD Card Capacity: 1TB

Loop Recording: Supported

Parking Assistance: Supported

Software Upgrade: Local upgrade supported

Operation: Panel buttons / remote control

Interface: Aviation connector

Operating Voltage: DC 12V–36V

Operating Temperature: -20°C to 70°C, RH 95% MAX

Storage Temperature: -30°C to 80°C, RH 95% MAX

Application Scenarios

The 7 Inch 360 AVM System can be considered for vehicle applications where surround visibility and blind spot awareness are important.

• Commercial trucks: Monitor surrounding areas during turning, reversing and low-speed maneuvering.
• Heavy-duty vehicles: Support driver awareness around large vehicles with limited direct visibility.
• Construction vehicles: Help monitor surrounding activity in busy worksites and confined operating areas.
• Logistics and delivery vehicles: Provide surrounding camera views during loading, unloading and reversing.
• Fleet vehicles: Add a surround-view and AI warning solution to vehicle safety equipment.
• Special-purpose vehicles: Can be evaluated for custom vehicle projects requiring 360-degree monitoring and AI pedestrian/vehicle recognition.

Vehicle suitability depends on camera positioning, vehicle dimensions, calibration requirements and installation design.

FAQ

Q1: What is a 7 Inch 360 AVM System?

A1: A 7 Inch 360 AVM System is a vehicle surround-view monitoring system that combines a display and multiple cameras to provide surrounding images. This model also supports AI pedestrian and vehicle recognition for whole-vehicle blind spot detection.

Q2: Does this 360 AVM system support AI recognition?

A2: Yes. The built-in AI vision algorithm supports pedestrian and vehicle recognition.

Q3: How does the blind spot warning function work?

A3: The system provides a three-in-one warning function combining the camera image on the display, a BSD LED indicator light and an intelligent voice broadcast horn.

Q4: What is the camera resolution and viewing angle?

A4: The specified camera resolution is 1080P, and the camera viewing angle is 210°.

Q5: Does the system support video recording?

A5: Yes. It supports SD card recording and loop recording, with a maximum supported SD card capacity of 1TB.

Q6: What is the operating voltage?

A6: The system supports DC 12V–36V input.

Q7: Can the system be used on different commercial vehicles?

A7: It can be evaluated for trucks, construction vehicles, logistics vehicles and other commercial vehicle applications. Camera placement, vehicle dimensions, wiring and installation requirements should be confirmed before ordering.

Q8: Does the system support parking assistance?

A8: Yes. Parking assistance is listed as a supported function.

Q9: How is the system operated?

A9: The system supports operation through the display panel buttons or a remote control.

Q10: Can Carleader help confirm compatibility before ordering?
