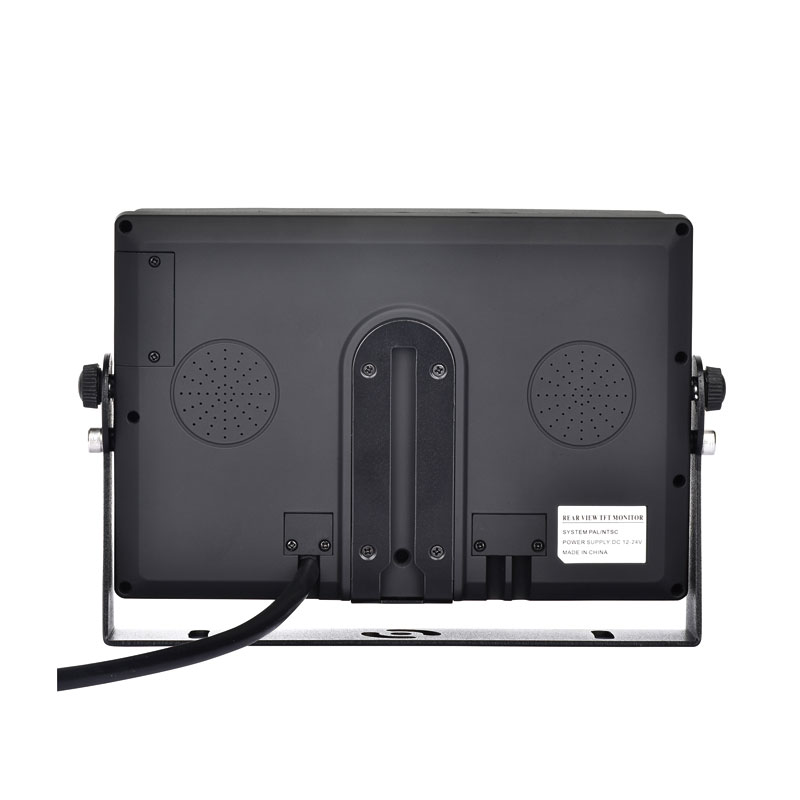

7 Inch 3CH AHD Inputs Vehicle Backup Monitor

Welcome to buy 7 Inch 3CH AHD Inputs Vehicle Backup Monitor from Carleader. Every request from customers is being replied within 24 hours.We are a professional manufacturer of vehicle security monitoring system.

Model:CL-S790AHD

Send Inquiry

Product Description

Carleader 7 Inch 3CH AHD Inputs Vehicle Backup Monitor, a 7 inch AHD monitor with 16 : 9 image ratio, 800 x 480 (RGB) resolution. With 3 video inputs and trigger wires, could be compatible with CVBS&720P&960P&1080P HD 25/30fps P/N video inputs.

Parameter:

7 Inch 3CH AHD Inputs Vehicle Backup Monitor
Model	CL-S790AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	18 x 12.1 x 2.42 cm (without shade) 20.2 x 14.2 x 7.7 cm (with shade)
