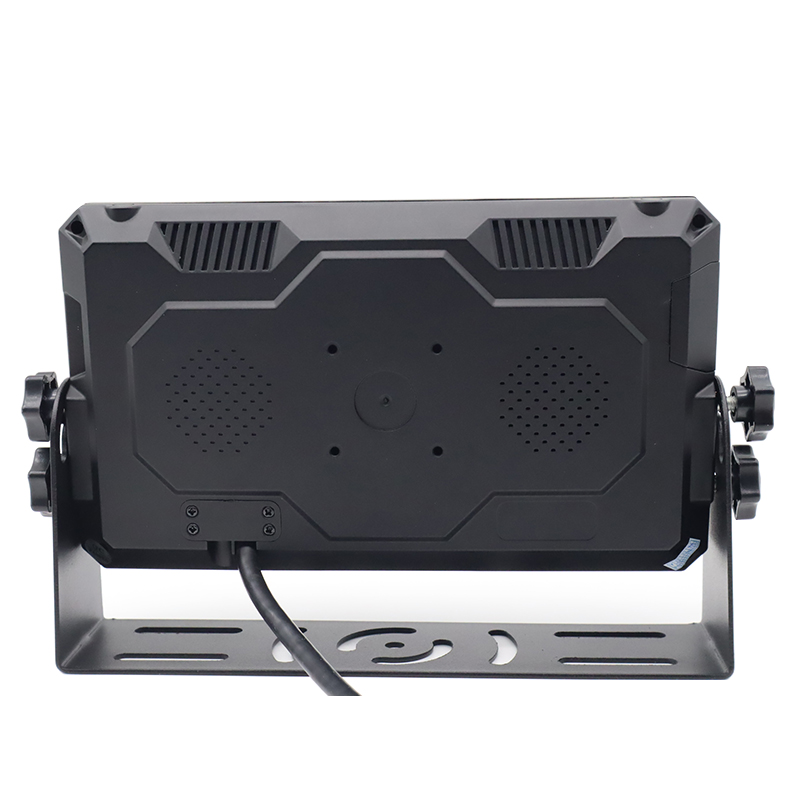

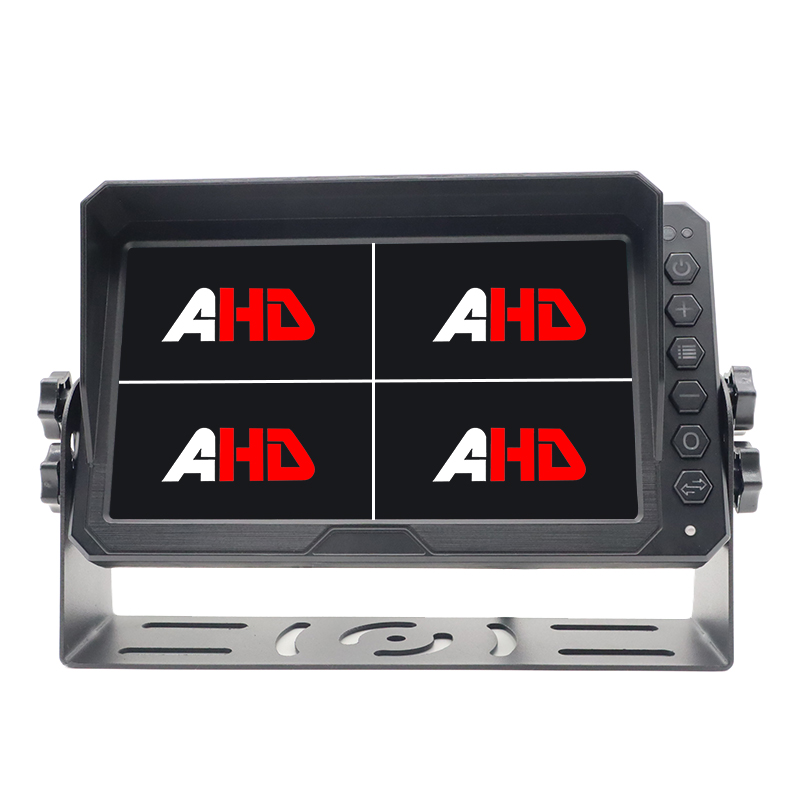

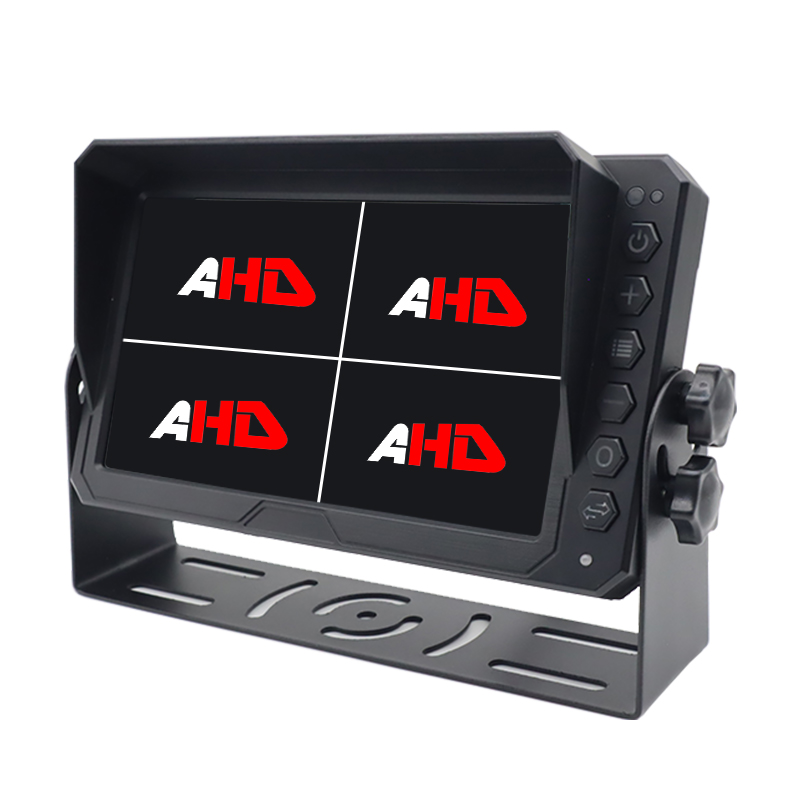

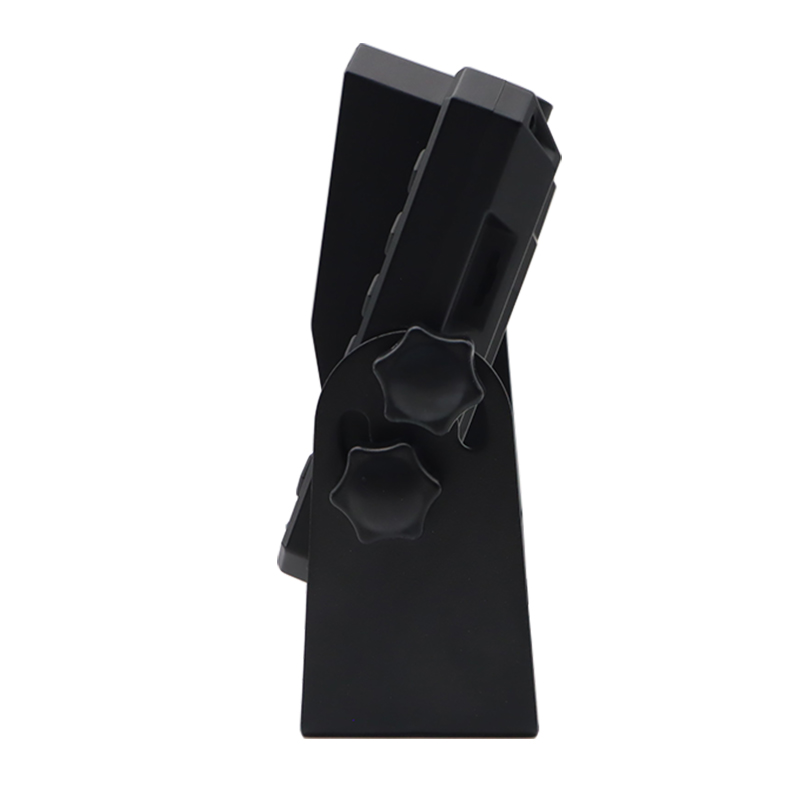

7 Inch 4CH Quad Display AHD Heavy Duty Vehicle Backup Monitor

Carleader 7 Inch 4CH Quad Display AHD Heavy Duty Vehicle Backup Monitor, a 7 inch quad splitscreen monitor displays images captured by 4 cameras, 4 channels AHD signal inputs with 4 channels trigger wires. welcome to inquiry.

Model:CL-S791AHD-Q

Send Inquiry

Product Description

Carleader 7 Inch 4CH Quad Display AHD Heavy Duty Vehicle Backup Monitor, a high-definition AHD monitor which supports multiple video inputs, allowing users to view up to four cameras simultaneously. The monitor can be used for a variety of applications including security, surveillance.

Parameter:

7 Inch 4CH Quad Display AHD Heavy Duty Vehicle Backup Monitor
Model	CL-S791AHD-Q
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 4CH AHD 1080P/720P/CVBS inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If with speaker)	Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio.
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	19.3 x 11.3 x 2.7 cm (without shade) 19.3 x 11.3 x 5.2 cm (with shade)
