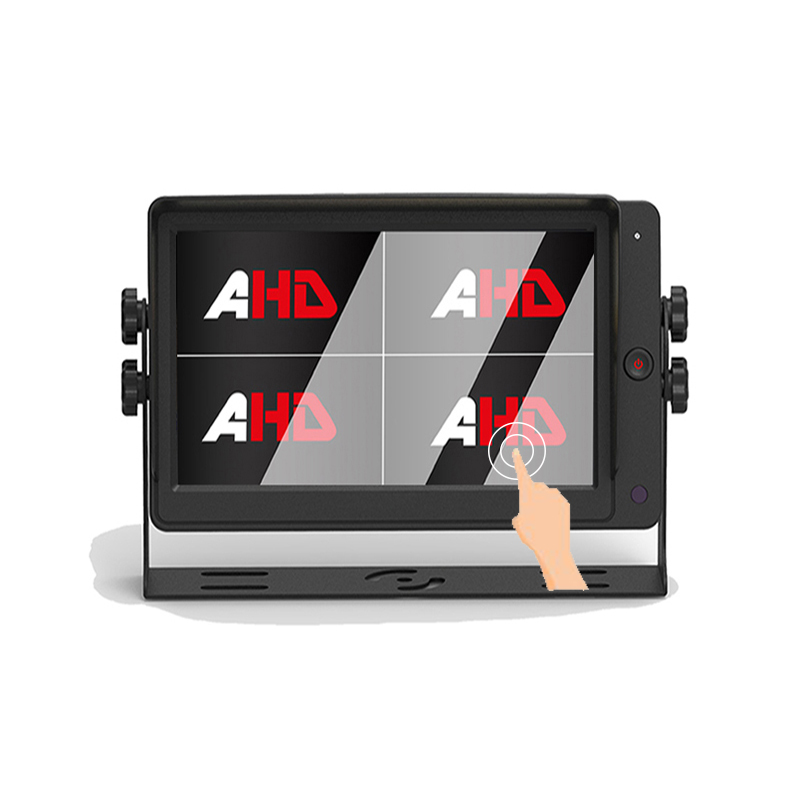

7 Inch 4CH Quad Split Display Touch Screen AHD Monitor

Carleader 7 Inch 4CH Quad Split Display Touch Screen AHD Monitor, a high-performance AHD Vehicle Monitor designed for heavy duty commercial vehicle, such as truck, bus, van, agricultural machinery and construction vehicle. 7 inch high digital panel, 16:9 image ratio, 1024 x 600 resolution, 4 channels AHD signal inputs with 4 trigger wires. welcome to send a inquiry.

Parameter:

7 inch digital TFT panel,16 : 9 image

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

Resolution :1024 x RGB x 600

Capacitive touch screen

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire. AHD2 has priority

Multiple screen modes switch

Built-in speaker optional

Auto dimming function optional

Each channel has audio function, audio can be  selected by setting

Each channel has blue screen, blue screen can be selected by setting

Brightness :450 cd/m2

Contrast : 500 : 1

8 languages OSD, remote control

Each channel has Mirror flip/ACC delay

Power supply: DC 9~32 V

Supply removable sun visor, bracket is optional

Dimension: 19.4 x 11.5 x 2.65cm( without shade)

                 19.4 x 11.5 x 6.67cm (with shade)
