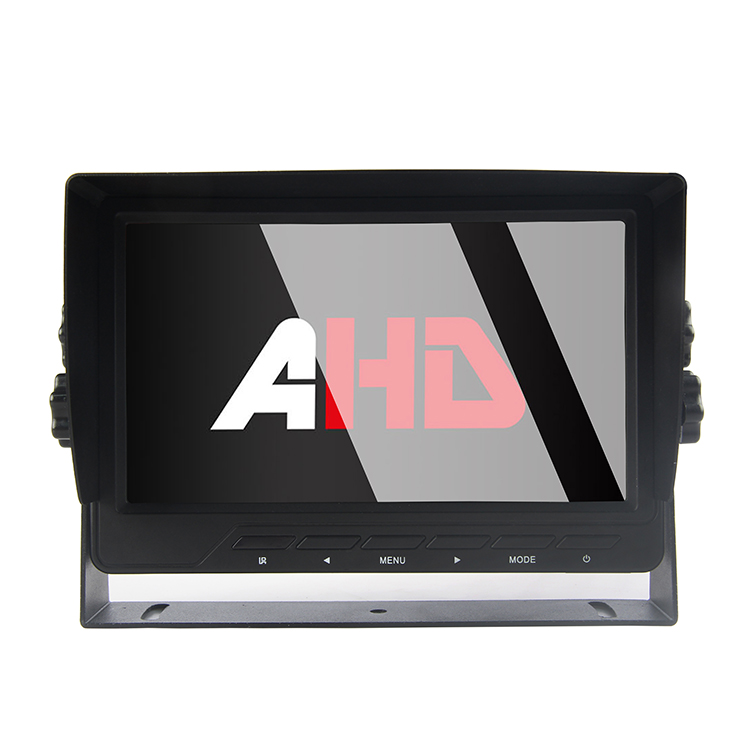

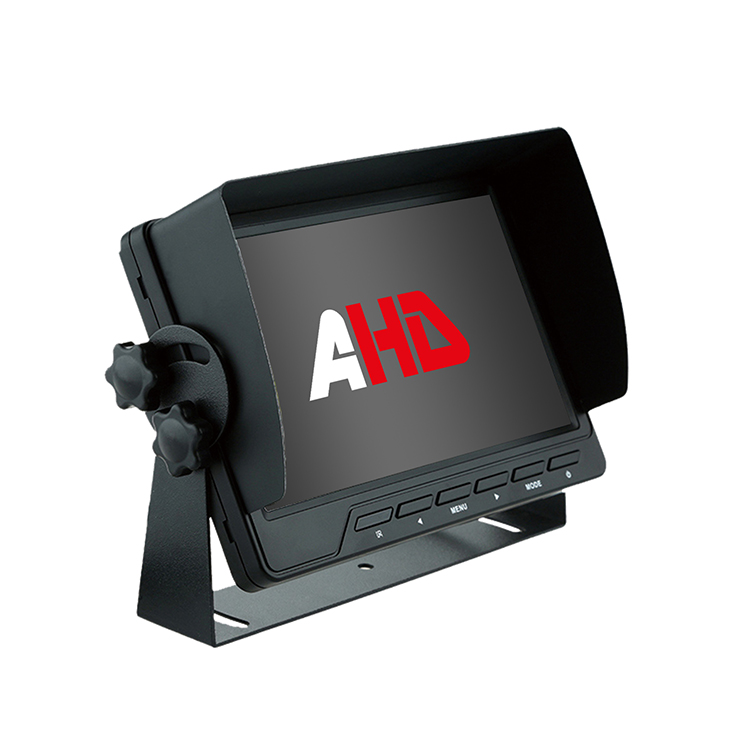

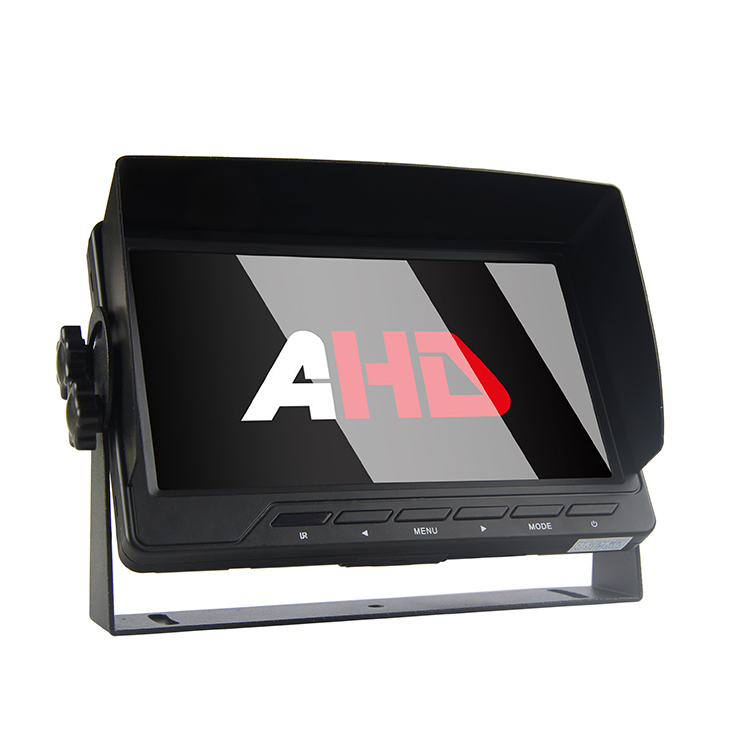

7 Inch AHD 2CH Input Vehicle Monitor

As the professional manufacturer, Carleader would like to provide you 7 Inch AHD 2CH Input Vehicle Monitor. And we will offer you the best after-sale service and timely delivery.

Model:CL-S751AHD

Send Inquiry

Product Description

Carleader 7 Inch AHD 2CH Input Vehicle Monitor, a high resolution AHD vehicle monitor which is ideal for heavy duty commercial vehicle, such as truck, bus, RV, trailer, agricultural vehicle and construction vehicle, etc. 7 inch new digital panel and 16 : 9 image ratio, with 1024 x 600 (RGB) resolution, offer driver a clear and secured driving experience.

Parameter:

7 Inch AHD 2CH Input Vehicle Monitor
Model	CL-S751AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Click buttons
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	17.8 x 12 x 2.35 cm (without shade) 17.8 x 12 x 6.35 cm (with shade)
