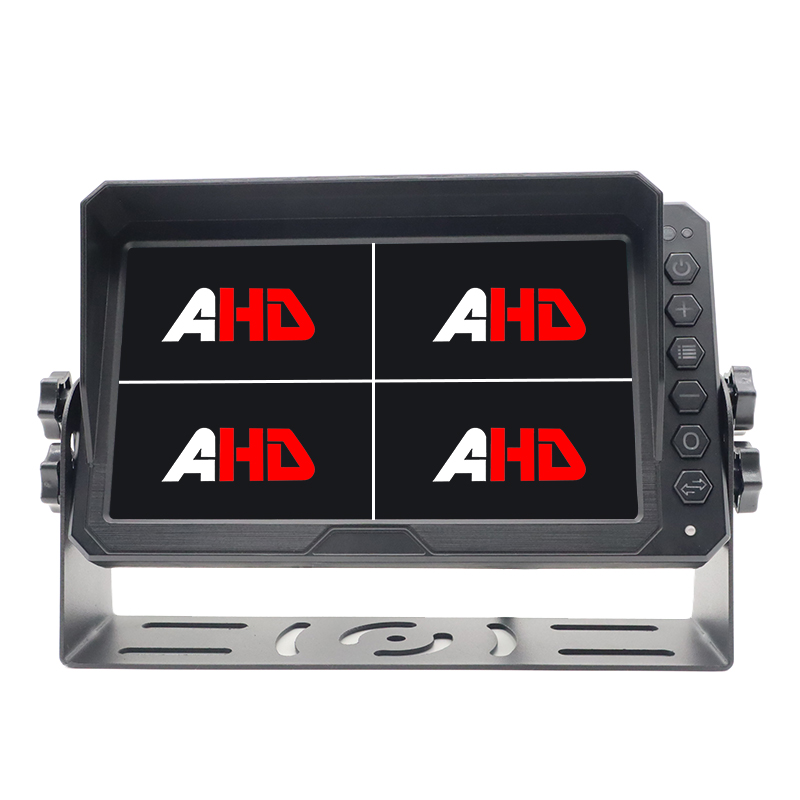

7 inch AHD Quad Rear View Car Monitor for Truck

Carleader newly launched a 7 inch AHD Quad Rear View Car Monitor for Truck.The 7 inch 4 splitscreen monitor displays images captured by 4 cameras, which provides a better visual experience than 4.3-inch/5-inch monitors.All buttons with backlights.

Model:CL-S791AHD-Q

Send Inquiry

Product Description

Carleader newly launched a 7 inch AHD Quad Rear View Car Monitor for Truck. The 7 inch split quad screen displays images captured by 4 cameras,

7 inch size screen provides a better visual experience than 4.3-inch/5-inch monitors.

The 7 inch quad car rearview monitor screen reverse display all buttons with backlights, when you are in low light conditions, you can also easily operate the menu through the button operation.

The 7 inch AHD car rearview quad monitor use new digital panel and supply removable sun visor, bracket is optional. Welcome to contact us for more details

Parameter:

7 inch AHD Quad Rear View Car Monitor for Truck
Model	CL-S791AHD-Q
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 4CH AHD 1080P/720P/CVBS inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If with speaker)	Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio.
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	19.3 x 11.3 x 5.2 cm (Undetachable sunshade)

Images:
