7 Inch AHD Vehicle Monitor with 5 Backlit Buttons and Dual Video Inputs

Product Advantages

1. Dedicated 7-Inch Vehicle Display

The 16:9 Innolux panel provides a dedicated display for compatible vehicle camera systems. Its 1024×600 resolution supports detailed viewing of camera feeds for everyday vehicle monitoring.

2. Backlit Physical Controls

Five backlit buttons provide physical access to the monitor's controls. This design is useful for drivers who prefer button operation instead of a touch-screen interface.

3. Flexible Two- or Three-Camera Input Configuration

The standard two-input version supports two camera feeds, while the optional three-input version supports an additional camera input and trigger wire. This gives fleet operators and vehicle equipment installers flexibility when planning multi-camera systems.

4. Trigger-Based Camera Switching

The trigger-wire configuration supports camera switching according to the vehicle's connected trigger signals. AHD2 has trigger priority, which should be considered when planning camera connections and switching behavior.

5. Broad Video Format Support

Support for D1, 720P and 1080P video at 25/30 fps, along with PAL/NTSC options, helps the monitor serve a range of compatible camera systems. Signal compatibility should be verified before purchase.

6. Configurable Features for Different Projects

Optional CDS auto-dimming, a built-in speaker and a fan-feet bracket allow buyers to select features according to project needs. This can help distributors and installers source a configuration that better matches their customers' requirements.

Product Parameters

Product Name: 7 Inch Car AHD Monitor with 5 Click Buttons

Display Size: 7 Inch

Panel: Digital Innolux Panel

Image Format: 16:9

Resolution: 1024 × RGB × 600

Brightness: 450 cd/m²

Contrast Ratio: 500:1

Control Buttons: 5 buttons, all with backlighting

Auto Dimming: Optional CDS function

OSD Languages: 5 languages

Remote Control: Supported

Built-in Speaker: Optional

Standard Video Inputs: 2 AHD inputs (AHD1/AHD2)

Optional Video Inputs: 3 AHD inputs (AHD1/AHD2/AHD3)

Standard Trigger Wires: 2

Optional Trigger Wires: 3

Trigger Priority: AHD2

Video Input Format: D1 / 720P / 1080P HD, 25/30 fps, PAL/NTSC

Viewing Angle: Left/Right 70°, Up 50°, Down 70°

Power Supply: DC 9V–32V

Sunshade: Detachable

Standard Bracket: Metal U-type bracket

Optional Bracket: Fan-feet bracket

Dimensions Without Sunshade: 19.4 × 11.5 × 2.65 cm

Dimensions With Sunshade: 19.4 × 11.5 × 6.65 cm

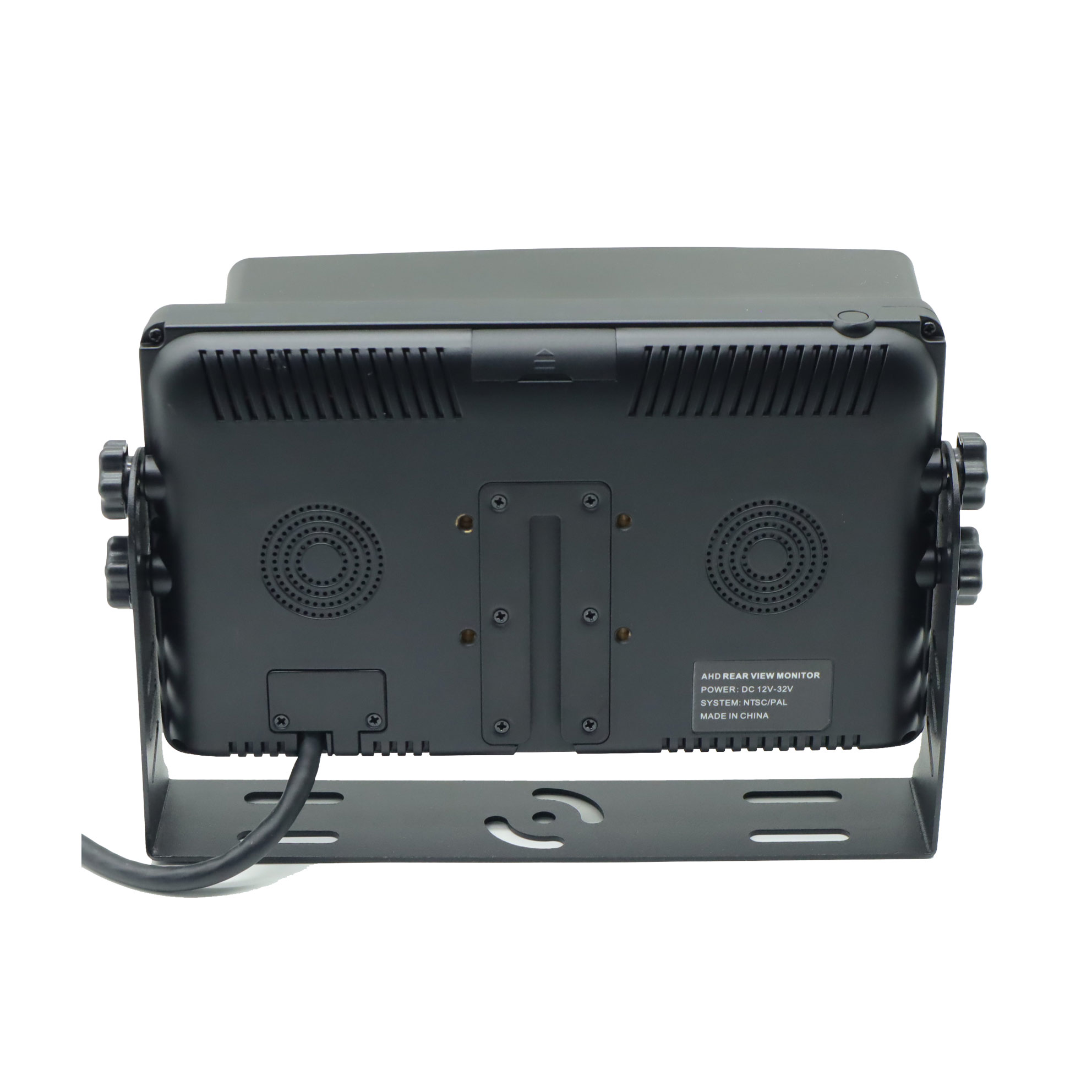

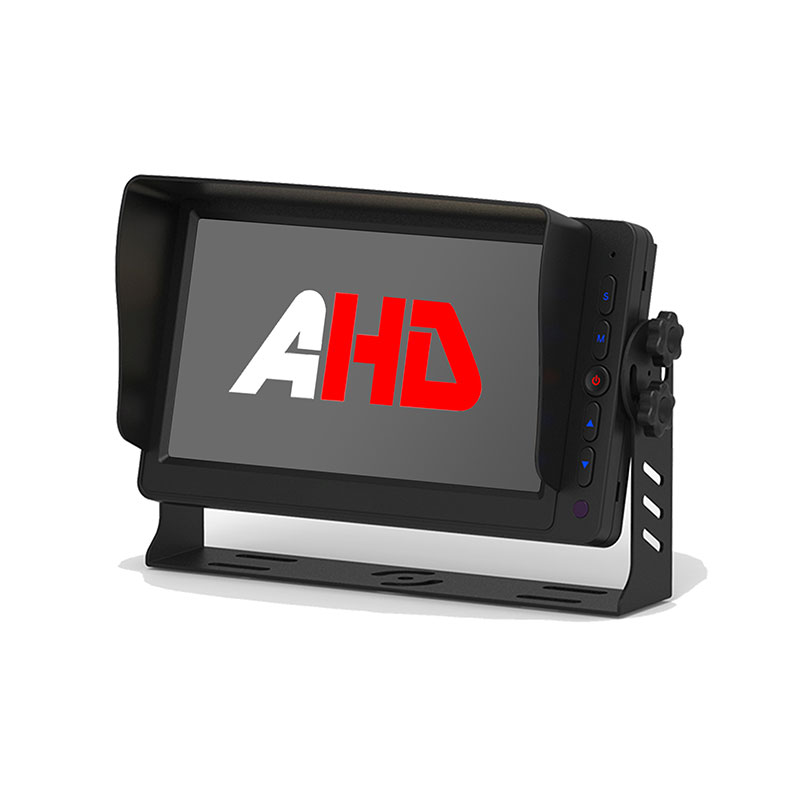

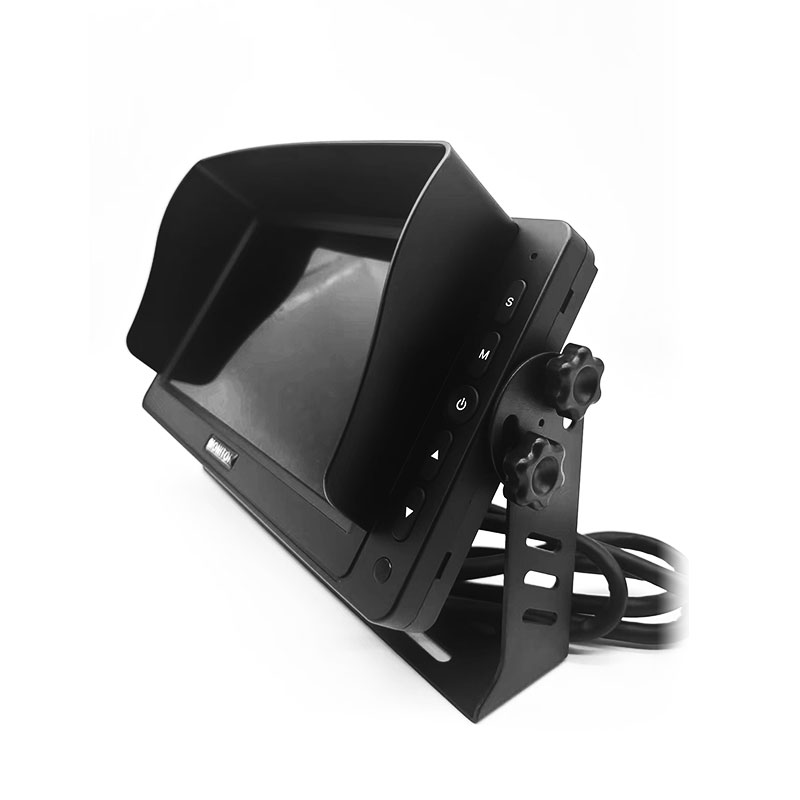

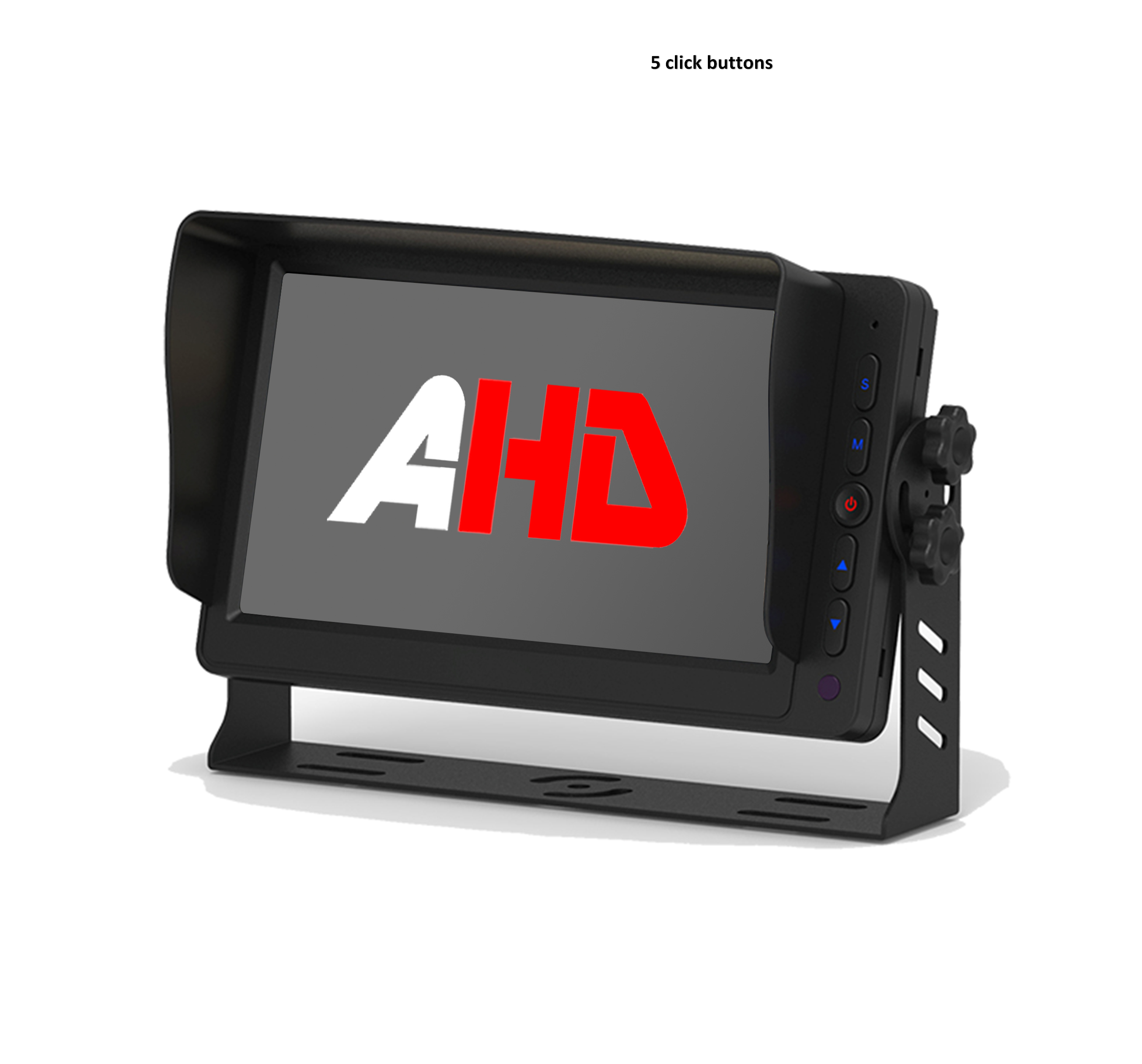

Five Backlit Physical Buttons

All five control buttons feature backlighting to improve button visibility in low-light vehicle environments. The monitor also supports a remote control and five-language on-screen display (OSD). These physical controls provide an alternative to touch-screen operation, making the monitor suitable for installations where dedicated buttons are preferred.

The standard version supports two AHD video inputs, AHD1 and AHD2, with two trigger wires. An optional version supports three AHD inputs—AHD1, AHD2 and AHD3—with three trigger wires.Standard: 2 AHD inputs + 2 trigger wiresOptional: 3 AHD inputs + 3 trigger wiresTrigger priority: AHD2This configuration is suitable for vehicle camera systems requiring rear-view and additional camera feeds. Buyers should confirm the input count and trigger wiring needed for their vehicle before ordering.

Application Scenarios

• Truck backup camera systems: Display compatible rear-view camera feeds for reversing and maneuvering.
• Commercial vans: Provide a dedicated screen for rear-view or side-view monitoring.
• Bus camera systems: Display compatible camera feeds for vehicle monitoring.
• Fleet vehicles: Support multi-camera display configurations using two or three video inputs.
• Heavy-duty vehicles: Serve as a display component in compatible AHD camera systems.
• Vehicle equipment distributors and installers: Provide standard and optional input configurations for different customer projects.

Quality Control

Depending on the selected configuration and project requirements, relevant inspections can include:

• Display startup and image presentation checks
• Video input signal compatibility checks
• 720P and 1080P video display verification
• PAL/NTSC system setting checks
• Trigger-wire switching function checks
• Physical button and remote-control operation checks
• Optional speaker function checksOptional CDS auto-dimming function checks

Power input and mounting accessory inspectionSpecific inspection requirements should be confirmed according to the selected configuration and the customer's application.

FAQ

Q1: Does this 7-inch AHD monitor support two or three cameras?

A1: The standard version has two AHD video inputs and two trigger wires. An optional version provides three AHD inputs and three trigger wires.

Q2: What video resolutions does the monitor support?

A2: It supports D1, 720P and 1080P video at 25/30 fps, with PAL/NTSC system options.

Q3: Does the monitor have physical buttons?

A3: Yes. It has five physical control buttons, all with backlighting.

Q4: Does it support a remote control?

A4: Yes. A remote control is supported.

Q5: Does the monitor support automatic brightness adjustment?

A5: An automatic dimming function using CDS is available as an option.

Q6: Is a built-in speaker included?

A6: The built-in speaker is optional. Please specify this requirement when requesting a quotation.

Q7: What is the operating voltage?

A7: The monitor supports DC 9V–32V input.

Q8: What is the trigger priority?

A8: The specified trigger priority is AHD2.

Q9: What mounting bracket is supplied?

A9: A metal U-type bracket is standard. A fan-feet bracket is available as an option.

Q10: How can I confirm compatibility with my camera?

A10: Please provide the camera's video signal, resolution, PAL/NTSC format and required number of inputs. Carleader can help check compatibility with the appropriate monitor configuration.
