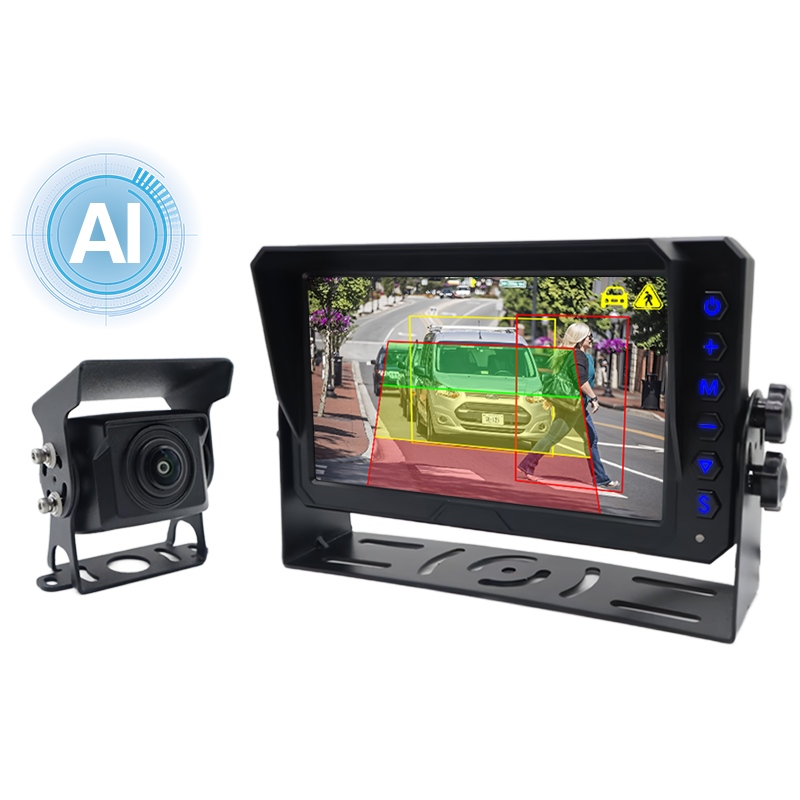

7 Inch AI BSD Blind Spot Detection Monitoring System Support AI Calibration

Carleader 7 Inch AI BSD Blind Spot Detection Monitoring System Support AI Calibration is an in-vehicle safety solution that integrates artificial intelligence, real-time monitoring and industrial-grade durability.

Model:CL-S791AHD-AICAM

Send Inquiry

Product Description

Carleader 7 Inch AI BSD Blind Spot Detection Monitoring System Support AI Calibration is designed with advanced AI high-precision algorithms and user-friendly menu cz operation. This AI camera system provides drivers with all-weather, high-precision pedestrian and vehicle dynamic warnings, effectively reducing the risk of traffic accidents. AI monitoring camera system is suitable for private cars, commercial fleets and special vehicles. The fleet AI system has strong integration and compatibility, durability and real-time monitoring capabilities.

Product Features:

Monitor Specification
Model	CL-S791AHD-AICAM
Panel	7 Inch TFT LCD
Brightness	600 cd/m2
TV System	PAL/NTSC auto swtich
Resolution	1024(H) 600(V)
View Angle	U:85 / D:85, R/L:85
Contrast	500:1
Image Ratio	16:9

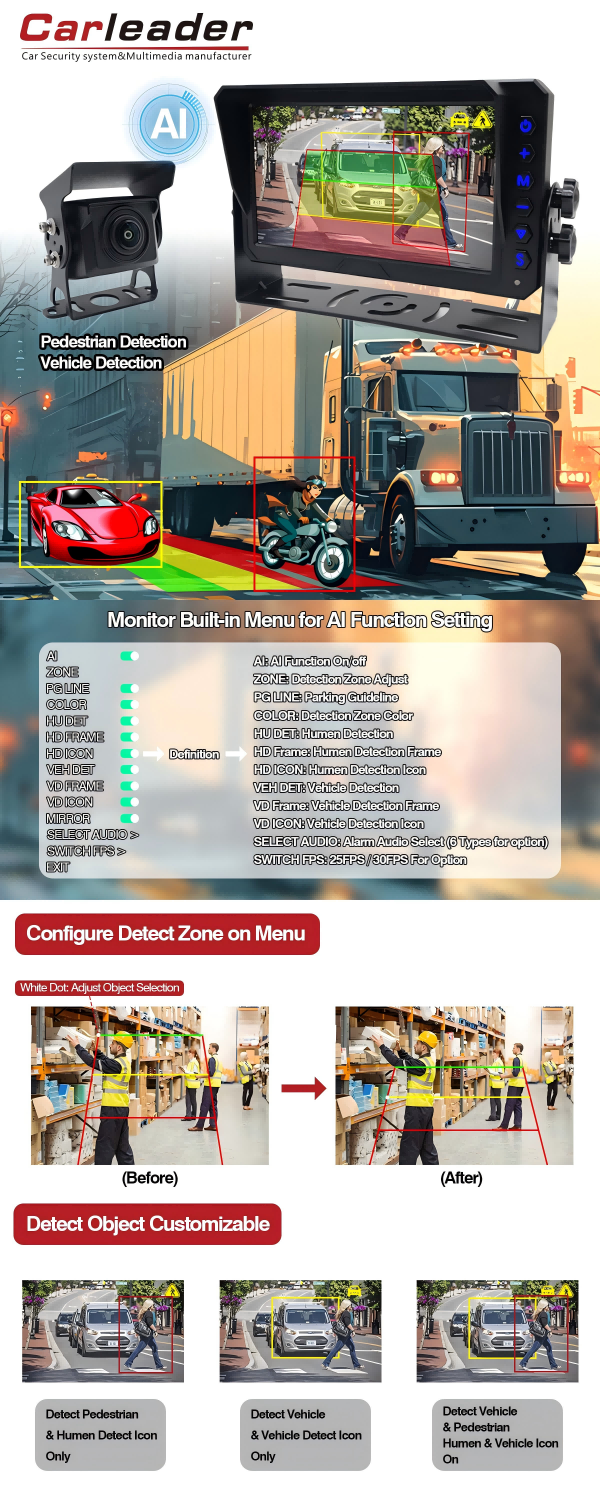

AI Calibration	1. Press & Hold “S” button, until the screen show “Control Camera OFF” 2. Press the “S” Button Again to turn "Control Camera On" 3. Wait for few seconds after the “Control Camera” disappear, 4. press “M” Button to open the AI calibration menu.
Function	Parking guide/Parking delay/Mirror
Video Input	CVBS/720P/1080P signal input
Smart Control	Monitor support AI setting
Power Protection	Anti-power reverse connection design, TVS tube protect circuit
Anti-interference Design	Optional
Power Consumption	When 12V, ≤10W (including camera)
Installation Way	U-shaped bracket and hanging bracket dual-purpose design
Power Input	DC 12-32V
Net Weight	About 400g
Size	193mm112mm25mm
Operating Temp	-20~70 ℃

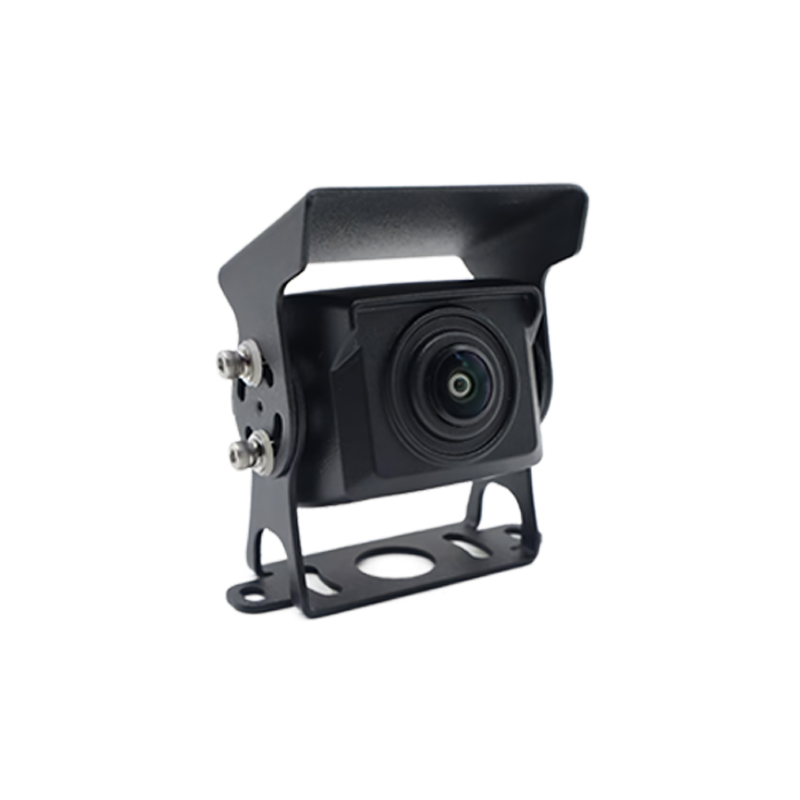

Camera Specification
Camera Image Sensor	Color AHD
TV System	PAL/NTSC
Resolution	1280*720 (1 million)
AI Algorithm	Support pedestrian & vehicle detection alarm
Detection Area	Three colors (Green, Yellow, Red) detection area
Backlight Compensation	Auto
White Balance	Auto
SNR	≤48dB (AGC on)
GAMMA Parameter	0.45
Video Input	1.0Vp-p75ohm-AHD
Viewing Angle	120° (150 °optional)
Waterproof Level	IP68
Power Supply	DC 12V (24V optional)
Power Consumption	2W
Operating Temp	-20 ~ 70℃ (RH93% Max.)
