7 Inch AI Rear View Camera System with Human and Vehicle Detection

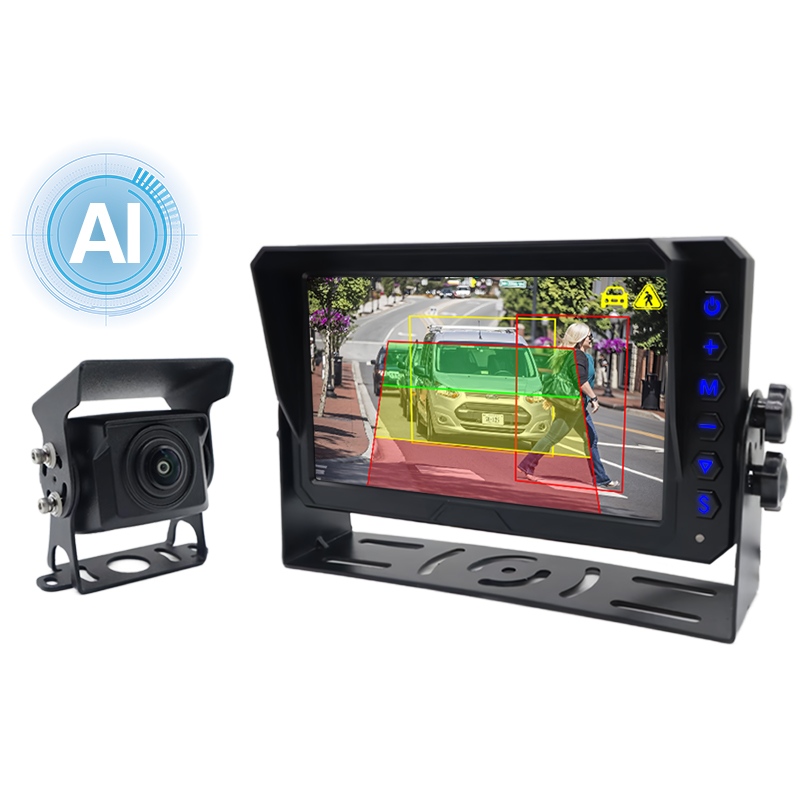

Carleader 7 Inch AI Pedestrian and Vehicle Detection Rear Camera System combines an in-vehicle monitor with AI camera detection functions to help drivers monitor the area covered by the connected camera. The 7 inch digital Innolux panel provides a 1024 × RGB × 600 resolution and a 16:9 display format. The monitor supports one-channel AHD 720P AI camera input as standard, with a two-input configuration available as an option. The built-in AI menu allows users to configure human and vehicle detection, adjust the detection zone, switch detection frames and icons on or off, and select different alarm sounds. Users can also enable or disable parking guidelines and mirror images according to their installation requirements. With a built-in speaker, 8-language OSD, remote control, and a DC 9–32V power supply, this AI rear camera system is suitable for a variety of commercial vehicle monitoring applications.

Product Features

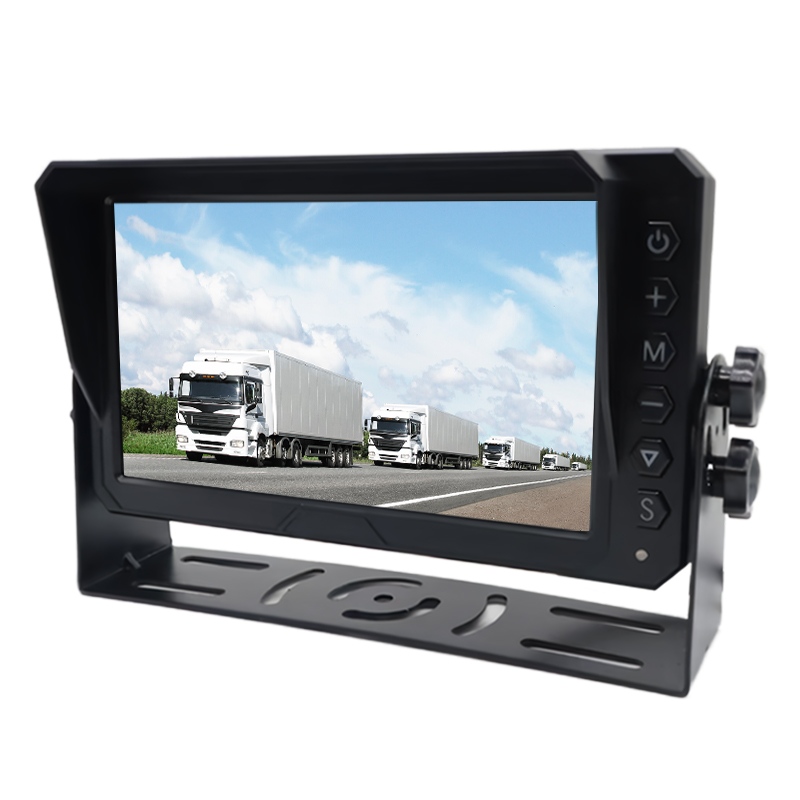

1. 7 Inch Digital Display: Innolux panel with a 16:9 image format and 1024 × RGB × 600 resolution.

2. AI Pedestrian and Vehicle Detection: Supports pedestrian detection, vehicle detection, or combined pedestrian and vehicle detection modes.

3. Adjustable Detection Zone: Allows users to configure the detection area through the monitor's built-in AI menu.

4. Customizable Detection Display: Detection zone color, detection frames, and detection icons can be switched on or off.

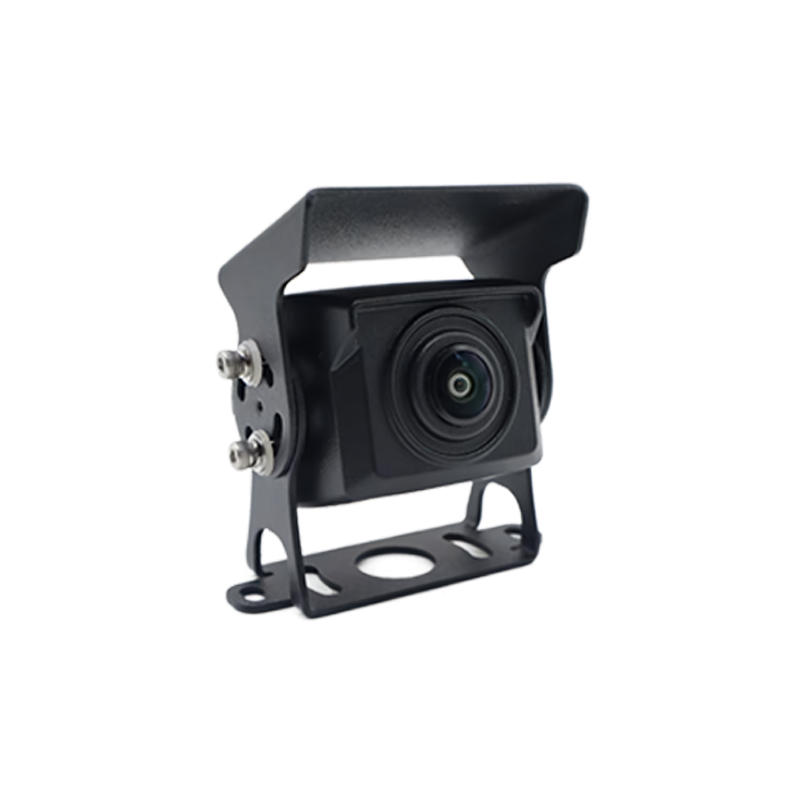

5. AHD Camera Input: One-channel AHD 720P AI camera input as standard, with two inputs available as an option.

6. Multiple Display Settings: Supports mirror image adjustment and parking guideline on/off settings.

7. Convenient AI Menu: Press and hold the "S" button for 6 seconds to access the AI settings menu.

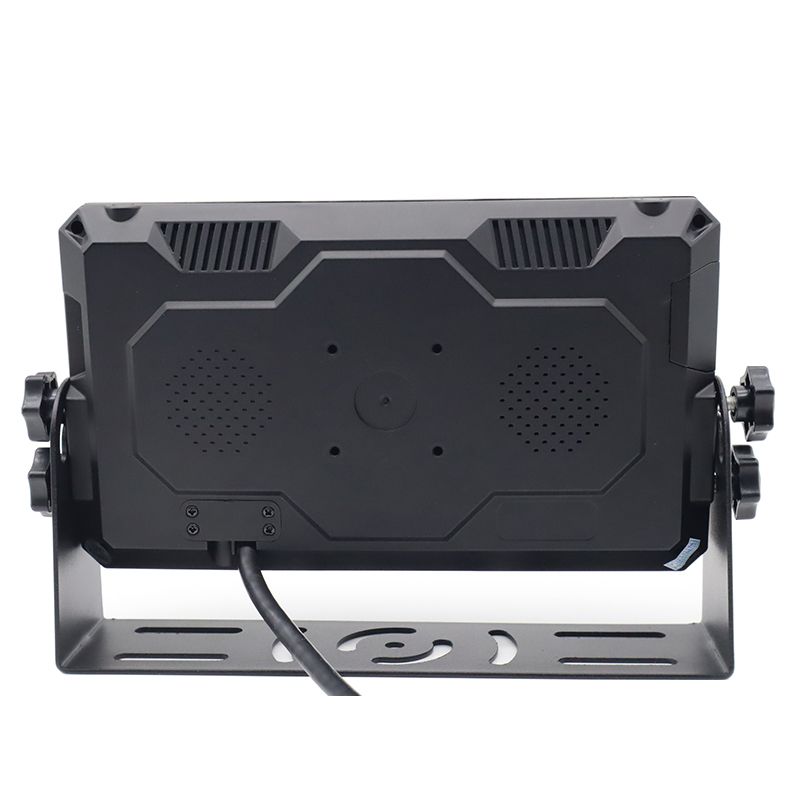

8. Durable Aluminum Alloy Chassis: 150° heat dissipation aluminum alloy chassis design.

Product Parameters

Product Name: 7 Inch AI Pedestrian and Vehicle Detection Rear Camera System

Display Size: 7 Inch

Display Panel: Digital Innolux Panel

Display Format: 16:9

Display Resolution: 1024 × RGB × 600

Standard AI Camera Input: 1 Channel AHD 720P

Optional Video Inputs: 2 Channels

Supported Video Input Format: D1 / 720P / 1080P HD

Video Frame Rate: 25FPS / 30FPS Optional

Video System: PAL / NTSC

Brightness: 450 cd/m²

Contrast Ratio: 500:1

AI Detection Modes: Pedestrian / Vehicle / Pedestrian and Vehicle

Detection Zone: Adjustable

Detection Zone Color: ON / OFF

Human and Vehicle Detection: ON / OFF

Detection Frame Display: ON / OFF

Detection Icon Display: ON / OFF

Parking Guidelines: ON / OFF

Mirror Image: ON / OFF

Alarm Audio: 6 Types Optional

Built-in Speaker: Yes

AI Menu: Built-in

AI Menu Access: Press and Hold the "S" Button for 6 Seconds

OSD Languages: 8 Languages

Remote Control: Supported

Auto Dimming: Optional, CDS Function

Chassis Material: Aluminum Alloy

Chassis Design: 150° Heat Dissipation Design

Power Supply: DC 9–32V

Sunshade: Undetachable

Standard Bracket: U Bracket

Optional Bracket: Available

Dimensions Without Sunshade: 193 × 113 × 27 mm

Dimensions With Sunshade: 193 × 113 × 52 mm

Application Scenarios

1. Commercial Trucks

AI camera monitoring for commercial truck applications where pedestrian and vehicle detection is required.

2. Heavy Duty Vehicles

Suitable for selected heavy-duty vehicle monitoring installations, subject to camera placement and system configuration.

3. Buses and Coaches

Can be used as part of an in-vehicle camera monitoring setup to assist driver awareness.

4. Construction and Working Vehicles

Suitable for selected construction and working vehicle applications where the connected camera covers relevant detection areas.

5. Fleet Safety Systems

Can be integrated into vehicle monitoring solutions for fleet operators, vehicle equipment suppliers, and professional installers.

6. Vehicle Camera Distributors and Installers

Suitable for distributors, vehicle electronics suppliers, and installers looking for an AI monitor and camera system.

Frequently Asked Questions

Q1: What is the main function of this AI rear camera system?

A1: It combines a 7 inch vehicle monitor with AI pedestrian and vehicle detection functions for supported camera configurations.

Q2: Which detection modes does the system support?

A2: Users can select pedestrian detection, vehicle detection, or combined pedestrian and vehicle detection.

Q3: Can the AI detection zone be adjusted?

A3: Yes. The detection zone can be adjusted through the monitor's built-in AI settings menu.

Q4: How do I open the AI menu?

A4: Press and hold the "S" button for 6 seconds to access the AI menu.

Q5: Can I turn off the detection frames and icons?

A5: Yes. Human and vehicle detection frames, detection icons, and detection zone color can be switched on or off through the settings.

Q6: Does the monitor support more than one camera input?

A6: One-channel AHD 720P AI camera input is standard. A two-input configuration is available as an option. Confirm the supported AI functions for the selected configuration before ordering.

Q7: Does the system have an audible alarm?

A7: Yes. The monitor has a built-in speaker and supports six optional alarm audio types.

Q8: What is the operating voltage?

A8: The monitor supports DC 9–32V power input.

Q9: Does it support automatic brightness adjustment?

A9: CDS auto-dimming is available as an optional function.

Q10: Is this system suitable for every vehicle?

A10: Suitability depends on the vehicle's power supply, camera installation position, video configuration, and required detection coverage. Please confirm the intended application before ordering.
