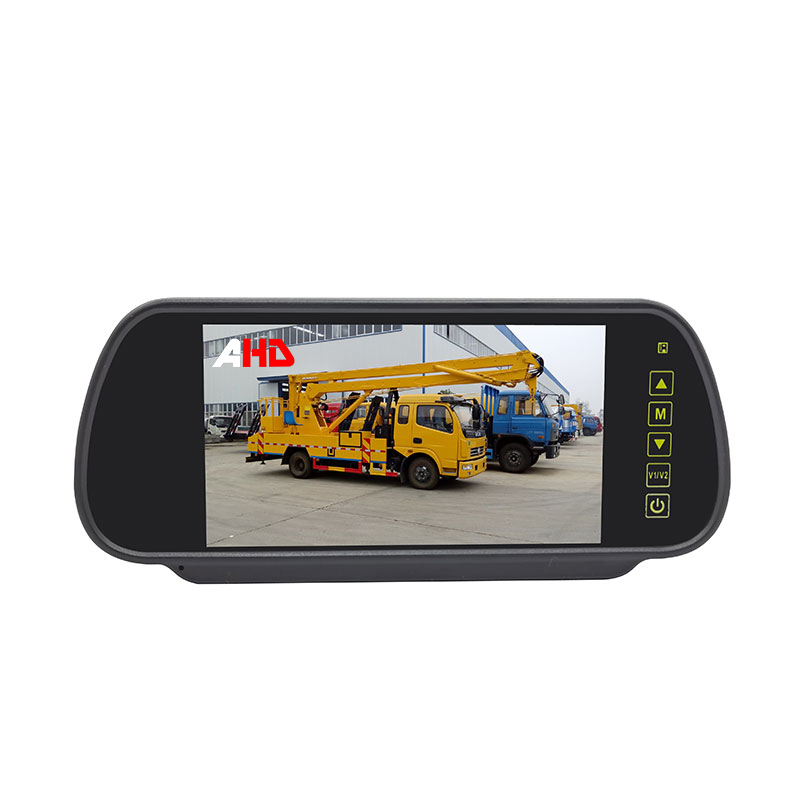

7 Inch Car Mirror Monitor AHD Digital Rear View Mirror Monitor for Truck Bus Commercial Vehicle

Carleader 7 Inch Car Mirror Monitor AHD Digital Rear View Mirror Monitor for Truck Bus Commercial Vehicle. The 7 inch car mirror monitor combines the functions of a traditional vehicle mirror and an electronic display, making it suitable for modern commercial vehicle camera systems. By connecting an AHD rear view camera, side view camera or other vehicle camera, the monitor can display real-time images around the vehicle. Compared with a conventional rear view mirror, the digital rear view mirror monitor provides a convenient way to integrate camera-based rear and side visibility into trucks, buses, vans and other commercial vehicles. The monitor features 2 video inputs with 4-pin connectors, allowing connection to two vehicle cameras. Two trigger wires are available, with trigger priority set to AHD2, making it suitable for rear view and side view camera applications.

Features

1. The 7 inch digital rear view mirror monitor provides a large and clear viewing area while maintaining a compact mirror-style design.

2. The AHD car mirror monitor supports high-definition AHD camera signals and is suitable for AHD rear view cameras, side view cameras and commercial vehicle camera systems.

3. With 2 video inputs, the monitor can connect with multiple vehicle cameras, such as a rear view camera and side view camera.

4. With 500 cd/m² brightness, the commercial vehicle monitor is designed for clear image viewing in different driving environments.

5. The monitor offers L/R 70°, U 50° and Down 70° viewing angles, providing a practical display area for vehicle camera monitoring.

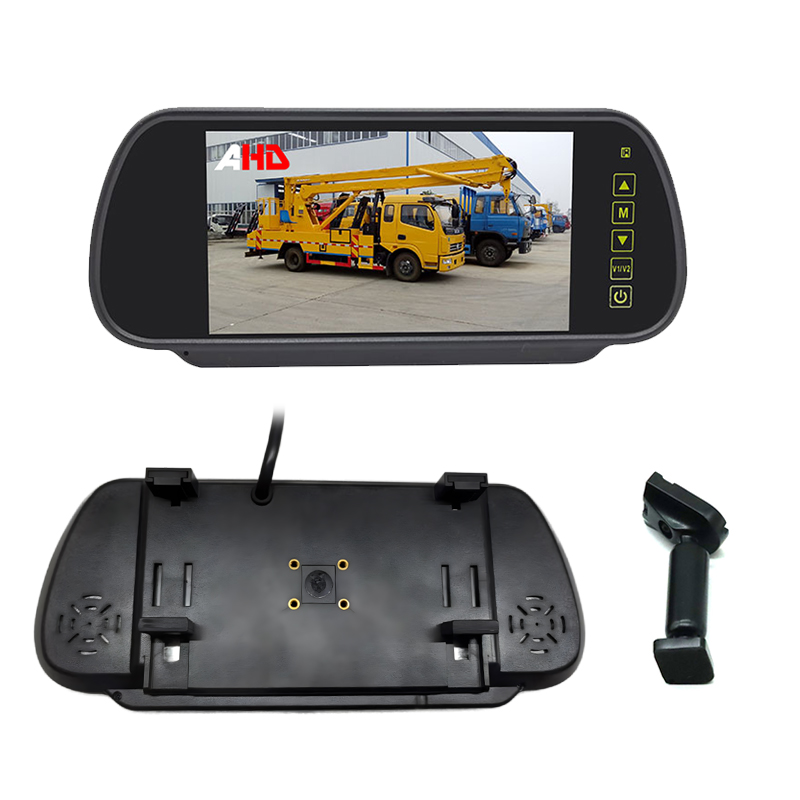

6. The car mirror monitor supports two installation methods: Stalk bracket to replace the original vehicle mirror or Clip-on bracket directly installed onto the original mirror

7. The monitor features touch buttons and multilingual OSD settings for convenient operation and configuration.

8. A built-in speaker is available as an optional configuration for specific vehicle camera applications.

Parameters

Product Name: 7 Inch Car Mirror Monitor

Monitor Type: AHD Digital Rear View Mirror Monitor

Display Size: 7 Inch

Resolution: 1024 × RGB × 600

Video Input: 2 AHD Video Inputs

Video Connector: 4-Pin Connector

Video System: PAL / NTSC

Brightness: 500 cd/m²

Contrast Ratio: 500:1

Viewing Angle: L/R: 70°, U: 50°, Down: 70°

Trigger Wires: 2

Trigger Priority: AHD2

OSD: Multilingual OSD

Control: Touch Button

Built-in Speaker: Optional

Power Supply: DC 9–32V

Installation: Stalk Bracket / Clip-on Bracket

Installation Design: 2-in-1 Design

Dimension: 24.5 × 10.5 × 2.5 cm

Application: Truck Rear View, Bus Rear View, Van Rear View, Commercial Vehicle Camera System, Fleet Vehicle Camera System

Recommended Camera Applications

The 7 inch AHD monitor can be paired with different vehicle cameras, including:

• Rear View Camera + Car Mirror Monitor

Provides real-time rear visibility for trucks, buses, vans and other large vehicles.

• Side View Camera + Digital Mirror Monitor

Can be used with side cameras to improve visibility around the vehicle.

• AHD Camera + Truck Mirror Monitor

Suitable for commercial vehicle camera systems requiring high-definition video transmission.

• Front / Rear / Side Camera System

The dual video inputs allow flexible integration with different vehicle camera configurations.

Installation Options

The 7 inch car mirror monitor provides two installation designs:

1. Option A – Stalk Bracket Installation

The stalk bracket can be used to replace the original vehicle mirror, creating an integrated digital mirror solution.

2. Option B – Clip-on Bracket Installation

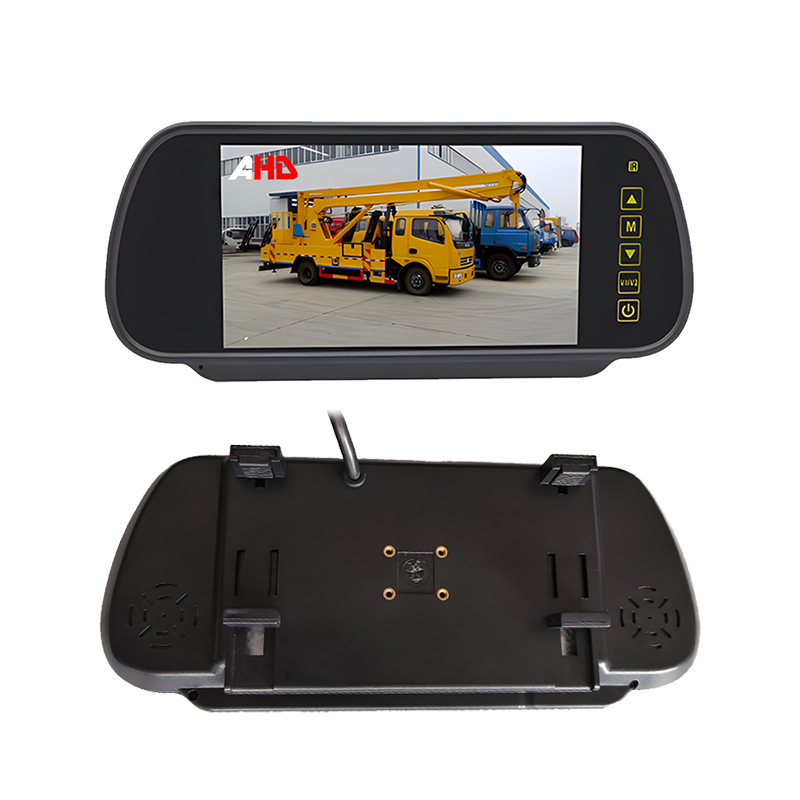

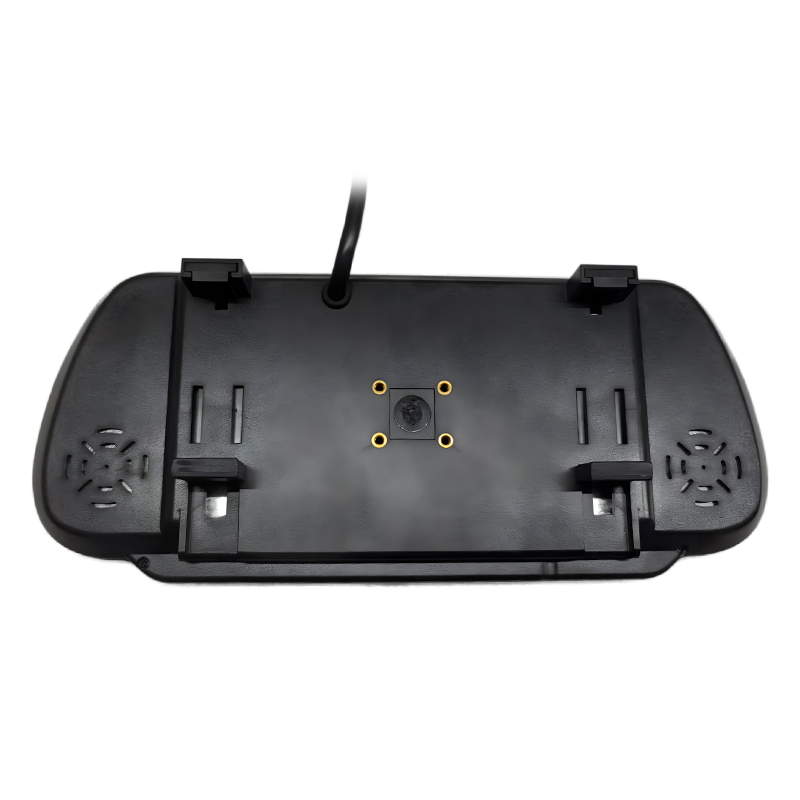

The clip-on bracket can be directly attached to the original vehicle mirror, making it convenient for vehicle retrofit projects.

Why Choose a 7 Inch Digital Rear View Mirror Monitor?

Traditional vehicle mirrors can have limitations when a vehicle has a large body, trailer or restricted rear visibility. A digital rear view mirror monitor connected to a vehicle camera can provide a more flexible rear-view monitoring solution. The 7 inch car mirror monitor is designed specifically for vehicle applications and supports DC 9–32V input, AHD video signals and dual camera connections. Its mirror-style housing also makes it suitable for replacing or upgrading conventional vehicle mirrors. For fleet operators, vehicle manufacturers, system integrators and automotive aftermarket companies, the AHD car mirror monitor can be integrated into different commercial vehicle camera systems.

FAQ

Q1: What vehicles can use this 7 inch car mirror monitor?

It can be used for trucks, buses, vans, RVs, construction vehicles, agricultural vehicles and other commercial vehicles.

Q2: Does the monitor support AHD cameras?

Yes. The AHD car mirror monitor supports AHD video input.

Q3: How many cameras can be connected?

The monitor has 2 video inputs, allowing connection to two compatible vehicle cameras.

Q4: What is the monitor resolution?

The resolution is 1024 × RGB × 600.

Q5: What is the power supply?

The monitor supports DC 9–32V, suitable for many automotive and commercial vehicle electrical systems.

Q6: Can it replace the original vehicle mirror?

Yes. It supports a stalk bracket installation for replacing the original mirror. A clip-on installation option is also available.

Q7: Can it work with a side view camera?

Yes. It can be integrated with compatible AHD side view cameras for commercial vehicle monitoring.

Q8: Is a built-in speaker available?

Yes. The built-in speaker is available as an optional configuration.
