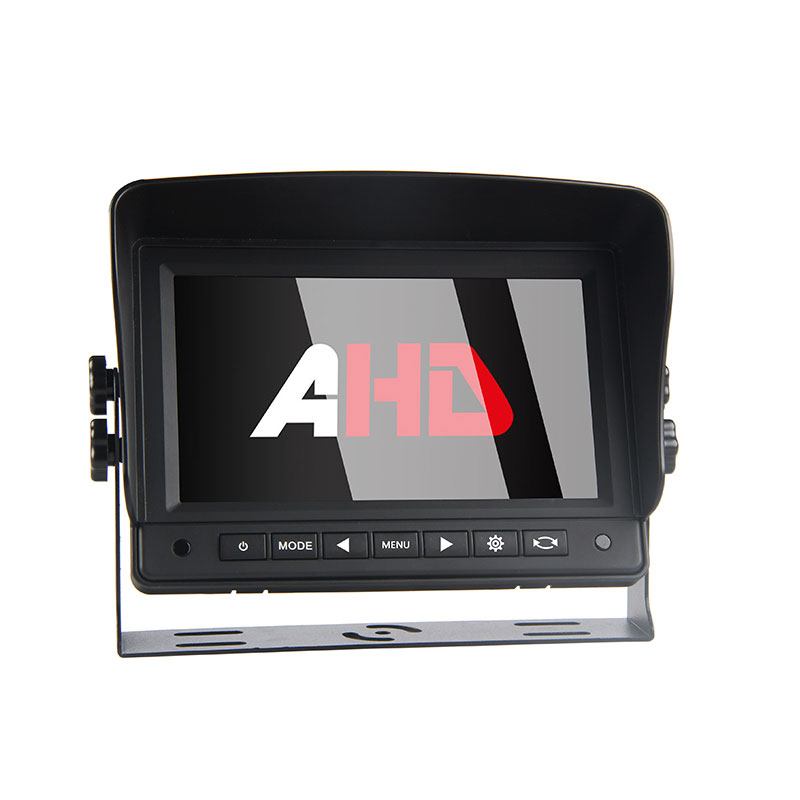

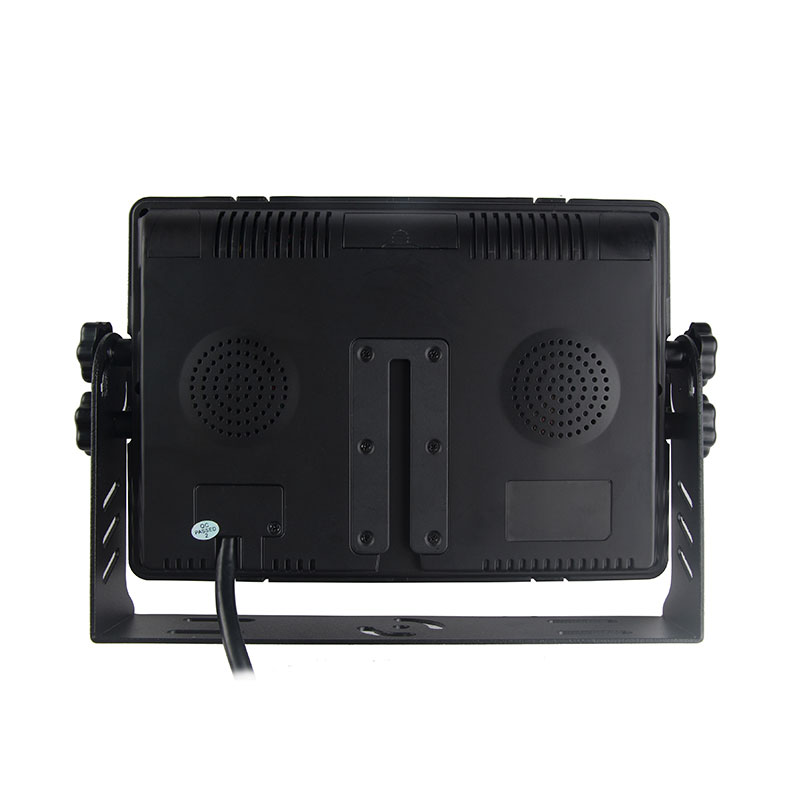

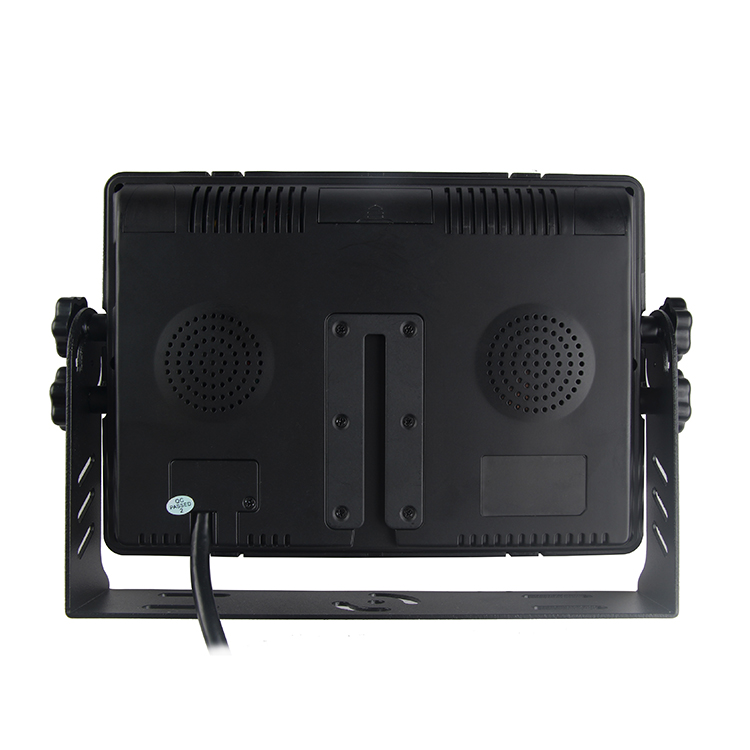

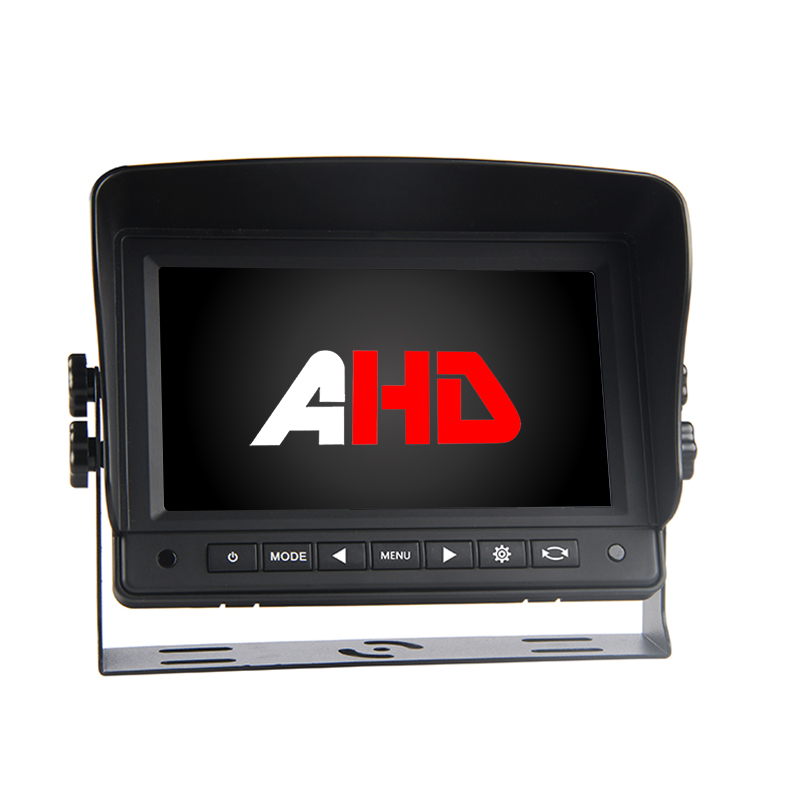

7 inch car reversing monitor digital HD video display
Welcome to buy 7 inch car reversing monitor digital HD video display from us. Every request from customers is being replied within 24 hours.
Model:CL-S760AHD
Send Inquiry
Product Description
Features:
* 7" digital panel with 16:9 image ratio, 1024 x 600 (RGB) resolution.
* 2CH AHD camera inputs, 3CH input also available.
* Video format available for AHD 720P/1080P, compatible for CVBS camera.
* 2CH / 3CH trigger wires inputs, CH2 has trigger priority, with trigger delay function to be adjust in menu.
* Built-in High quality audio speaker optional, without speaker as default.
* Full function remote control (Pack with 1x remote in the box)
* Auto Dimming function optional (Without auto dimming as default), support to adjust the screen brightness automatically base on the surrounding light intensity.
* Multi-language menu setting.
* Wide working voltage: 9~32V
Parameter:
|
7 inch car reversing monitor digital HD video display |
|
|
Model |
CL-S760AHD |
|
Screen Type |
7 inch IPS LCD panel |
|
Aspect Ratio |
16 : 9 |
|
Resolution |
1024 x 600 (RGB) |
|
Brightness |
450 cd/m2 |
|
Contrast |
500 : 1 |
|
Video Input |
Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority |
|
Speaker |
Optional (Without as default) |
|
Audio Mode (If With Speaker) |
CH1 with audio function |
|
Auto Dimming |
Optional (Without as default) |
|
Remote Control |
Yes, Package include 1x remote |
|
OSD Menu |
Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset |
|
Parking Guide Line |
Each channel is adjusted separately, activated when trigger the trigger wire (Off as default) |
|
Mirror / Normal Image |
Each channel is adjusted separately (Mirror image as default) |
|
System |
PAL / NTSC auto switch |
|
Button Type |
Click buttons, each button with backlight |
|
Power Supply |
DC 9~32V |
|
Connection Plug (Connector) |
4PIN aviation connector as default, customized to RCA connector available |
|
Operating Temperature |
-20°C~+70°C (RH0%-RH90%) |
|
Storage Temperature |
-30°C~+80°C (RH0%-RH90%) |
|
Warranty |
2 Years |
|
Dimension |
18.6 x 12.8 x 3.2 cm ( without shade) 20.2 x 14.2 x 7.7 cm (with shade) |
