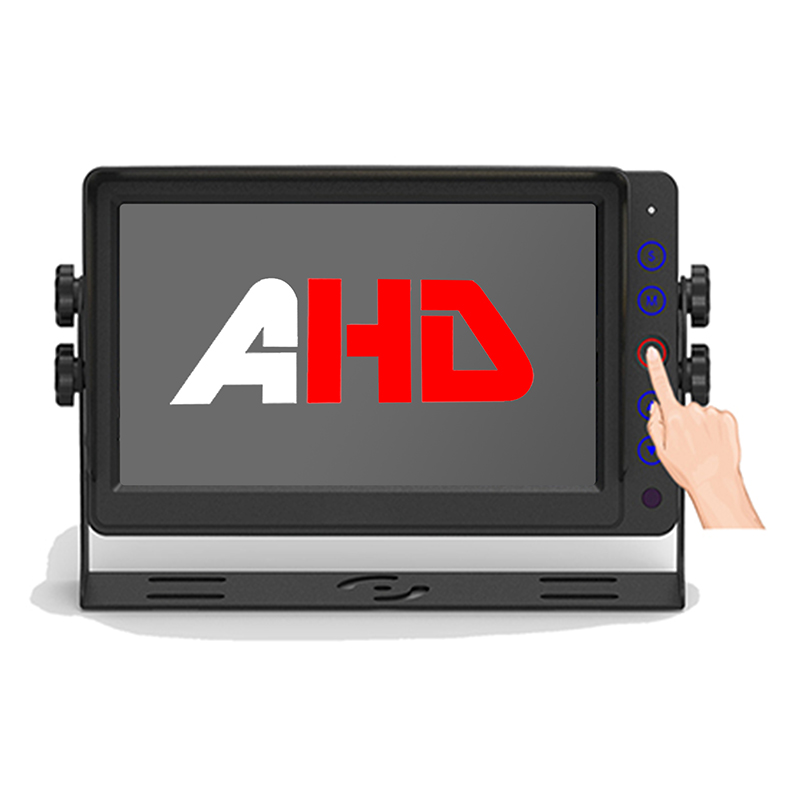

7 Inch Commercial Vehicle Monitor with AHD Video Inputs and Remote Control

The 7 Inch Car AHD Monitor is designed for vehicle camera systems requiring a compact display with flexible video input options. Equipped with a 7-inch digital Innolux panel, it delivers a 1024 × RGB × 600 resolution and a 16:9 display format for viewing compatible camera feeds. The standard configuration includes two AHD video inputs, each with a trigger wire, while a three-input version is available for projects requiring an additional camera channel. With five backlit buttons, remote control and a DC 9–32V power supply, the monitor is suitable for integration into commercial vehicle and automotive camera systems.

Product Advantages

1. 7-Inch Innolux Display Panel

The 7-inch digital Innolux panel offers a 1024 × RGB × 600 resolution and a 16:9 aspect ratio. Its compact screen size is suitable for vehicle dashboards and other in-cab monitoring installations.

2. Flexible 2-Channel or 3-Channel Inputs

The standard version provides two AHD video inputs, AHD1 and AHD2. A three-input version, including AHD3, is available as an option, allowing buyers to select the configuration according to the number of cameras required.

3. Trigger-Based Camera Switching

Trigger wires are included for each input in the selected configuration. When connected to the corresponding vehicle signals, they support automatic switching to the relevant camera view. AHD2 has trigger priority.

4. Five Backlit Buttons

All five buttons feature backlighting, making the controls easier to identify in dimly lit vehicle cabins. The monitor also supports remote control operation for added convenience.

5. Optional Automatic Dimming

An optional CDS automatic dimming function can help adjust screen brightness according to ambient lighting conditions. Buyers can select this feature based on their installation environment and project requirements.

6. Detachable Sunshade and Mounting Options

The detachable sunshade provides an additional installation option for environments with strong ambient light. A metal U-type bracket is supplied as standard, while a fan-feet bracket is optional.

7. Compatible HD Video Inputs

The monitor supports D1, 720P and 1080P HD video input formats at 25/30 fps, with PAL/NTSC options. Compatibility should be confirmed against the connected camera's output format and selected configuration.

Product Parameters

Product Name: 7 Inch Car AHD Monitor

Model: Not provided

Screen Size: 7 Inch

Display Panel: Digital Innolux Panel

Aspect Ratio: 16:9

Resolution: 1024 × RGB × 600

Control Buttons: 5 backlit buttons

Video Inputs: 2 AHD inputs standard; 3 AHD inputs optional

Video Channels: AHD1 / AHD2 standard; AHD1 / AHD2 / AHD3 optional

Trigger Wires: 2 standard; 3 optional

Trigger Priority: AHD2

Supported Video Input Formats: D1 / 720P / 1080P HD

Frame Rate: 25/30 fps

Video System: PAL/NTSC

Brightness: 450 cd/m²

Contrast Ratio: 500:1

Viewing Angle: Left/Right 70°, Up 50°, Down 70°

Automatic Dimming: Optional, CDS function

Built-In Speaker: Optional

OSD Languages: 5 languages

Remote Control: Supported

Sunshade: Detachable

Power Supply: DC 9–32V

Standard Mounting Bracket: Metal U-type bracket

Optional Mounting Bracket: Fan-feet bracket

Dimensions Without Sunshade: 194 × 115 × 26.5 mm

Dimensions With Sunshade: 194 × 115 × 66.5 mm

Application Scenarios

• Truck Camera Systems: Display compatible camera feeds in commercial vehicles.
• Bus and Coach Monitoring: Provide an in-cab display for multi-camera monitoring setups.
• Commercial Vehicle Equipment: Integrate with compatible AHD cameras in vehicle monitoring systems.
• Fleet Camera Installations: Support camera display requirements for fleet vehicles.
• Automotive Camera Systems: Suitable for installations requiring a compact 7-inch AHD display.
• Vehicle Electronics Distribution: Suitable for distributors, resellers and installers sourcing vehicle monitors with configurable video inputs.

Quality Control

Depending on the selected configuration and project requirements, relevant inspections can include:

• Display resolution and image quality checks
• Verification of two-channel or three-channel video inputs
• Compatibility checks with supported D1, 720P and 1080P video signals
• Trigger wire and AHD2 priority switching checks
• Backlit button and remote control function checks
• Optional CDS dimming function verification
• Optional built-in speaker function checks
• DC 9–32V power input verification
• Mounting bracket and detachable sunshade inspection

Inspection requirements can be confirmed according to the order configuration.

Frequently Asked Questions

Q1: How many cameras can this 7-inch AHD monitor connect to?

A1: The standard version supports two AHD video inputs. A three-input version is available as an option.

Q2: Does the monitor support 1080P cameras?

A2: The specified supported input formats include D1, 720P and 1080P HD at 25/30 fps. Please confirm compatibility with your camera's output signal before ordering.

Q3: Does it support automatic camera switching?

A3: Yes. The monitor has trigger wires for each channel in the selected configuration. AHD2 has priority.

Q4: Is automatic dimming included as standard?

A4: No. The CDS automatic dimming function is optional and should be specified when ordering.

Q5: Does the monitor have a built-in speaker?

A5: A built-in speaker is available as an optional configuration.

Q6: Can it be installed in both 12V and 24V vehicles?

A6: Yes. Its DC 9–32V power input supports typical 12V and 24V vehicle electrical systems.

Q7: Does it include a mounting bracket?

A7: A metal U-type bracket is standard. A fan-feet bracket is available as an option.

Q8: Can the monitor be customized for an OEM project?

A8: Please contact Carleader to discuss the required input channels, optional functions, mounting bracket and other project-specific requirements.
