7 Inch Dual Lens Split View MIrror Monitor System

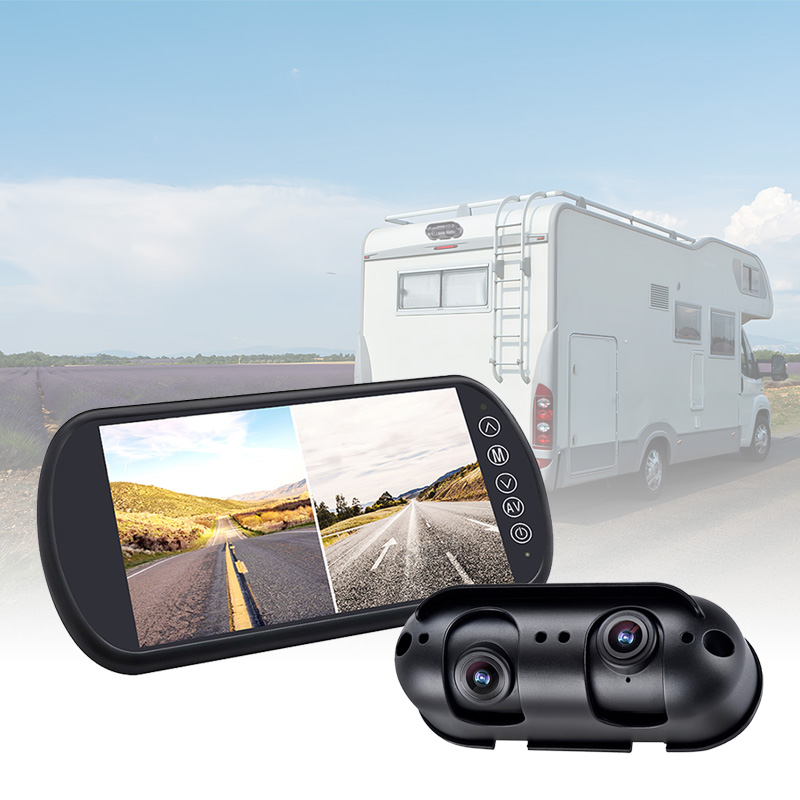

Carleader 7 Inch Dual Lens Split View MIrror Monitor System, a whole set of 1x 7 Inch two splits display rear view mirror monitor and 1x dual lens cameras, perfect for vehicle vision system.

Parameter:

Mirror Monitor:

* 7 " Car mirror monitor (AHD)

* 7 " high digital new panel ,16 : 9 image

* PAL / NTSC system

* Resolution : 1024 x RGB x 600

* 2 video 4 pin connector inputs

* Brightness : 450 cd/m2

* Contrast : 500 : 1

* View angle:L/R:70,UP:50,down:70 degree

* Multilingual languages OSD,remote control

* With 2 Trigger wires, trigger priority: AHD2

* Power supply : DC 9~32 V

* Touch button function

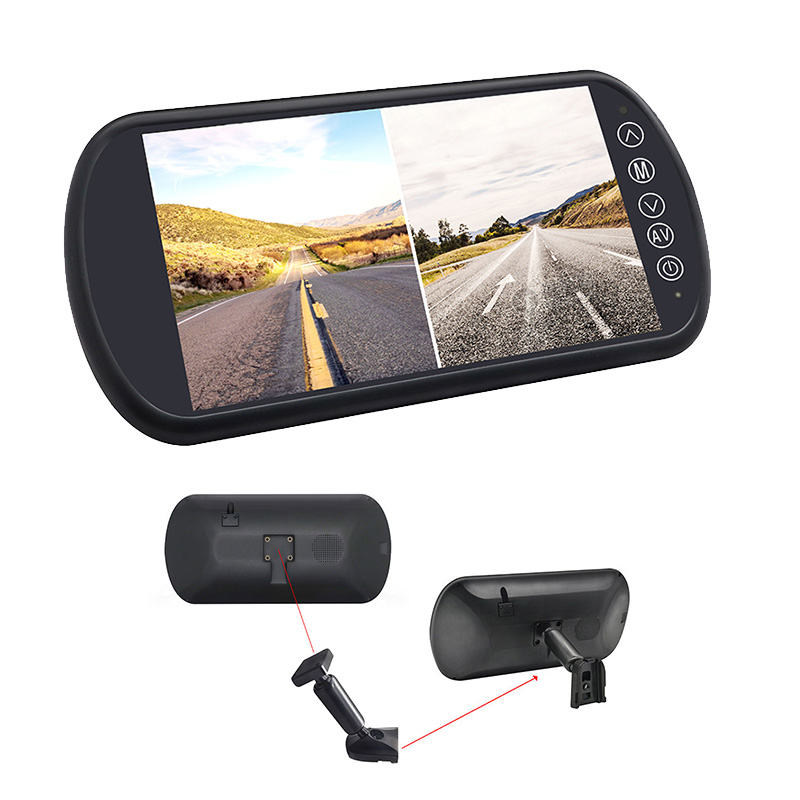

* Installation: use special bracket to replace the original mirror(stand fan feet bracket optional)

* Dimension:24.5x10.5x2.5CM

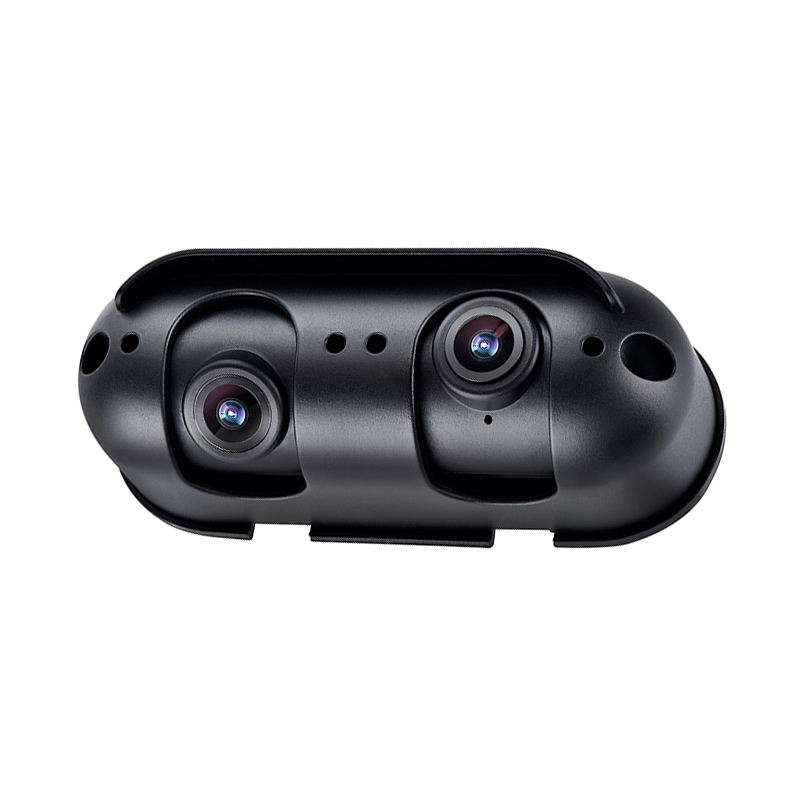

Dual Lens Camera:

Images Sensors:1/2.1

Power supply: DC12V(standard). 24V (optional)

Video Input: CVBS/AHD720P/AHD1080P optional

Mirror image & non-mirrored image (optional)

Electronic Shutter:1/65(NTSC)/1/60(PAL)-1/10,000

Lux:0 LUX (No IR LED)

Starlight Night Vision (Color image)

Lens:2.1mm

S/N ratio:≥50dB

System: PAL/NTSC optional

View Angle: 90° & 135° (Default)

Lens angle can be adjusted separately

Video Output:1.0vp-p,750hm

Housing Material: Aluminum Alloy

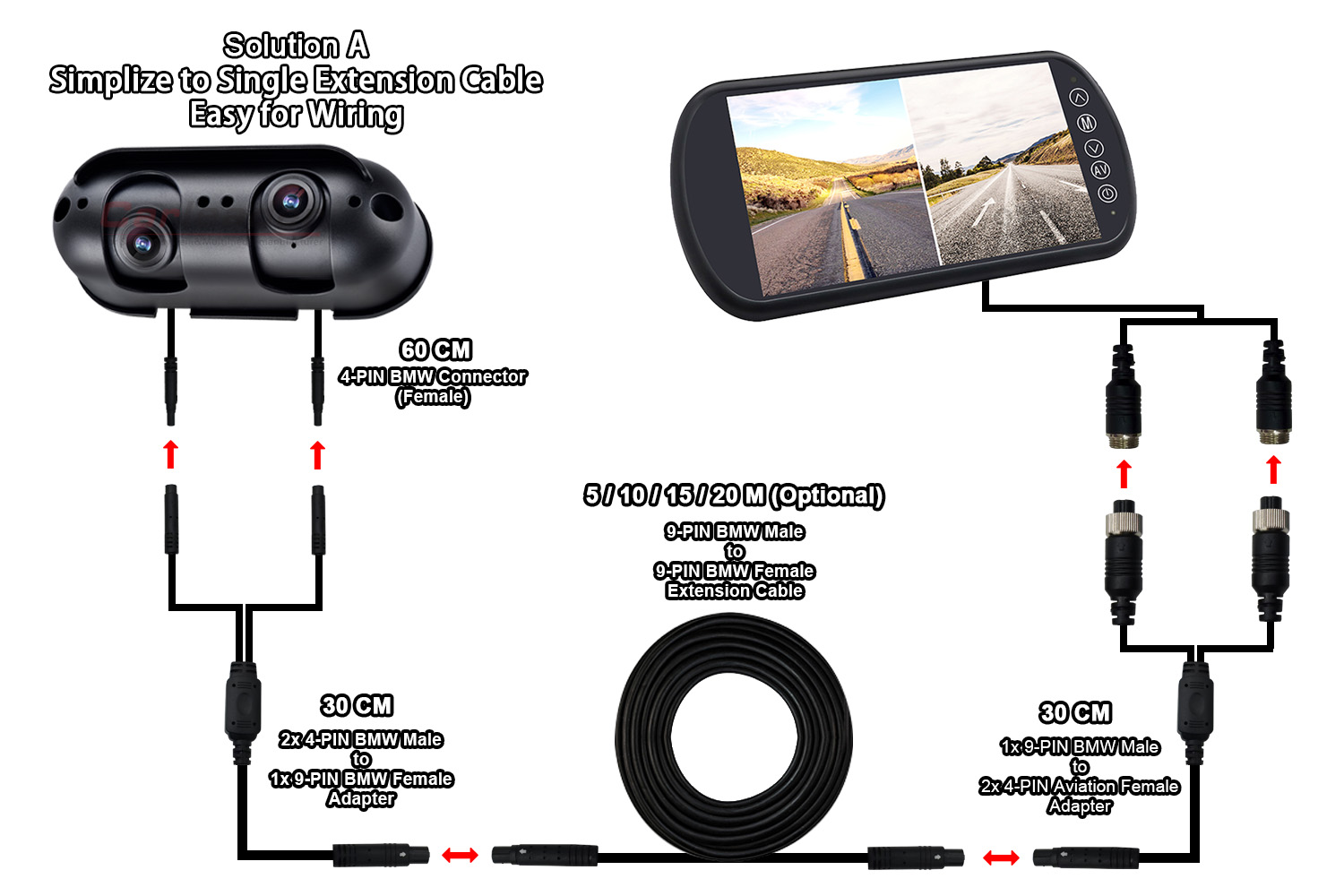

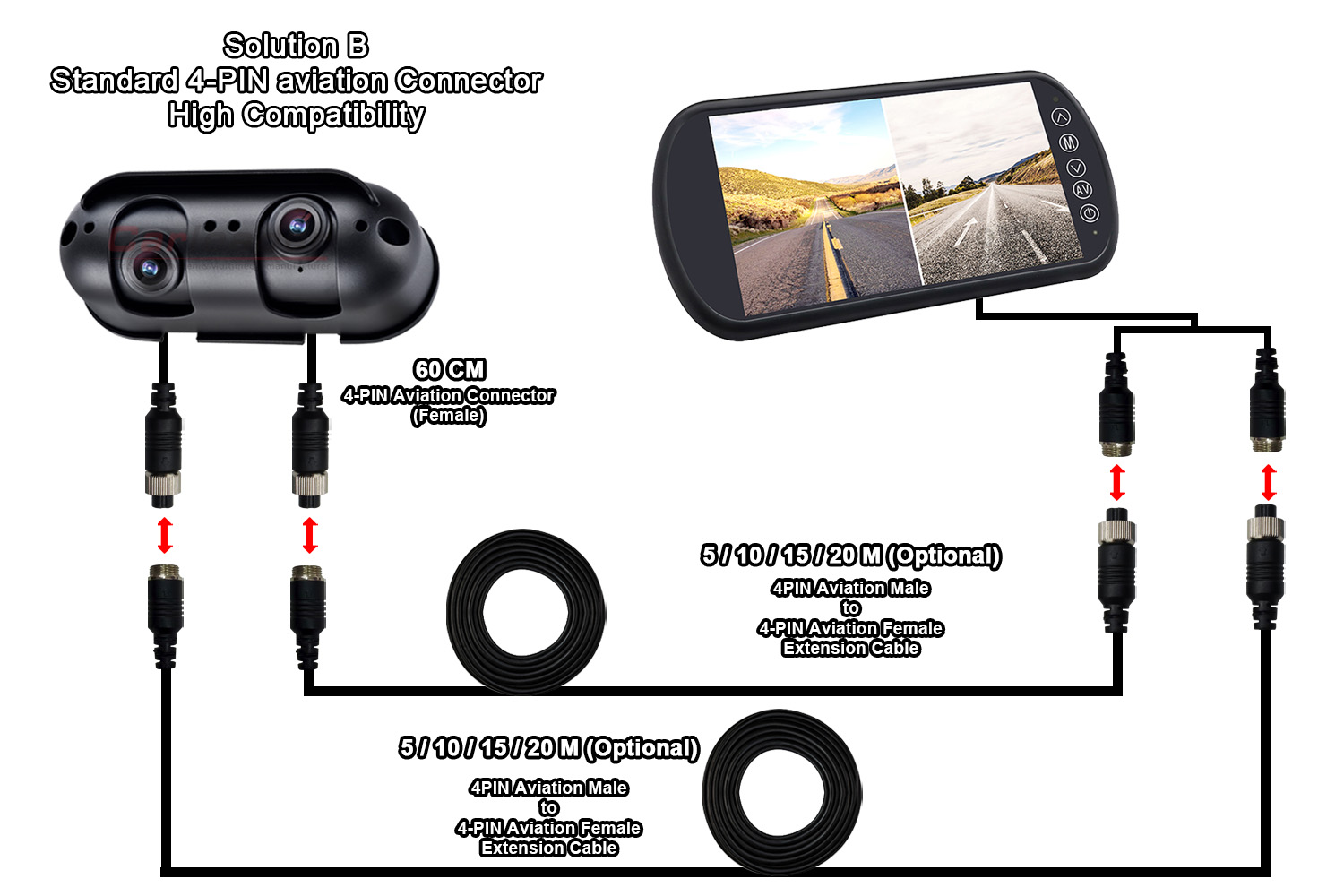

Camera Connector: two wiring solution for option.

Color: Black (Default), White (Optional)

IP Rating:IP69K

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)
