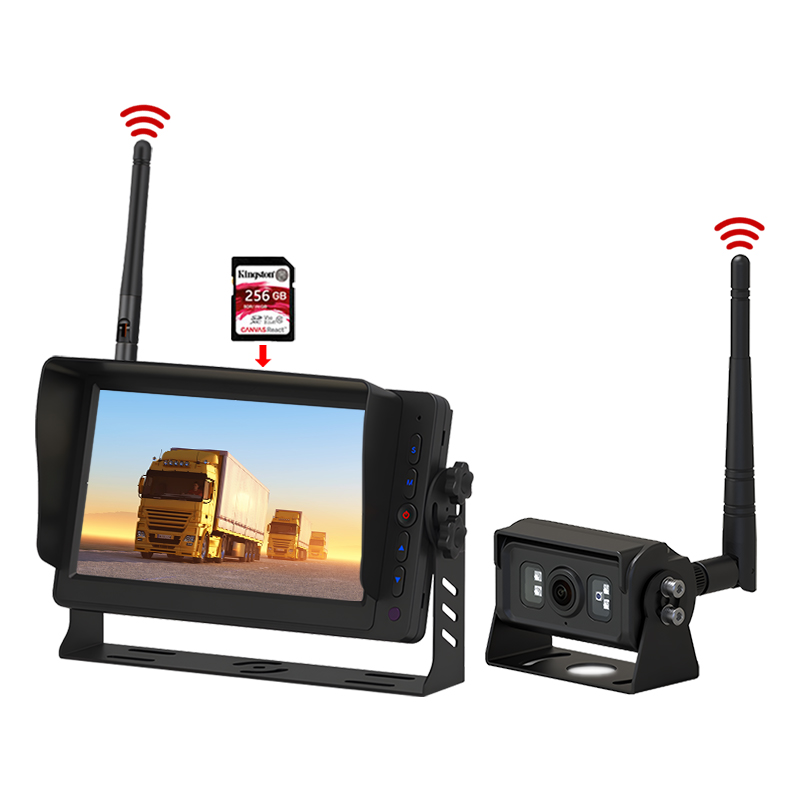

7 inch DVR Recording 2.4GHz Digital Wireless Monitoring System

Carleader 7 inch DVR Recording 2.4GHz Digital Wireless Monitoring System is a cutting-edge wireless monitor and camera system designed for commercial vehicles, including buses, trucks, trailers, and cranes. Combining high-resolution imaging, robust durability, and versatile connectivity, this system ensures enhanced safety and visibility in demanding environments.

Key Features:

1. 7-Inch High-Resolution Display: Enjoy crisp 16:9 imaging with a resolution of 1024×RGB×600 and 450 cd/m² brightness, ensuring clarity even in bright conditions.

2. Long-Range Wireless Connectivity: 7 inch DVR Recording 2.4GHz Digital Wireless Monitoring System Built-in 2.4G transmitter (camera) and receiver (monitor) enable stable video transmission up to 80–120 meters.

3. Expandable Inputs: 7 inch DVR Recording 2.4GHz Digital Wireless Monitoring System Default 1 wireless video input, with optional expansion to 2/3/4 720P camera inputs for Single / Dual / Quad display monitoring.

4. Auto-Pairing Technology: Hassle-free setup with automatic camera-to-monitor pairing.

Specification:

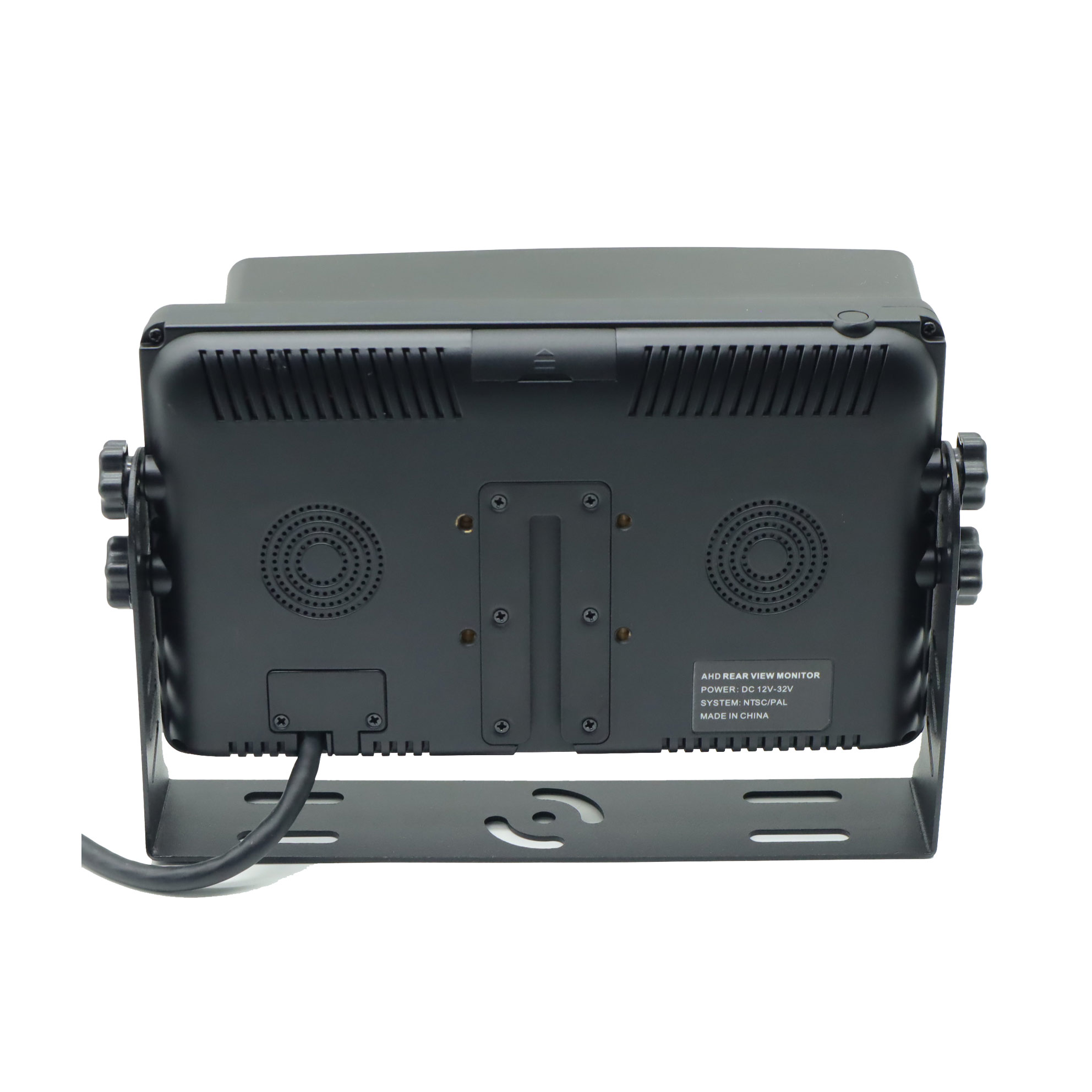

7'' Digital new panel, 16:9 Image

Auto dimming function(optional) Remote control

Built-in 2.4G wireless receiver in monitor

1 wireless video input (Default)

2/3/4 wireless video inputs optional, support split display

Support DVR Recording function, SD Card Storage, Up to 256GB

Receiving Sensitivity: -85dBm

Power consumption:<10W

Wireless distance: 80-120m

Pairing: Auto

Built-in Speaker (Optional)

Resolution: 1024*RGB*600

Brightness : 450 cd/m2

Shockproof level:4G

All buttons with background lights.

PAL/NTSC automatic switch

Power supply: DC 9V-32V

Operating temperature: -20℃- 70℃

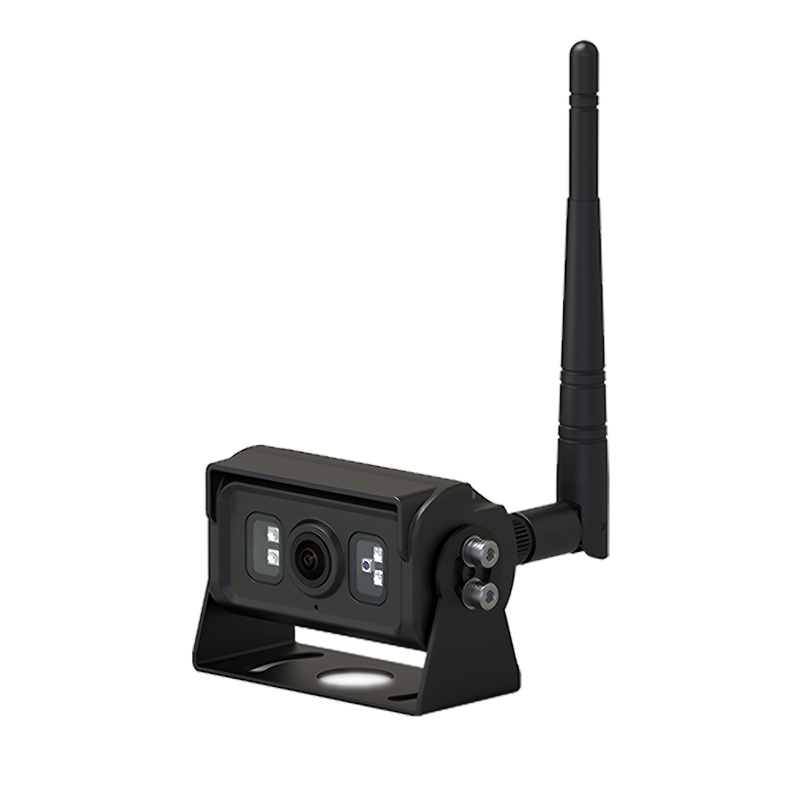

Camera: Image sensor:1/2.9" AHD

Camera built-in 2.4G wireless transmitter

2.4G transmission distance:80~120m

2.4G frequency point: 2400 ~ 2483.5MHz

Effective pixels: 720P

View Angle: 130° (default), 150° (Max.)

Waterproof: IP69

Mirror/Normal image optional

4 IR LED, support night Vision.

Material: aluminum alloy

Working power supply: DC12V-24V

Working temperature: -20 ° C ~ +70 ° C

Application: bus, truck, trailer, cranes and other commercial vehicles
