7 Inch HDMI Vehicle Monitor with Dual AV Inputs, Reverse Trigger and Built-in Speaker

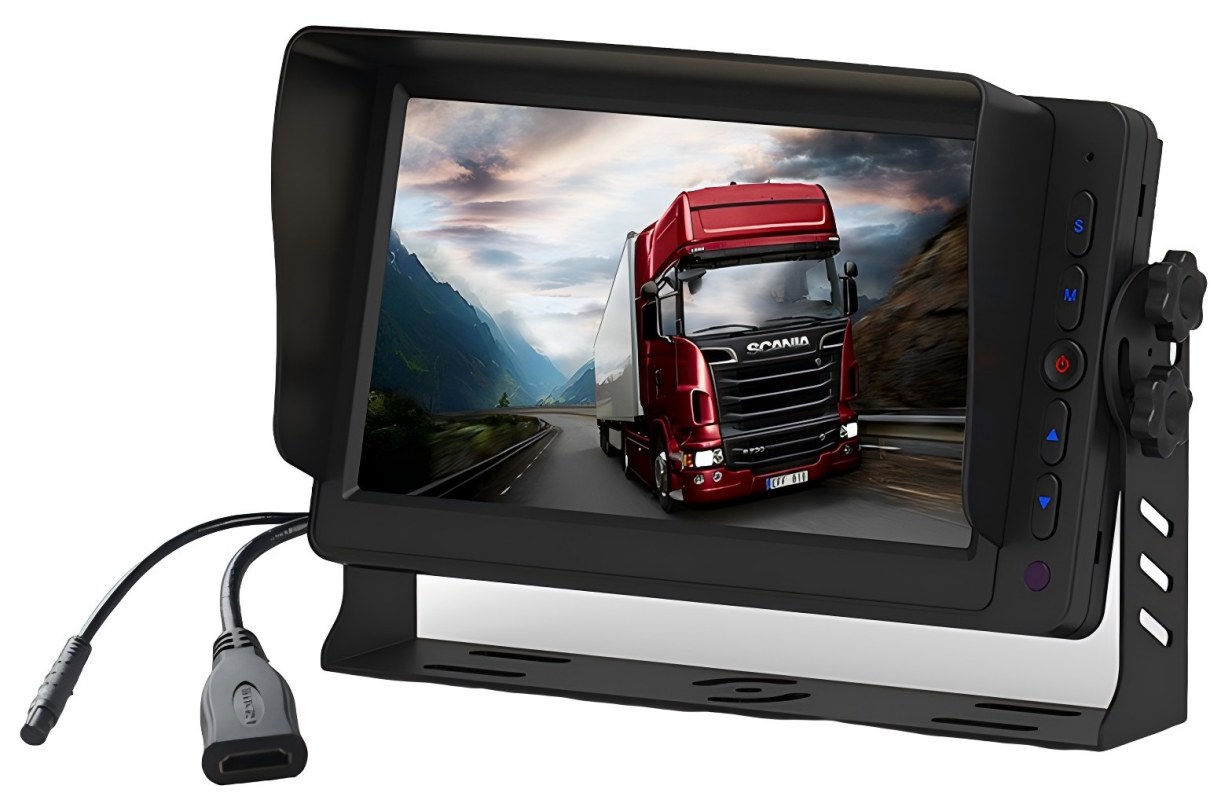

Carleader 7 Inch HDMI Vehicle Monitor with Dual AV Inputs, Reverse Trigger and Built-in Speaker. The 7 Inch High Resolution Monitor with HDMI is designed for vehicle installations requiring multiple video input options in a compact display. In addition to two RCA AV inputs, the monitor includes an HDMI input for compatible high-resolution video sources. An optional VGA input is available for projects that require another connection interface. With its 16:9 screen, 1024×600 resolution and reverse trigger function, this monitor can be integrated into compatible vehicle monitoring setups, including rear-view camera systems and applications using external HDMI video equipment.

Product Parameters

Product Name: 7 Inch High Resolution Monitor with HDMI

Display Size: 7 Inch

Panel: Digital HD Panel

Image Format: 16:9

Resolution: 1024 × RGB × 600

Video System: PAL/NTSC

AV Inputs: 2 AV inputs with RCA connectors

HDMI Input: Supported

VGA Input: Optional

Reverse Trigger Function: Switches to V2 when reversing

Brightness: 450 cd/m²

Contrast Ratio: 500:1

Viewing Angle: Left/Right 70°, Up 50°, Down 70°

OSD Languages: 8 languages

Remote Control: Supported

Built-in Speaker: Supported

Power Supply: DC 9V–32V

Sunshade: Detachable

Standard Bracket: Metal U-type bracket

Optional Bracket: Stand bracket

Dimensions Without Sunshade: 18.5 × 12.8 × 3.0 cm

Dimensions With Sunshade: 20.4 × 14.1 × 7.8 cm

Product Advantages

1. HDMI and Analog Video Connectivity

The combination of HDMI and two RCA AV inputs allows the monitor to be evaluated for different video sources. An optional VGA input adds further flexibility for projects requiring that interface.

2. Dedicated Reverse Trigger Switching

The reverse trigger function switches the monitor to V2 when reversing. This is useful for compatible rear-view camera installations where automatic display switching is required.

3. Compact 7-Inch Display

The 1024×600 resolution and 16:9 screen provide a compact display solution for vehicle monitoring and compatible video applications without requiring a larger dashboard screen.

4. Built-In Audio Output

The integrated speaker supports audio output from compatible sources, reducing the need for a separate external speaker in installations where the built-in audio function meets the application requirements.

5. Multi-Language Operation

The eight-language OSD and remote control support convenient operation for users in different markets and installation environments.

6. Flexible Project Configuration

With HDMI, dual AV inputs and optional VGA, the monitor can be considered for vehicle camera systems and other compatible video display applications. Buyers can specify their preferred connection interface and mounting requirements when requesting a quotation.

HDMI Input for High-Resolution Images

The HDMI input supports connection to compatible HDMI video sources, providing an alternative to conventional analog video connections. The monitor also includes two AV inputs with RCA connectors, allowing compatible analog video devices to be connected. VGA input is available as an optional feature.HDMI inputTwo AV inputs with RCA connectorsOptional VGA inputPAL/NTSC system supportPlease confirm the source device's output resolution and signal format before ordering to ensure compatibility.

• Vehicle rear-view camera systems: Display compatible rear-view video, with V2 switching through the reverse trigger.
• Commercial vehicles: Provide a dedicated 7-inch screen for compatible vehicle video sources.
• Truck and van monitoring: Support installations requiring HDMI or RCA AV connectivity.
• Vehicle equipment integration: Connect compatible HDMI video devices or analog AV sources.
• Special-purpose vehicles: Evaluate the monitor for installations requiring a compact display and optional VGA input.
• Vehicle electronics distributors and installers: Offer a monitor configuration with multiple video interfaces and mounting options.

FAQ

Q1: Does this 7-inch monitor support HDMI input?

A1: Yes. The monitor includes an HDMI input for compatible video sources.

Q2: How many AV inputs does it have?

A2: It supports two AV inputs with RCA connectors.

Q3: Does it support VGA input?

A3: VGA input is available as an optional feature.

Q4: What happens when the vehicle reverses?

A4: The reverse trigger function switches the display to V2 when reversing, provided the trigger signal and wiring are connected appropriately.

Q5: What is the screen resolution?

A5: The monitor has a resolution of 1024×RGB×600 with a 16:9 image format.

Q6: Does the monitor have a built-in speaker?

A6: Yes. A built-in speaker is specified.

Q7: What is the operating voltage?

A7: The monitor supports DC 9V–32V input.

Q8: How many OSD languages does it support?

A8: It supports eight OSD languages and also includes remote control operation.

Q9: Does it include a mounting bracket and sunshade?

A9: A metal U-type bracket and detachable sunshade are specified. A stand bracket is available as an option.

Q10: Can I connect any HDMI device to the monitor?

A10: The source device must provide a compatible HDMI signal. Please confirm its output resolution and signal format before ordering.
