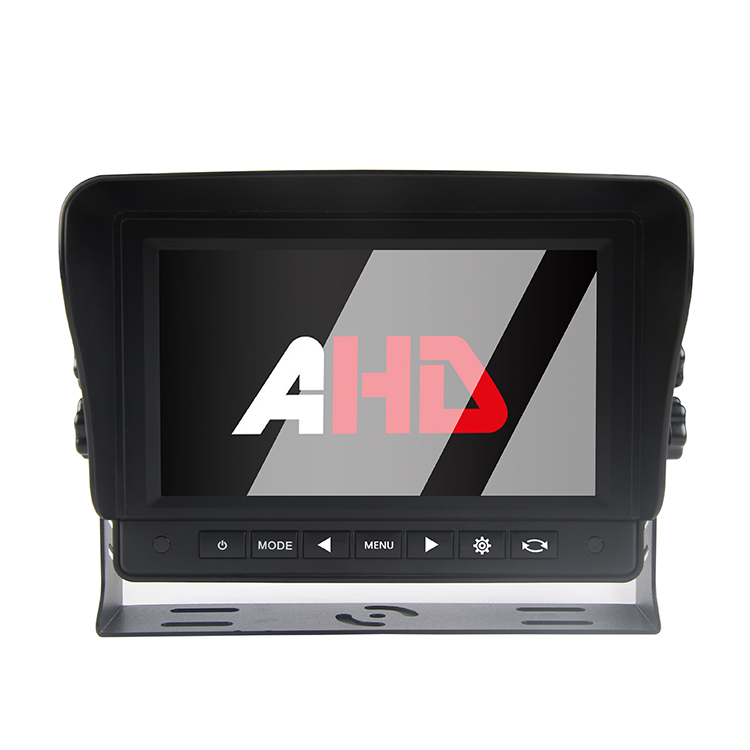

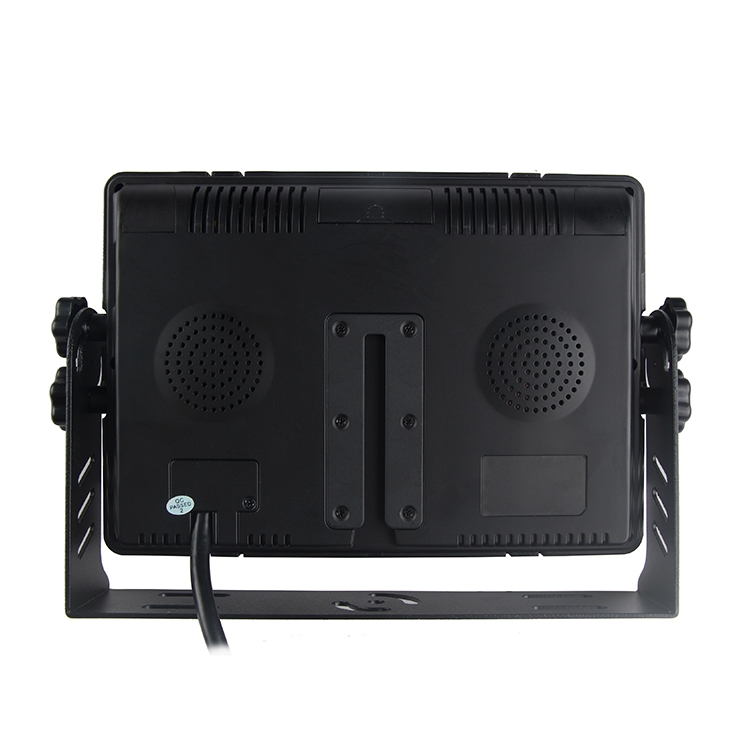

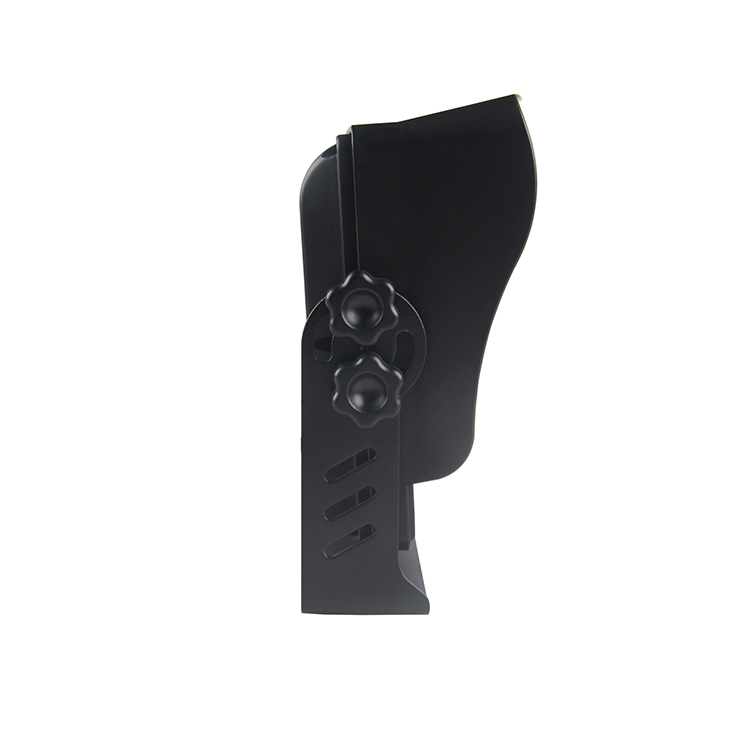

7 Inch Heavy Duty Reversing AHD Monitor Fit for Commercial Vehicle

Carleader 7 Inch Heavy Duty Reversing AHD Monitor Fit for Commercial Vehicle, support 2CH AHD signal inputs, 3CH inputs also available, visualize vehicle surrounding, highly reducing risk of accidents. Contact us for more details.

Model:CL-S760AHD

Send Inquiry

Product Description

Features:

* 7" digital panel with 16:9 image ratio, 1024 x 600 (RGB) resolution.

* 2CH AHD camera inputs, 3CH input also available.

* Video format available for AHD 720P/1080P, compatible for CVBS camera.

* 2CH / 3CH trigger wires inputs, CH2 has trigger priority, with trigger delay function to be adjust in menu.

* Built-in High quality audio speaker optional, without speaker as default.

* Full function remote control (Pack with 1x remote in the box)

* Auto Dimming function optional (Without auto dimming as default), support to adjust the screen brightness automatically base on the surrounding light intensity.

* Multi-language menu setting.

* Wide working voltage: 9~32V

Parameter:

Model	CL-S760AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Viewing Angle	Up 50°, Down 70°, Left / Right 70°
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Audio Input	1CH Camera Audio Input (Available Speaker)
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	18.6 x 12.8 x 3.2cm (without shade) 20.2 x 14.2 x 7.64cm (with shade)
