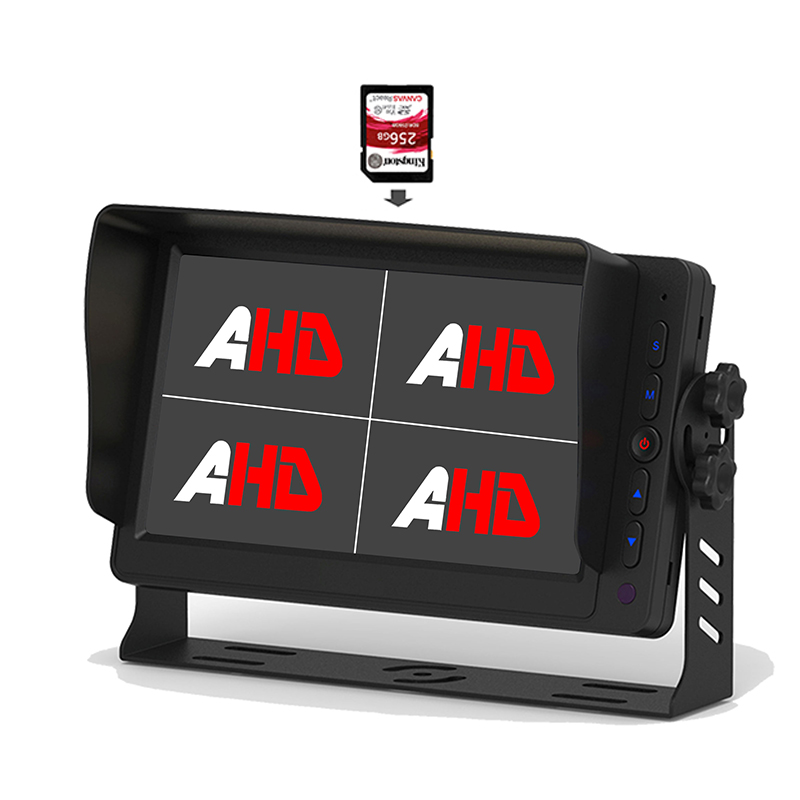

7 Inch Quad Display Truck Video Recording AHD Monitor
Carleader 7 Inch Quad Display Truck Video Recording AHD Monitor, supports simultaneous display of four CVBS/AHD cameras input, comes with 4CH trigger wires, AHD2 has trigger priority. Equipped with SD Card Slot, support loop recording for all 4 channels. Please feel free to contact us to ask and order, if you are interested.
Model:CL-S701AHDQ-SDDVR
Send Inquiry
Product Description
Carleader 7 Inch Quad Display Truck Video Recording AHD Monitor, supports simultaneous display of four CVBS/AHD cameras input, comes with 4CH trigger wires, AHD2 has trigger priority. Equipped with SD Card Slot, support loop recording for all 4 channels. Please feel free to contact us to ask and order, if you are interested.
Parameter:
|
7 Inch Quad Display Truck Video Recording AHD Monitor |
|
|
Model |
CL-S701AHDQ-SDDVR |
|
Screen Type |
7 inch IPS LCD Panel |
|
Aspect Ratio |
16 : 9 |
|
Resolution |
1024 x 600 (RGB) |
|
Brightness |
450 cd/m2 |
|
Contrast |
500 : 1 |
|
Video Input |
Support 4CH AHD 1080P/720P/CVBS Inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority |
|
System |
PAL / NTSC auto switch |
|
Speaker |
Built-in Speaker |
|
Audio Mode |
Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio. |

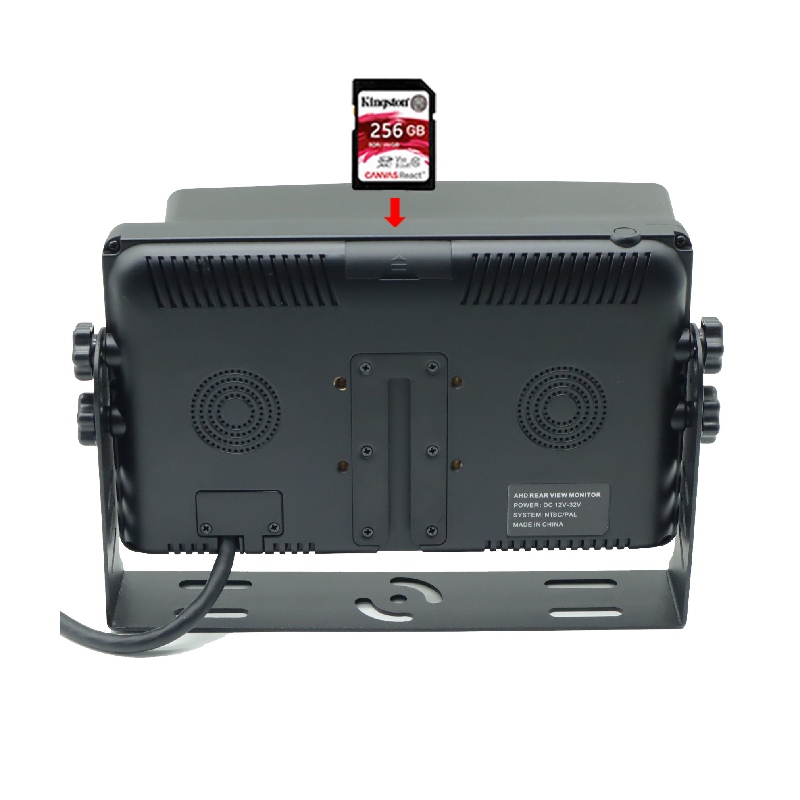

| Loop Recording | Support, SD card data storage up to 256 GB (SD card not included in package) |
|
Auto Dimming |
Optional (Without as default) |
|
OSD Menu |
Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
|
Parking Guide Line |
Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default) |
|
Mirror / Normal Image |
Each channel can be adjusted separately (Mirror image as default) |
| Button Type | Click buttons, each button with backlight |
|
Power Supply |
DC 9~32V |
|
Connection Plug (Connector) |
4PIN aviation connector as default, customized to RCA connector available |
|
Operating Temperature |
-20°C~+70°C (RH0%-RH90%) |
|
Storage Temperature |
-30°C~+80°C (RH0%-RH90%) |
|
Warranty |
2 Years |
|
Dimension |
19.4 x 11.5 x 2.65 cm (without shade) 19.4 x 11.5 x 6.65 cm (with shade) |
