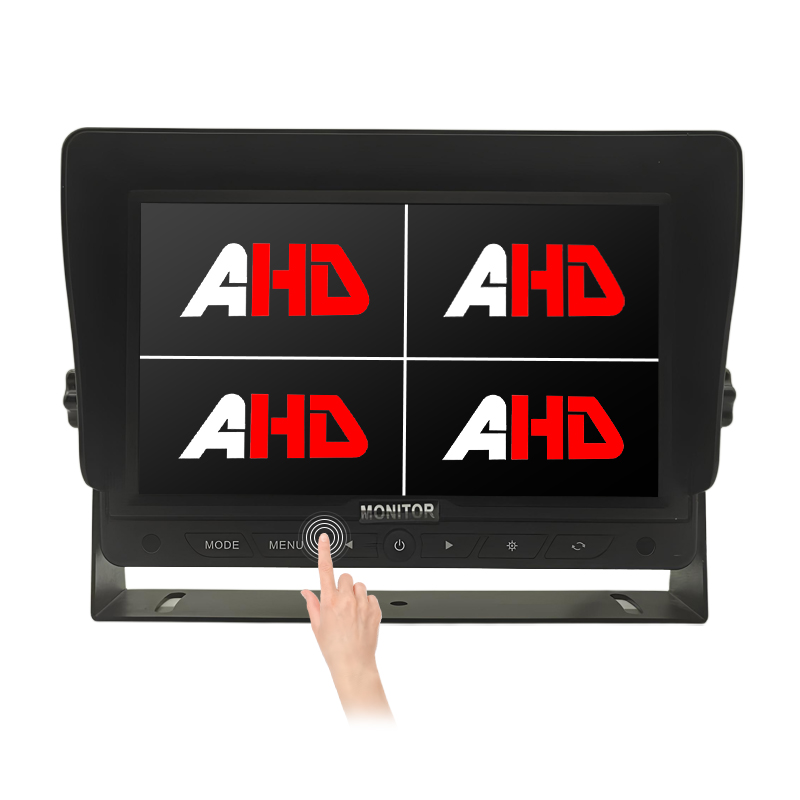

7 Inch Quad Split Screen AHD Touch Buttons Reversing Monitor

Carleader 7 Inch Quad Split Screen AHD Touch Buttons Reversing Monitor, supports simultaneous display of four CVBS/AHD cameras. Support infrared remote control, image support quad slit display. Features with touch buttons. Welcome to ask for more information.

Model:CL-S752AHD-Q

Send Inquiry

Product Description

Carleader is an expert in the production and development of electronic displays in China. Welcome to learn about our products, and hope to cooperate with you to create a better future!

Parameter:

Carleader 7 Inch Quad Split Screen AHD Touch Buttons Reversing Monitor
Model	CL-S752AHD-Q
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Viewing Angle	Up 50°, Down 70°, Left / Right 70°
Video Input	Support 4CH AHD 1080P/720P/CVBS Mixed Video Signal Input available
Audio Input	1CH Camera Audio Input (Available Speaker)
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	18.6 x 12.8 x 3.2cm (without shade) 20.2 x 14.2 x 7.64cm (with shade)
