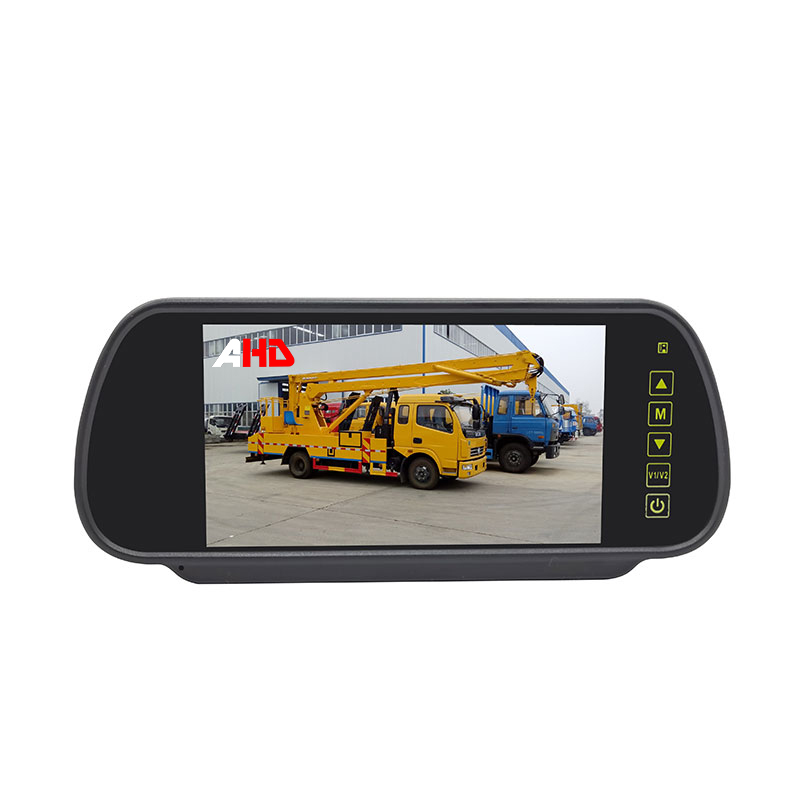

7 Inch TFT LCD Rear View Mirror AHD Monitor

Carleader 7 Inch TFT LCD Rear View Mirror AHD Monitor, integrated with two different installation method into one monitor, you can use stalk braket to replace the original mirror, or use Clip-on braket to directly clip the monitor on the original mirror.

Model:CL-S7388AHD

Send Inquiry

Product Description

Introducing Carleader 7 Inch TFT LCD Rear View Mirror AHD Monitor, integrated with two different installation methods into one monitor, you can use stalk bracket to replace the original mirror, or use Clip-on bracket to directly clip the monitor on the original mirror. 7 Inch Digital Panel, 16 : 9 ratio, 1024 x 600 (RGB) resolution, 2CH AHD camera inputs with trigger wire. Great Performance in vehicle surveillance.

Features:

* 7" digital panel with 16:9 image ratio, 1024 x 600 (RGB) resolution.

* 2CH AHD camera inputs, 3CH input also available.

* Video format available for AHD 720P/1080P, compatible for CVBS camera.

* 2CH / 3CH trigger wires inputs, CH2 has trigger priority, with trigger delay function to be adjust in menu.

* Built-in High quality audio speaker optional, without speaker as default.

* Full function remote control (Pack with 1x remote in the box)

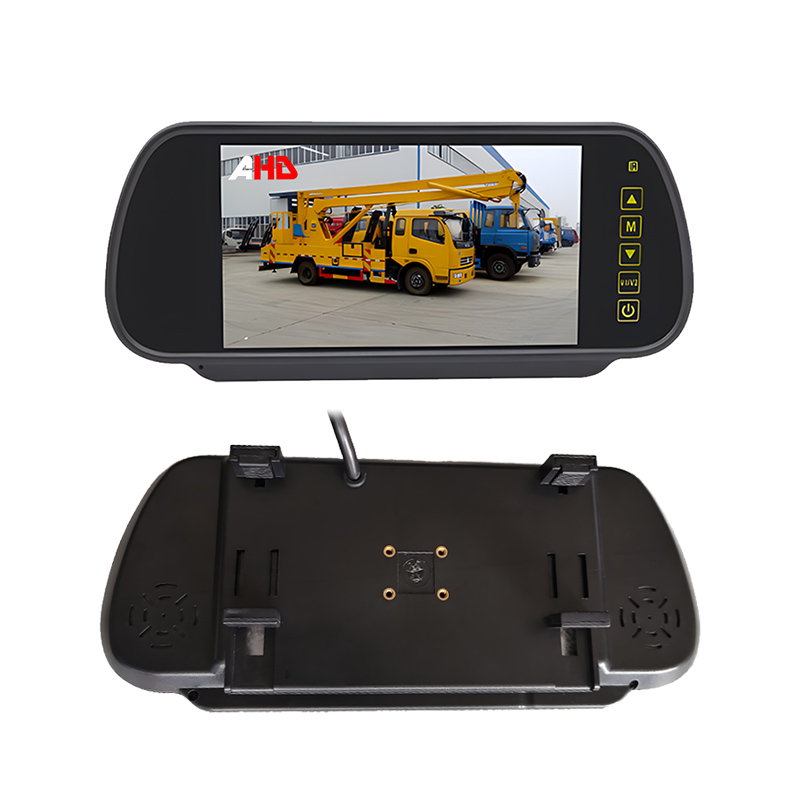

* 2 in 1 dual Installation Method:

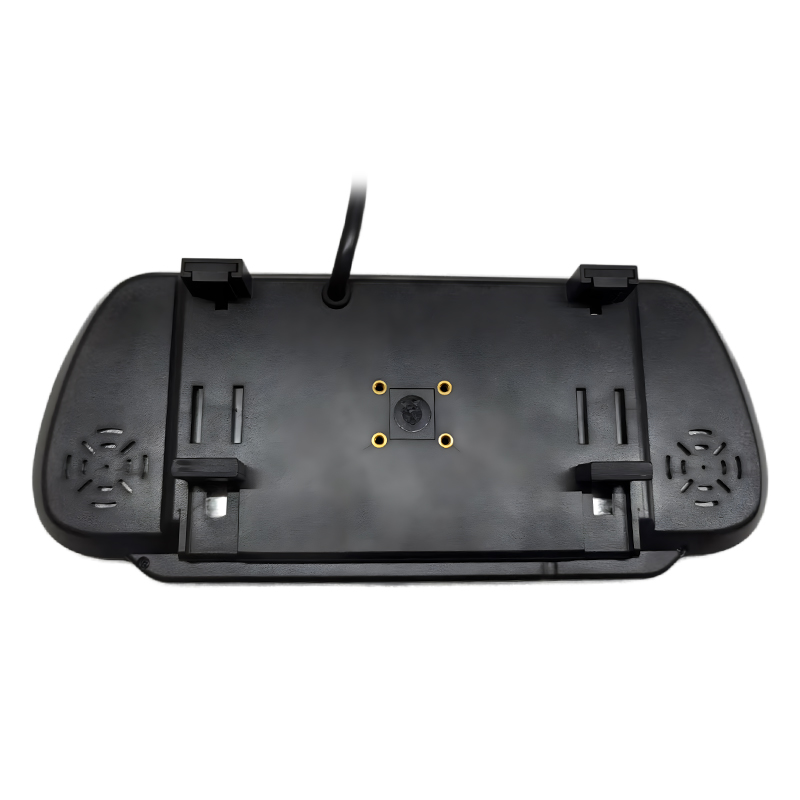

1. Use clip-on bracket to directly install on the original rear view mirror.

2. Use stalk bracket to replace the original rear view mirror.

* Multi-language menu setting.

* Wide working voltage: 9~32V

Parameter:

7 Inch TFT LCD Rear View Mirror AHD Monitor
Model	CL-S7388AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With trigger wires for CH2 on reversing
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image Mirrored, Image Rotated Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Touch Buttons
Installation Method	1. Use clip-on bracket to directly install on the original rear view mirror. 2. Use stalk bracket to replace the original rear view mirror.
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	24.5 x 10.5 x 2.5 cm
