7 Inch Touch Buttons 2CH Heavy Duty AHD Vehicle Montior

Carleader 7 Inch Touch Buttons 2CH Heavy Duty AHD Vehicle Montior is a monitor designed specifically for in-vehicle use that provides high-resolution video and a user-friendly touch-button interface. Which suitable for heavy duty vehicles such as trucks, truck trailers, etc.

Model:CL-S762AHD

Send Inquiry

Product Description

Carleader 7 Inch Touch Buttons 2CH Heavy Duty AHD Vehicle Montior, 7'' digital panel with 16:9 aspect ratio, 1024 x 600 resolution, 2 channels AHD signal inputs with 2 channels trigger wires. Compatible with CVBS and AHD cameras, PAL / NTSC auto switch.

Parameter:

7 Inch Touch Buttons 2CH Heavy Duty AHD Vehicle Montior
Model	CL-S762AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch

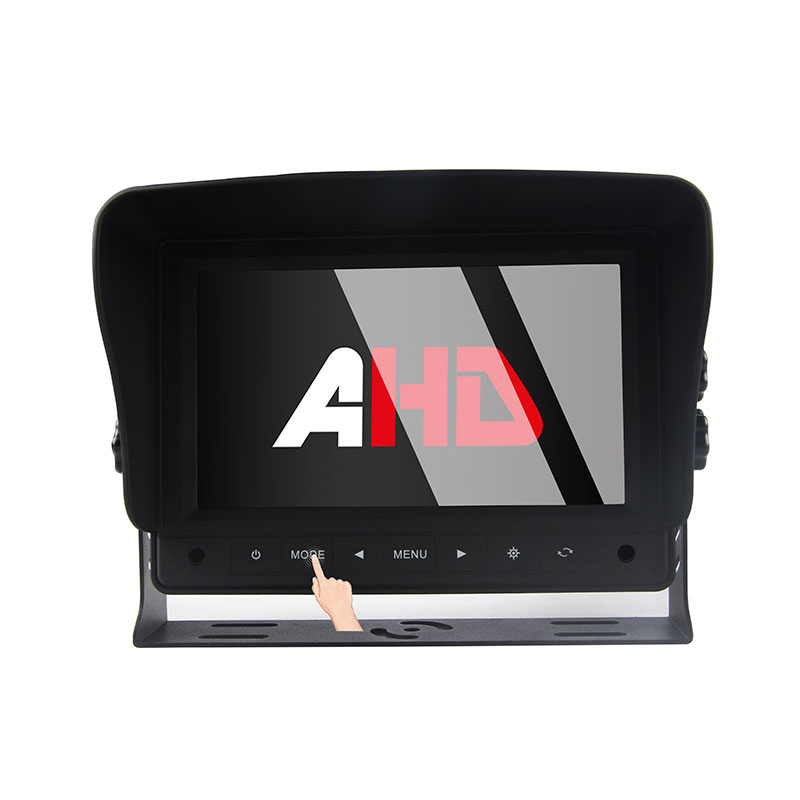

Button Type	Touch buttons, each button with backlight
Power Supply	DC 9~32V

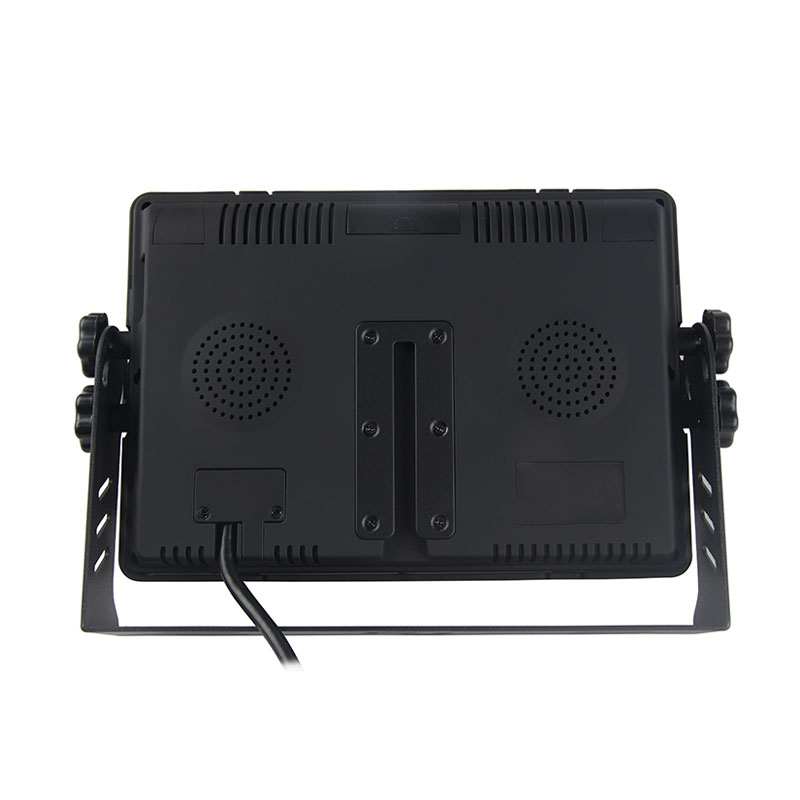

Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	18.6 x 12.8 x 3.2 cm ( without shade) 20.2 x 14.2 x 7.7 cm (with shade)
