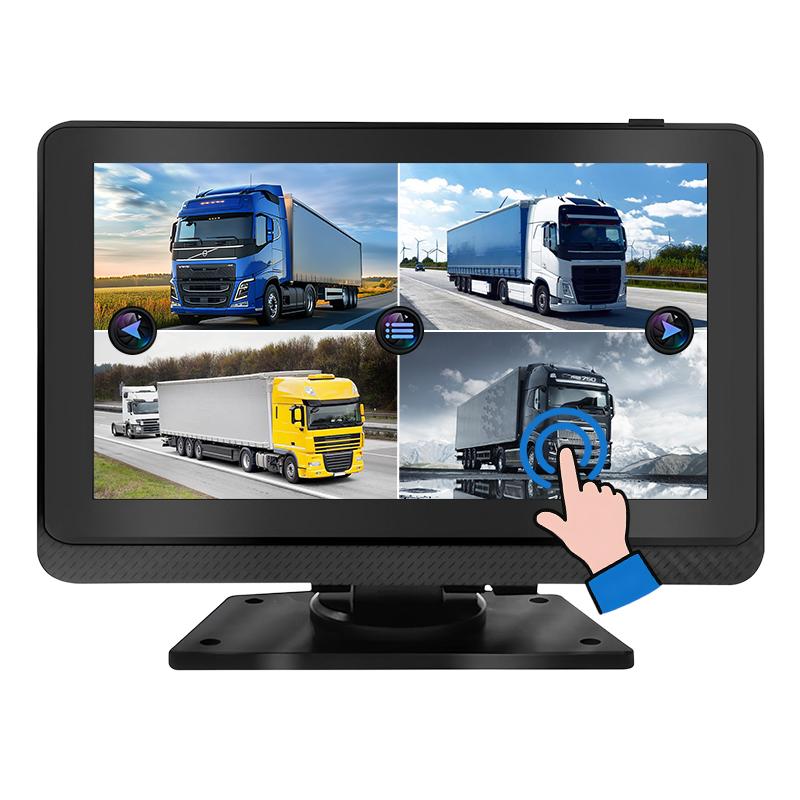

7 Inch Touch Screen Vehicle Quad View DVR Monitor With 1080P Recording

Carleader 7 Inch Touch Screen Vehicle Quad View DVR Monitor With 1080P Recording, which is designed for commercial vehicles, trucks and buses, this vehicle DVR monitor integrates touch screen operation, multi-channel camera display and video recording functions. It Supports AHD/TVI/CVBS mixed video input, 1080P recording and up to 512GB TF card storage.

Model:CL-S780AHDQ-DVR

Send Inquiry

Product Description

Carleader 7 Inch Touch Screen Vehicle Quad View DVR Monitor With 1080P Recording, which is designed for commercial vehicles, trucks and buses, this 7 inch car monitor helps drivers achieve better visibility and safer driving through real-time camera monitoring. The touch screen vehicle DVR monitor supports loop recording with MP4 recording format and supports 1080P recording resolution and up to 4-channel mixed video inputs including 1080P, 960P, 720P and CVBS formats. For more information, please feel free to contact us.

Features:

1. 7 Inch Car Monitor integrates DVR recording function with 1080P recording resolution and portable touch screen monitor design

2. Vehicle DVR Monitor supports 4CH mixed video input including 1080P/960P/720P and CVBS formats for multiple camera connections.

3. AHD Monitor supports AHD/TVI/CVBS mixed video signals with automatic PAL/NTSC adaptation for wide compatibility.

4. Portable Touch Screen Monitor supports up to 512GB TF card storage and delayed recording after vehicle power-off

5. Commercial Vehicle Camera System Monitor supports UTC protocol camera communication and automatic full-screen switching through trigger input.

6. 7 Inch Touch Screen Monitor is suitable for truck, bus and commercial vehicle applications requiring reliable camera monitoring solutions.

Parameter:

7 Inch 1080P Vehicle Quad View Display All-in-One System Monitor
Model	CL-S780AHDQ-DVR
Brightness	450 cd/m2
Contrast	500 : 1
Resolution	1024 x 600 (RGB)
System Language	Simplified Chinese/Traditional Chinese, Russian, English (other languages customizable)
Operation Interface	OSD graphical menu, supporting remote control, buttons and touch operation
Video Input	Support 4CH AHD 1080P/960P/720P/CVBS video input; compatible with CVBS/AHD/TVI mixed signals; compatible with PAL and NTSC mixed formats
Trigger Input	3 sets of I/O triggers, supporting 5V-24V voltage trigger full-screen display
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Preview Function	Multi-screen preview modes with manual/voltage trigger full-screen display
Recording Mode	Automatic recording after power-on
Recording Resolution	1080P(1920*1080)
File Format	MP4
Playback	4-channel synchronized playback, supporting pause, fast forward and slow (2/4/8x speed)
Storage	Supports up to 512GB TF card and loop recording (TF card isn't included in package)
Input Voltage	DC:+12V ~ +36V
Output Voltage	+12V/2.5A
Temperature	-30℃ to +70℃
Humidity	10% to 80%
Warranty	2 Years
Dimension	18.2 x 12 x 15 cm
