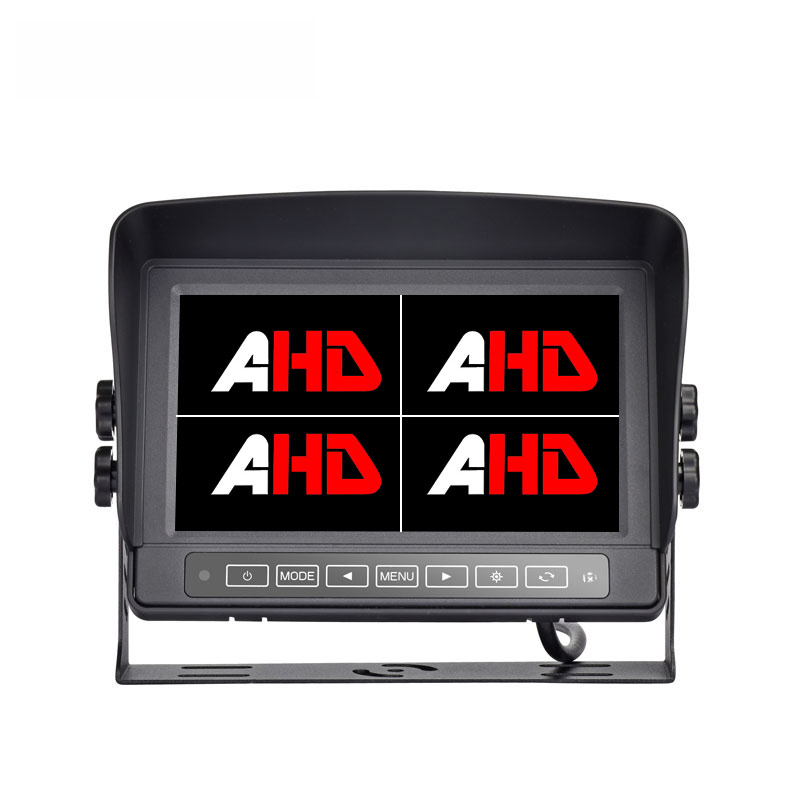

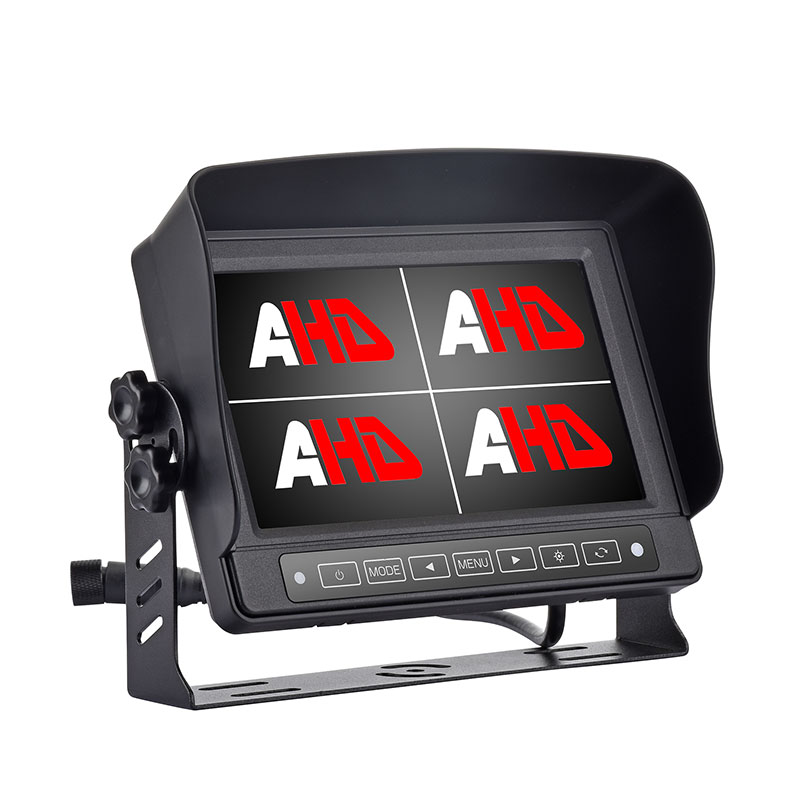

7 Inch Waterproof AHD Quad Monitor with Metal Housing and Touch Controls

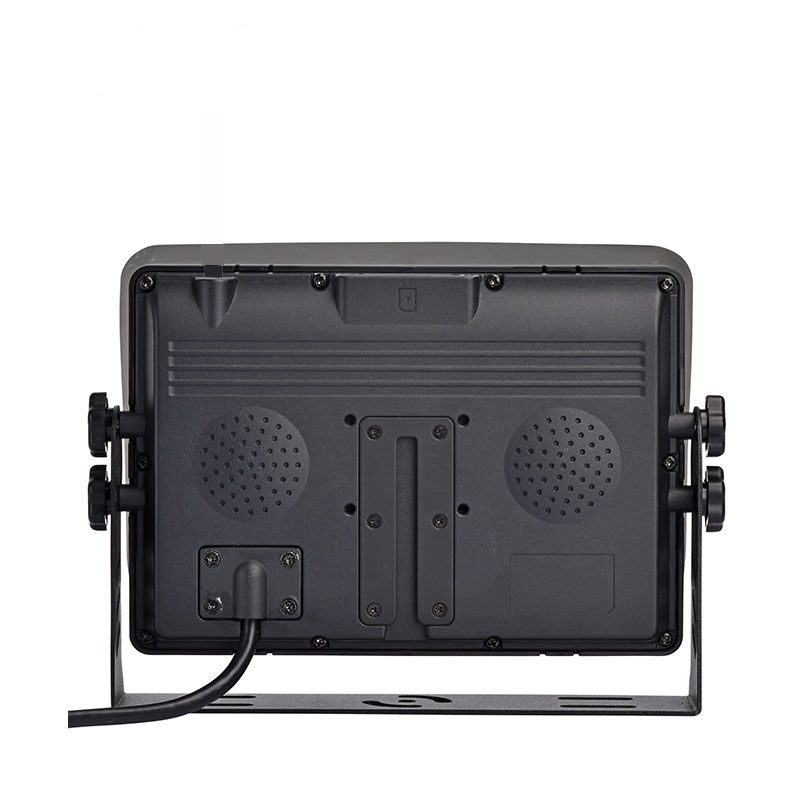

Carleader 7 Inch Waterproof AHD Quad Monitor is designed for vehicle camera systems that require multiple camera inputs and a durable monitor housing. Its 7-inch digital Innolux panel provides a 16:9 display format and 1024 × RGB × 600 resolution for in-vehicle image monitoring. The monitor supports four AHD video inputs, with an individual trigger wire for each channel. AHD2 has trigger priority, while multiple screen modes allow users to switch between supported display layouts according to their monitoring requirements. The metal housing is designed for corrosion and rust resistance, and the monitor carries an IP69K waterproof rating. It is compatible with AHD and CVBS cameras and supports configurable audio and blue-screen settings for each channel. A built-in speaker is standard, with waterproof speakers available as an option.

Product Features

1. 7 Inch Digital Display: Innolux panel with a 16:9 aspect ratio and 1024 × RGB × 600 resolution.

2. Four Camera Inputs: Supports four AHD video inputs, AHD1, AHD2, AHD3, and AHD4.

3. Waterproof Design: IP69K-rated monitor for demanding vehicle environments.

4. Metal Housing: Anti-corrosion and anti-rust housing design.

5. Quad Screen Display: Multiple screen modes for viewing connected camera feeds.

6. Individual Trigger Wires: Each channel has its own trigger wire, with AHD2 given priority.

7. AHD and CVBS Compatibility: Supports compatible AHD and CVBS cameras.

8. Selectable Audio: AHD1 audio is standard, with optional four-channel audio and channel selection through the settings.

9. Built-in Speaker: Standard built-in speaker, with optional waterproof speakers.

10. Backlit Touch Buttons: Touch controls with background lighting for convenient operation.

11. Flexible Display Settings: Each channel supports configurable blue-screen settings.

12. Automatic Dimming Option: Optional CDS auto-dimming function.

Product Parameters

Product Name: 7 Inch Waterproof AHD Quad Monitor with Touch Buttons

Display Size: 7 Inch

Display Panel: Digital Innolux Panel

Aspect Ratio: 16:9

Resolution: 1024 × RGB × 600

Brightness: 450 cd/m²

Contrast Ratio: 500:1

Video Inputs: 4 Channels

Input Channels: AHD1 / AHD2 / AHD3 / AHD4

Trigger Wires: Individual Trigger Wire for Each Channel

Trigger Priority: AHD2

Supported Video Formats: D1 / 720P / 1080P HD

Frame Rate: 25FPS / 30FPS

Video System: PAL / NTSC

Camera Compatibility: AHD / CVBS

Screen Modes: Multiple Display Modes

Audio Function: AHD1 Audio Standard

Optional Audio Function: Four-Channel Audio

Audio Selection: Selectable by Settings

Built-in Speaker: Standard

Waterproof Speaker: Optional

Blue Screen Function: Selectable for Each Channel

Touch Buttons: Backlit Touch Buttons

OSD Languages: 8 Languages

Remote Control: Supported

Auto Dimming: Optional

Housing Material: Metal

Housing Features: Anti-Corrosion / Anti-Rust Design

Waterproof Rating: IP69K

Power Supply: DC 9–32V

Sunshade: Detachable

Standard Bracket: Metal U-Type Bracket

Alternative Bracket: Optional

Dimensions Without Sunshade: 190 × 128 × 30 mm

Dimensions With Sunshade: 204 × 142 × 78 mm

Application Scenarios

• Commercial Trucks

Suitable for vehicle camera monitoring installations that require multiple camera views.

• Heavy Duty Vehicles

Designed for compatible vehicle monitoring systems operating in demanding environments.

• Buses and Coaches

Can be used to display feeds from multiple connected cameras in suitable vehicle installations.

• Construction and Industrial Vehicles

The waterproof housing and multi-channel inputs may suit selected construction and industrial vehicle monitoring applications.

• Fleet Monitoring Systems

Can be integrated into compatible fleet camera systems requiring multiple video inputs.

• Vehicle Camera Distributors and Installers

Suitable for distributors, vehicle equipment suppliers, and professional installers looking for a waterproof quad monitor.

Quality Control and Testing

• Display Testing

Check screen operation, image clarity, brightness, and display settings.

• Video Input Testing

Verify the four video input channels and supported AHD/CVBS configurations.

• Trigger Function Testing

Check individual trigger wires and AHD2 trigger priority.

• Audio Testing

Verify the standard speaker and applicable audio selection functions.

• Touch Button Testing

Check touch button response and backlight operation.

• Screen Mode Testing

Verify the available display layouts and channel switching functions.

• Power Supply Testing

Check operation within the specified DC 9–32V input range.

• Housing Inspection

Inspect the metal housing, mounting bracket, and external finish.

• Waterproof Specification Verification

Confirm the specified IP69K rating according to the applicable testing procedure.

Frequently Asked Questions

Q1: How many cameras can this 7-inch monitor connect to?

A1: It supports four video input channels: AHD1, AHD2, AHD3, and AHD4.

Q2: Is this monitor waterproof?

A2: The monitor is specified with an IP69K waterproof rating. The suitability of the complete installation depends on the mounting and connection arrangements.

Q3: Does it support both AHD and CVBS cameras?

A3: Yes. It is compatible with AHD and CVBS cameras, subject to the supported video format and resolution.

Q4: Can the monitor display multiple camera views at once?

A4: Yes. It supports multiple screen modes for displaying connected camera feeds.

Q5: Does each camera input have a trigger wire?

A5: Yes. Each channel has an individual trigger wire, and AHD2 has priority.

Q6: Does the monitor support audio?

A6: AHD1 audio is standard. Four-channel audio is optional, and the audio channel can be selected through the settings.

Q7: Are waterproof speakers available?

A7: Yes. Waterproof speakers are available as an option.

Q8: Can I adjust the screen brightness automatically?

A8: Yes. The CDS auto-dimming function is available as an option.

Q9: What mounting options are available?

A9: A metal U-type bracket is standard, and an alternative bracket is available as an option.

Q10: Can the blue screen function be configured separately for each channel?

A10: Yes. The blue-screen function for each channel can be selected through the settings.

Q11: Is the monitor suitable for all commercial vehicles?

A11: Suitability depends on the vehicle's power supply, camera video formats, installation requirements, and environmental conditions. Please confirm compatibility before ordering.
