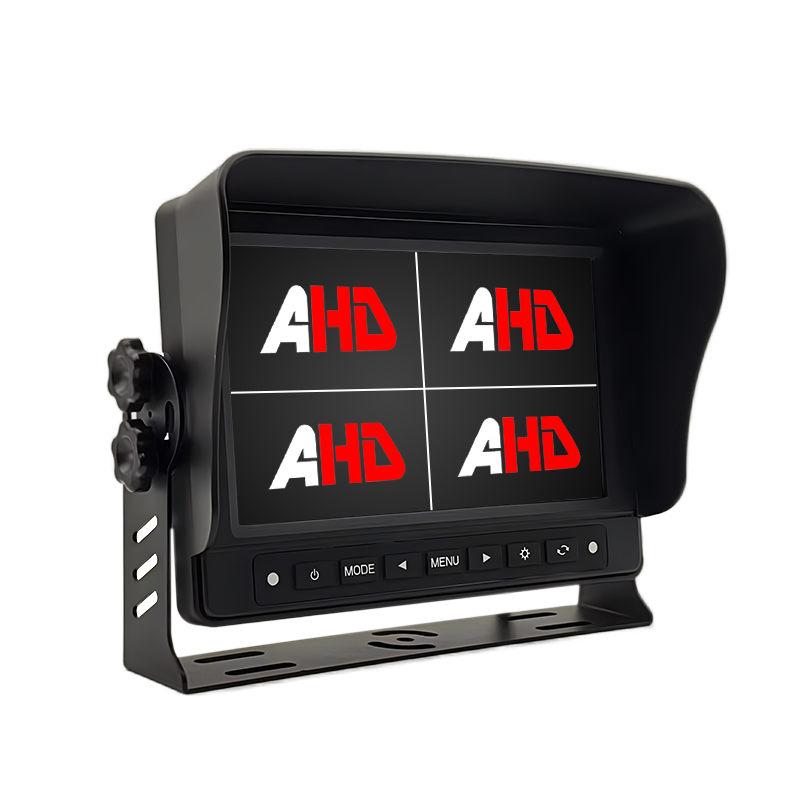

7 Inch Waterproof Quad Split Display Heavy Duty Truck Monitor

Carleader 7 Inch Waterproof Quad Split Display Heavy Duty Truck Monitor, a robust and durable waterproof heavy duty vehicle monitor features with waterproof bulge buttons,IP69K waterproof level can work in any harsh weather condition.

Model:CL-S768AHD-Q

Send Inquiry

Product Description

‌Carleader 7 Inch Waterproof Quad Split Display Heavy Duty Truck Monitor, a robust and durable waterproof heavy duty vehicle monitor features with waterproof bulge buttons, widely used in various types of vehicles. It provides real-time images when reversing, helping the driver to accurately judge the distance and position of the vehicle and objects behind it, significantly improving the safety and accuracy of reversing.

Parameter:

Carleader 7 Inch Waterproof Quad Split Display Heavy Duty Truck Monitor
Model	CL-S768AHD-Q
Screen Type	7 inch IPS LCD Panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 4CH AHD 1080P/720P/CVBS Inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority
Speaker	Optional (Waterproof Speaker)
Audio Mode	Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio.
Auto Dimming Function	Optional (Without as default)
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Buttons Type	Waterproof Click Buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
IP Rating	IP69K
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	19 x 12.8 x 3.0 cm (without shade) 17.8 x 12 x 6.35 cm (with shade)
