7 Inch Wireless Monitor with Solar Powered Camera for Commercial Vehicles

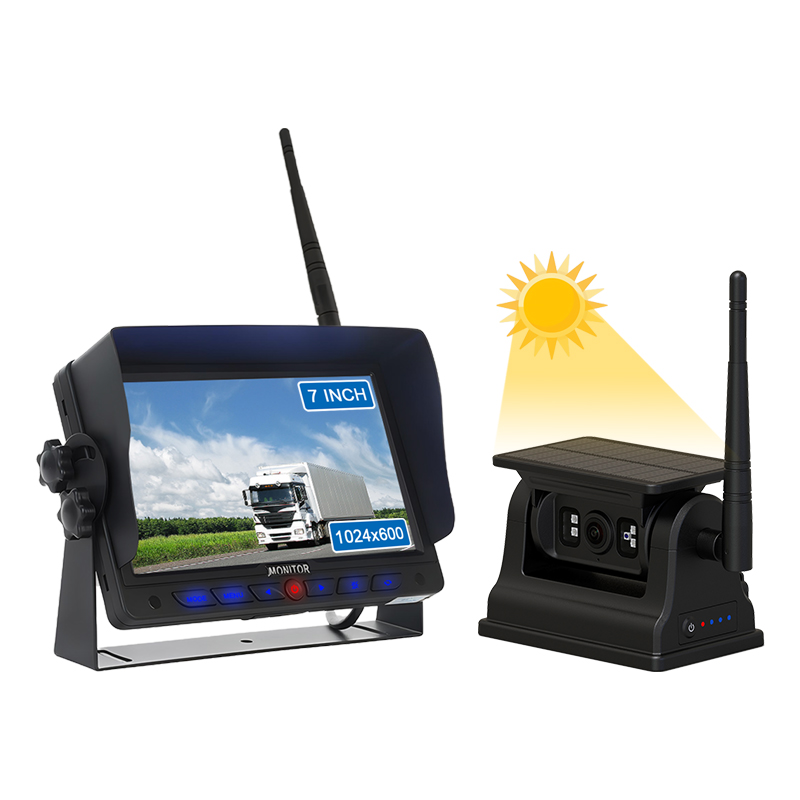

The Carleader 7 Inch 2.4G Digital Wireless Monitor and Camera System provides a convenient wireless monitoring solution for commercial vehicles and equipment. The 7-inch monitor features a 1024 × RGB × 600 display, a built-in 2.4G wireless receiver and automatic camera pairing, helping simplify installation without a conventional wired video connection between the monitor and camera. The system supports pedestrian and vehicle detection, as well as video recording. The standard configuration supports one wireless video input, while optional 2-, 3- or 4-channel wireless inputs are available with split-screen display support. The 720P wireless camera features a 120° wide-angle lens, four infrared LEDs that activate automatically in darkness, an IP68 waterproof rating and a magnetic mounting base. Its built-in 10500mAh battery can be charged through a Type-C connection, and the camera also supports solar panel power supply. Under the specified daytime conditions, continuous working time is rated at up to 20 hours. This wireless camera system is designed for applications involving trucks, buses, trailers, cranes and other commercial vehicles where flexible installation and wireless monitoring are required.

Key Features

1. 7-Inch Digital Monitor: Features a 1024 × RGB × 600 display with 450 cd/m² brightness.

2. 2.4G Digital Wireless Transmission: Supports wireless video transmission with a specified range of approximately 80–120 meters under suitable conditions.

3. Pedestrian and Vehicle Detection: Supports pedestrian and vehicle detection functions.

4. Recording Function: Supports video recording for vehicle monitoring applications.

5. Automatic Pairing: The camera and monitor support automatic pairing for convenient setup.

6. Expandable Wireless Inputs: One wireless video input is standard, with 2-, 3- and 4-input options available.

7. Split-Screen Display: Optional multi-channel configurations support split-screen viewing.

8. Solar Panel Power Supply: Supports solar power to help maintain camera battery charge.

9. Built-In Rechargeable Battery: Equipped with a 3.7V, 10500mAh battery.

10. Magnetic Mounting Base: Allows convenient installation on suitable metal surfaces.

Product Parameters

Monitor Parameters

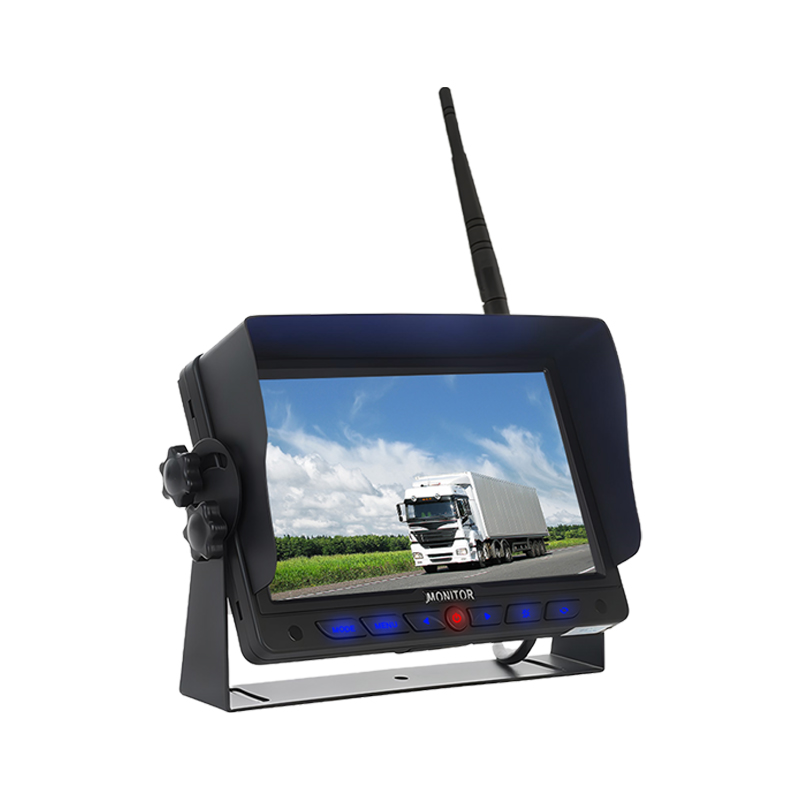

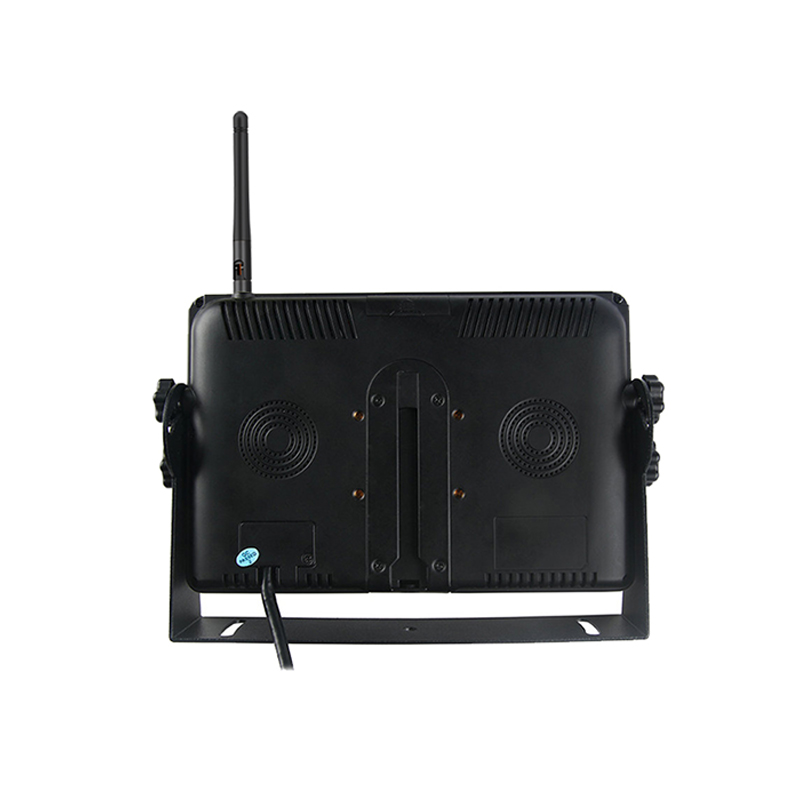

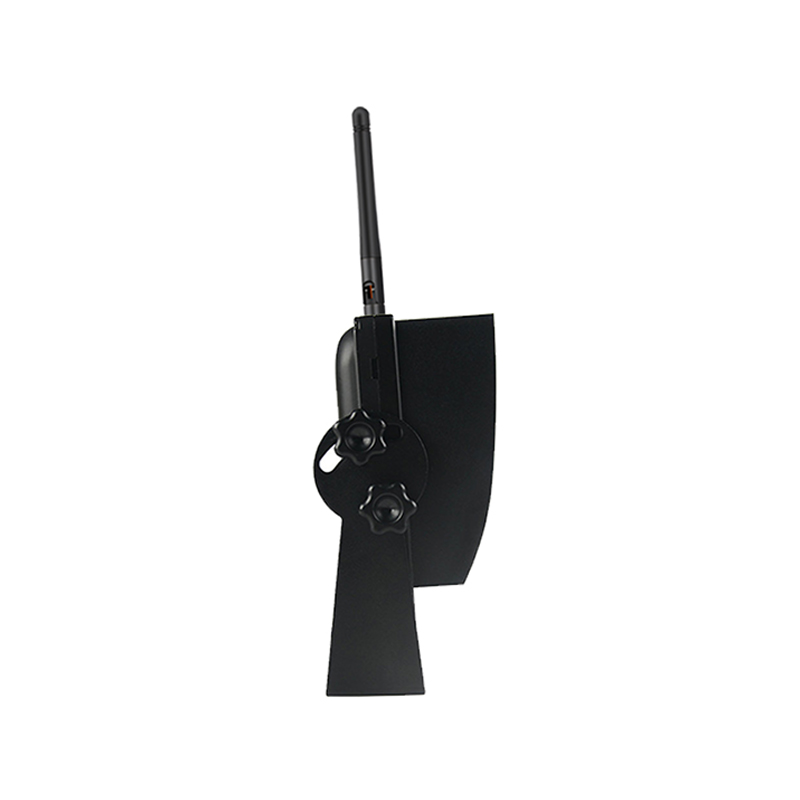

Product Name: 7 Inch 2.4G Digital Wireless Monitor and Camera System

Display Size: 7 inches

Display Type: Digital panel

Display Format: 16:9

Resolution: 1024 × RGB × 600

Brightness: 450 cd/m²

Wireless Receiver: Built-in 2.4G receiver

Receiving Sensitivity: -85 dBm

Wireless Video Inputs: 1 channel standard

Optional Wireless Inputs: 2 / 3 / 4 channels

Split-Screen Display: Supported with optional multi-channel configuration

Pedestrian Detection: Supported

Vehicle Detection: Supported

Recording Function: Supported

Power Consumption: Less than 10W

Wireless Transmission Distance: Approximately 80–120 meters

Pairing: Automatic

Built-In Speaker: Optional

Video System: Automatic PAL/NTSC switching

Button Illumination: All buttons with backlighting

Shockproof Level: 4G

Power Supply: DC 9–32V

Operating Temperature: -20°C to +70°C

Camera Parameters

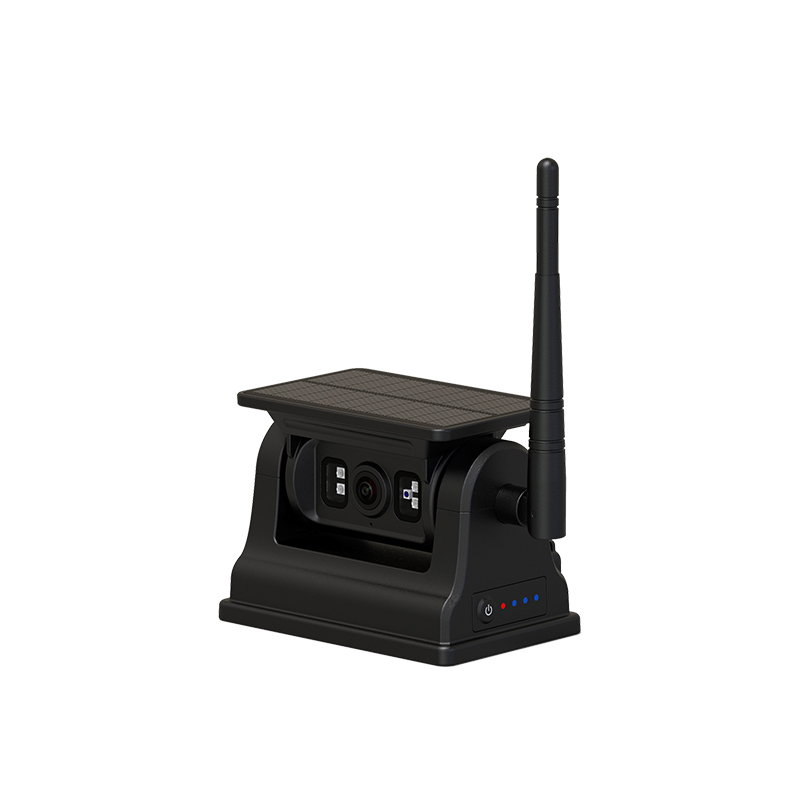

Camera Type: 2.4G Digital Wireless Camera

Image Sensor: 1/2.9-inch AHD sensor

Resolution: 720P

Lens Viewing Angle: 120°

Infrared LEDs: 4 IR LEDs

Night Vision: Automatic infrared LED activation in darkness

Waterproof Rating: IP68

Wireless Transmission Frequency: 2400–2483.5 MHz

Transmission Power: 20 dBm

Wireless Transmission Distance: Approximately 80–120 meters

Mounting Method: Magnetic base

Power Consumption: Less than 5W

Battery Type: Built-in rechargeable battery

Battery Voltage: 3.7V

Battery Capacity: 10500mAh

Charging Interface: Type-C

Charging Specification: 5V/2A

Charging Time: Approximately 6 hours

Power Supply: Solar panel supported

Continuous Working Time: Up to 20 hours during daytime under specified conditions

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Dimensions: 115 × 76 × 76 mm

ApplicationsCommercial

• Truck Wireless Camera Systems
• Trailer Wireless Monitoring Systems
• Bus Camera Monitoring
• Crane and Industrial Equipment Monitoring
• Heavy-Duty Vehicle Camera Systems
• Solar-Powered Wireless Camera Installations
• Temporary Vehicle Camera Installations
• Fleet Monitoring Solutions
• Wireless Rear View Monitoring
• Commercial Vehicle Safety Monitoring

Quality Control and Testing

• Monitor Appearance and Function Inspection
• Display Resolution and Brightness Verification
• Wireless Pairing Function Test
• Wireless Video Transmission Test
• Pedestrian and Vehicle Detection Function Test
• Recording Function Test
• Multi-Channel Display Verification for Optional Configurations
• Camera Image Quality Test
• Infrared Night Vision Function Test
• Magnetic Mounting Inspection
• Battery Charging Function Test
• Solar Power Supply Function Verification
• Waterproof Specification Verification
• Operating Temperature Specification Review

FAQ

Q1: What is the wireless transmission distance of this camera system?

A1: The specified wireless transmission distance is approximately 80–120 meters. Actual performance depends on obstacles, interference, installation position and environmental conditions.

Q2: Does the system support pedestrian and vehicle detection?

A2: Yes. The monitor system supports pedestrian and vehicle detection. Detection performance depends on the installation, configuration and operating environment.

Q3: Can the system record video?

A3: Yes. The system supports a recording function. Please confirm the recording storage medium and supported capacity before ordering, as these details are not specified in the provided parameters.

Q4: How many wireless cameras can the monitor support?

A4: One wireless video input is standard. Optional 2-, 3- and 4-input configurations are available, with split-screen display support.

Q5: Does the camera support solar charging?

A5: Yes. The camera supports solar panel power supply and has a built-in 3.7V, 10500mAh rechargeable battery.

Q6: How long can the camera operate on a full charge?

A6: The specified continuous working time is up to 20 hours during daytime under the stated conditions. Actual battery life depends on operating conditions, charging and camera usage.

Q7: Does the camera support night vision?

A7: Yes. The camera has four infrared LEDs that switch on automatically in darkness.

Q8: Is the wireless camera waterproof?

A8: The camera has an IP68 waterproof rating. Installation details and connector protection should also be considered for outdoor use.

Q9: How is the camera installed?

A9: The camera uses a magnetic mounting base and can be attached to a suitable metal surface. Ensure the mounting location is secure and appropriate for vehicle vibration and operating conditions.

Q10: What vehicles can use this wireless camera system?

A10: The system is intended for buses, trucks, trailers, cranes and other compatible commercial vehicles.
