720P SD Card Mobile DVR

Support GPS/BD G-sensor Optional
Optional single RS232 serial port or single RS485 extension
1 CH alarm output
720P SD card mobile DVR support upgrading the software via SD card
Carleader is a professional manufacturer of 720P SD Card Mobile DVR. Our professional expertise in manufacturing 720P SD Card Mobile DVR has been honed over the past 10+ years.

Model:CL-MR9504-720P

Send Inquiry

Product Description

720P SD Card Mobile DVR Parameters:

◆HIS solution,H.264 compression mode,many stream recording.Support 720P million pixels HD video recording /support 4CH 720P million pixels AHD input / 4CH analog SD camera input / 2CH HD + 2CH SD mixed input

◆Real time HD video recording ,720p/D1/HD1/CIF for optional.adjustable frame rate quality

◆CVBS/VGA output for optional

◆GPS optional

◆Profession power design for all kinds of vehicles, 8~36 V DC wide voltage .over-load, over-voltage, short-circuit, reserve-protection
◆Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc.
◆SD card data record storage ( one SD cards, maximum support 256 GB)
◆It can be completely resist car vibration ,dust and other cause data corruption, our product can adapt to the bad roads conditions which other product cannot.
◆Watchdog abnormal restart function,protect SD Card and Record
◆Exclusive pre-allocated DVR special file system technology, solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data
◆ACC Delay off,can set 24 hours
◆Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements
◆Show Car status/Plate numbers /Driving Route/super-Low Speed information for convenient management
◆Support GPS/BD G-sensor Optional
◆Optional single RS232 serial port or single RS485 extension
◆4CH Alarm input(Doors, Light, steering ,braking , reversing and all types can be configured),can linkage kinds of response
◆1 CH alarm output

◆Support upgrading the software via SD card

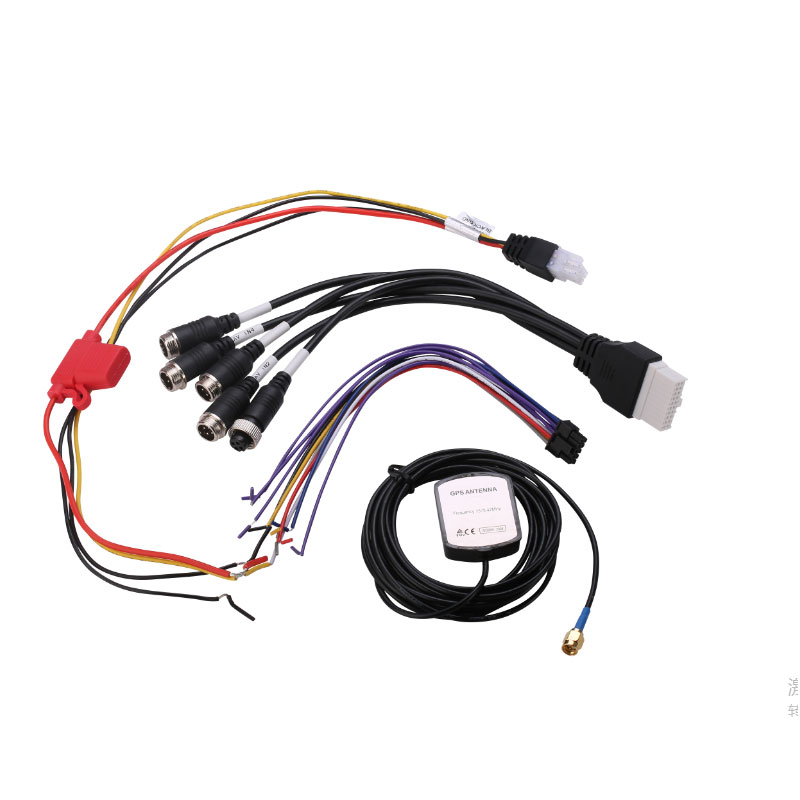

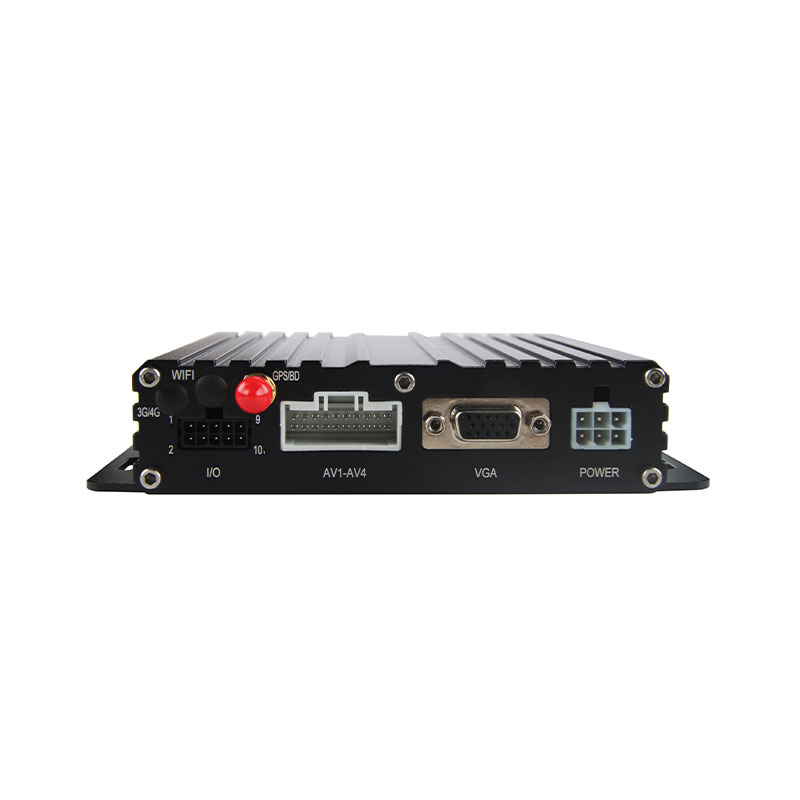

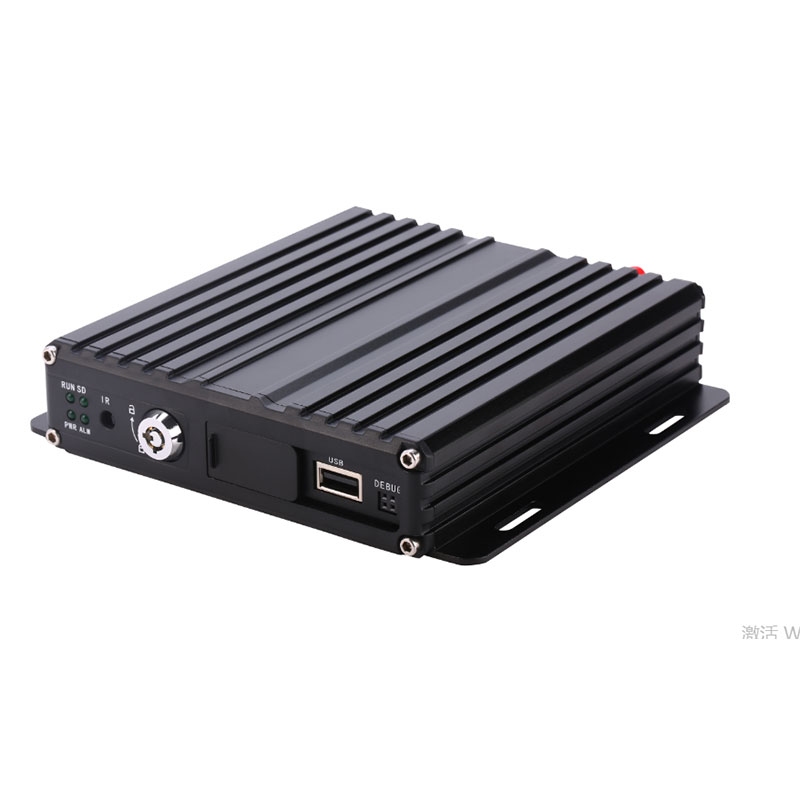

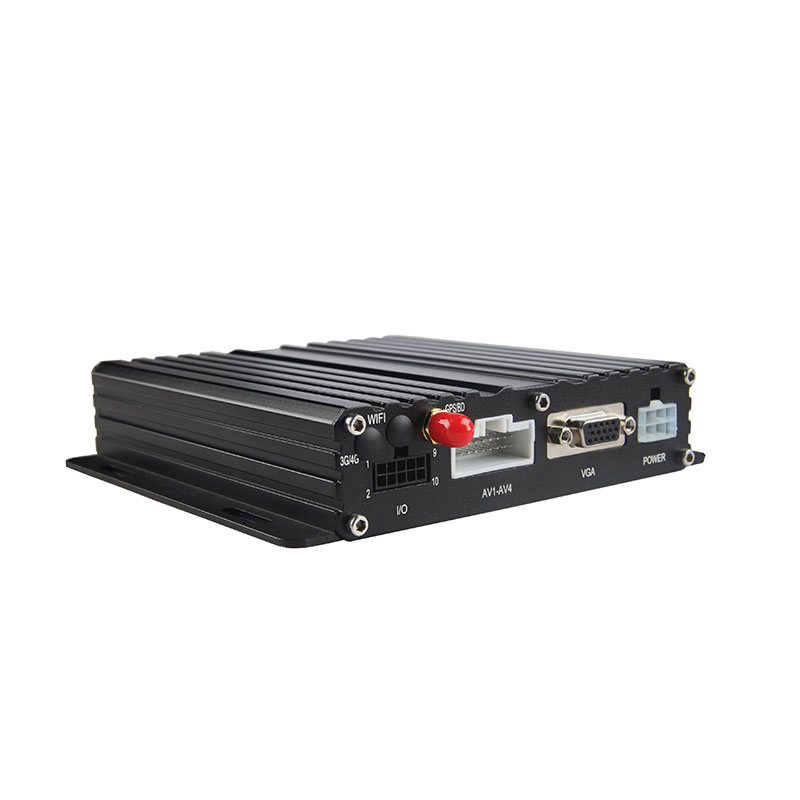

images of 720P SD Card Mobile DVR
