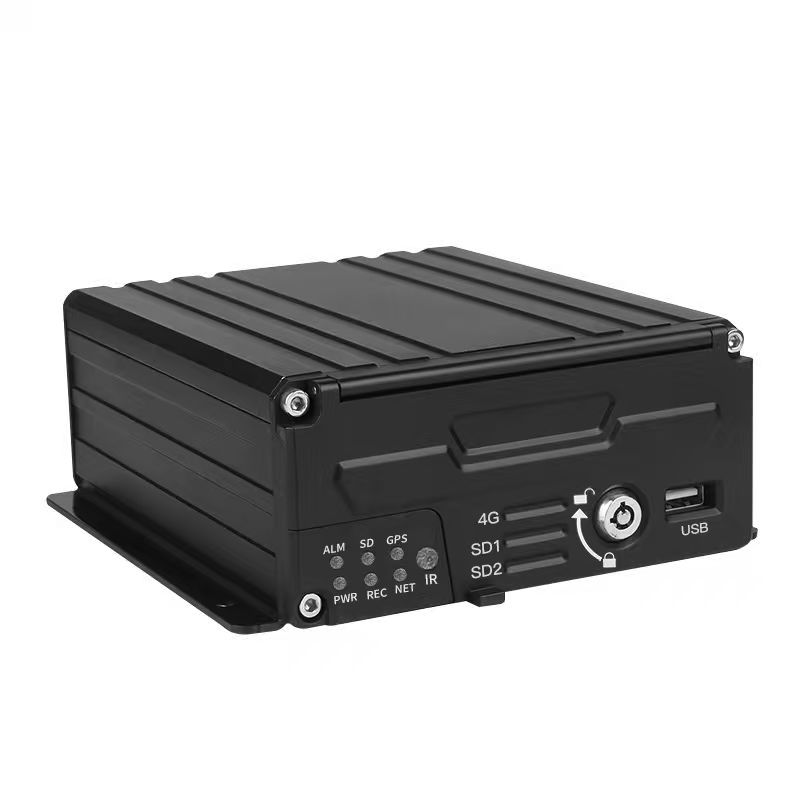

The 8CH AI HDD mobile NVR is an 8-channel, hard drive-based mobile network video recorder that supports both IP and analog AHD cameras. The 8CH IPC+AHD HDD Mobile NVR is a versatile vehicle DVR that can record up to 8 cameras, allowing you to mix and match modern IP cameras with traditional, powerful AHD cameras. 8CH IPC+AHD HDD Mobile NVR also can support ADAS, DSM, and BSD cameras. Detect the driver's habits and alarms in real time.
8CH NVR Specification:
Encoding
H.265 encoding
Video Input
4CH 1080P AHD input + 4CH 1080P IPC inputs
G-sensor
Built-in
Video Output
Support 1x CVBS / AHD output + 1x VGA Output
Power Supply
9-36V DC Wide Voltage Range
Storage capacity
2.5-inch hard disk, up to 2TB. single SD card, up to 512 GB
Function
Support 720P ADAS, DSM, and BSD cameras
4G/5G
Support
WiFi
Support
GPS
Support

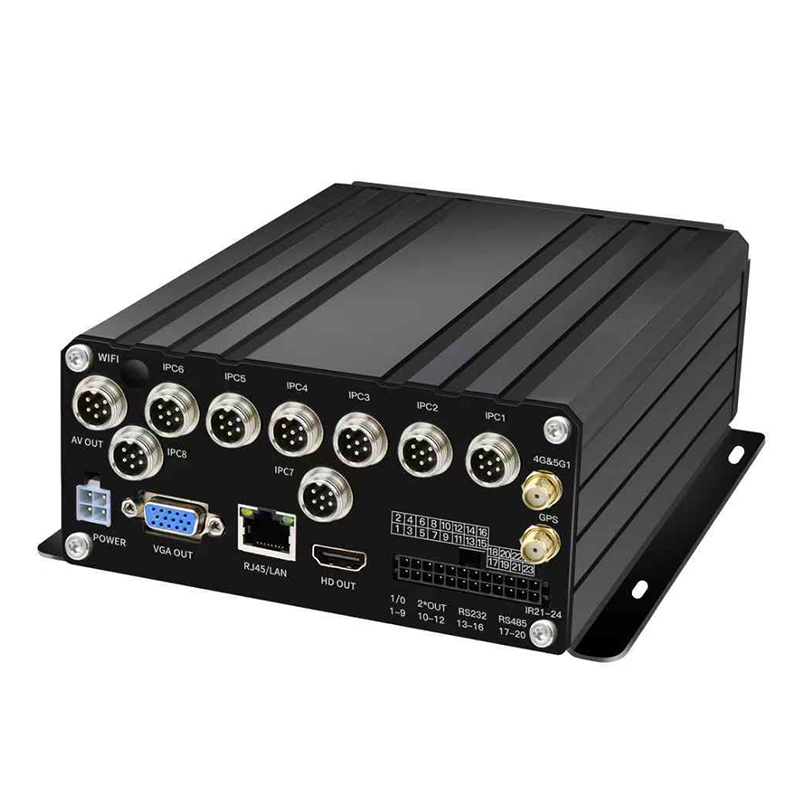

The 8-channel (8-way)vehicle mobile NVR accommodates 4 IPC channels and 4 AHD channels, for a total of 8 channels. The 8CH IPC+AHD HDD Mobile NVR features a standard 2.5-inch SATA hard drive bay for storing video from all cameras. Designed for in-vehicle use, the 8CH 1080P AHD IPC mobile NVR features ignition sensing, shock resistance, a wide voltage input, and built-in GPS, 4G, and Wi-Fi. AHD cameras are suitable for areas with long coaxial cable runs or high electromagnetic interference. IP cameras with PoE use a single network cable to transmit both power and data.
IP cameras offer the highest video quality. Imagine you already have a vehicle with four AHD cameras installed. You can purchase this 8CH IPC+AHD HDD Mobile NVR without having to remove all the old coaxial cables and ahd cameras. You can connect the four existing AHD cameras to the NVR's AHD ports, leaving four free IP camera channels. You can add four new high-resolution IP cameras without having to replace your old, still-performing system.
8CH IPC+AHD HDD Mobile NVR is ideal for specialized vehicles that require a mix of camera types. Law enforcement uses AHD cameras for rugged exterior views and IP cameras for high-resolution interior footage. Public transportation uses existing AHD cameras for exterior surveillance and new IP cameras for detailed passenger compartment monitoring. If you need more details, please feel free to contact us!
