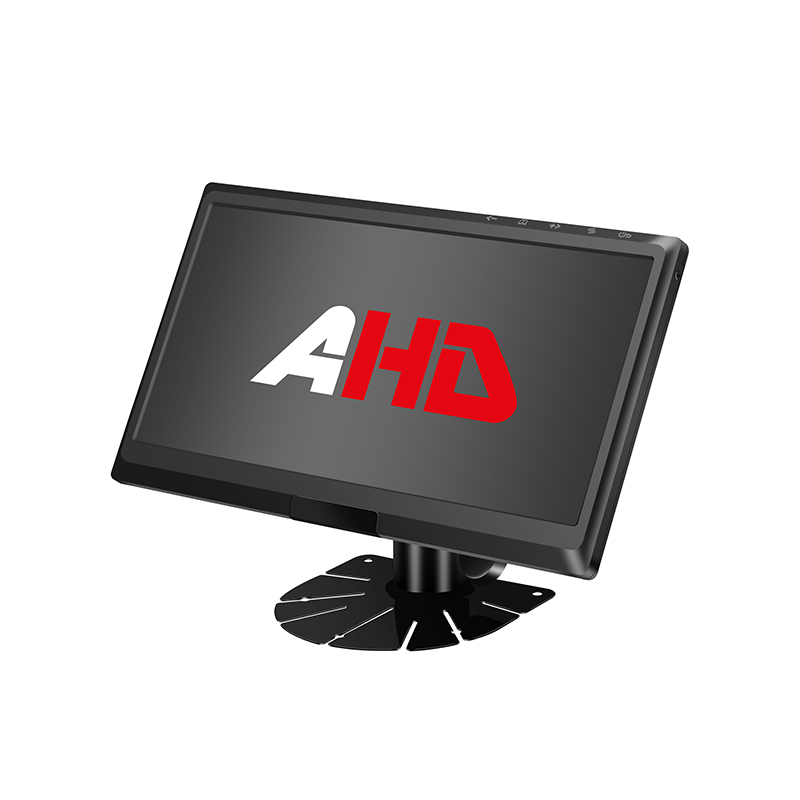

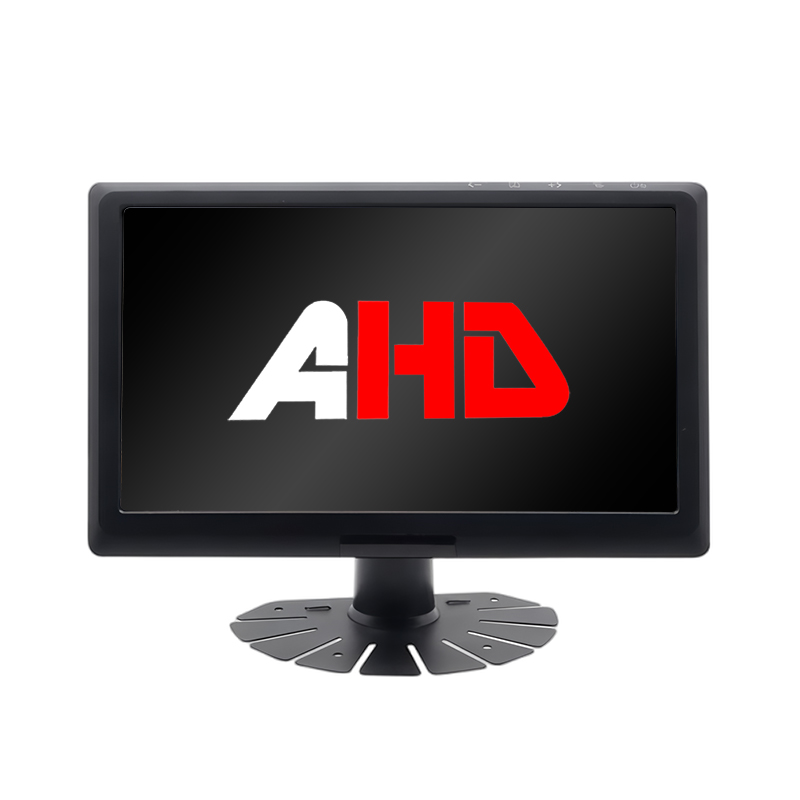

9 Inch AHD IPS Heavy Duty Vehicle Backup Monitor

9 Inch AHD IPS Heavy Duty Vehicle Backup Monitor is a new product of Carleader. This product has a brand new appearance, power shutter ON/OFF, auto dimming, IR remote control and top right corner buttons design.

Model:CL-S930AHD

Send Inquiry

Product Description

This is a 9 Inch AHD IPS Heavy Duty Vehicle Backup Monitor produced by Carleader. The 9-inch IPS screen car monitor can be applied to any heavy duty vehicle, and can be equipped with a complete vehicle CCTV security monitoring system. If you are interested in 9 inch AHD monitor, please feel free to contact us, and we will respond to your needs as soon as possible. We will show us 100% sincerity to cooperate with you. So please don't hesitate to send us an inquiry!

Parameter:

9 Inch AHD IPS Heavy Duty Vehicle Backup Monitor
Model	CL-S930AHD
Screen Type	7 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	450 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If With Speaker)	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel is adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel is adjusted separately (Mirror image as default)
System	PAL / NTSC auto switch
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	22.4 x 14.2 x 3.1 cm
