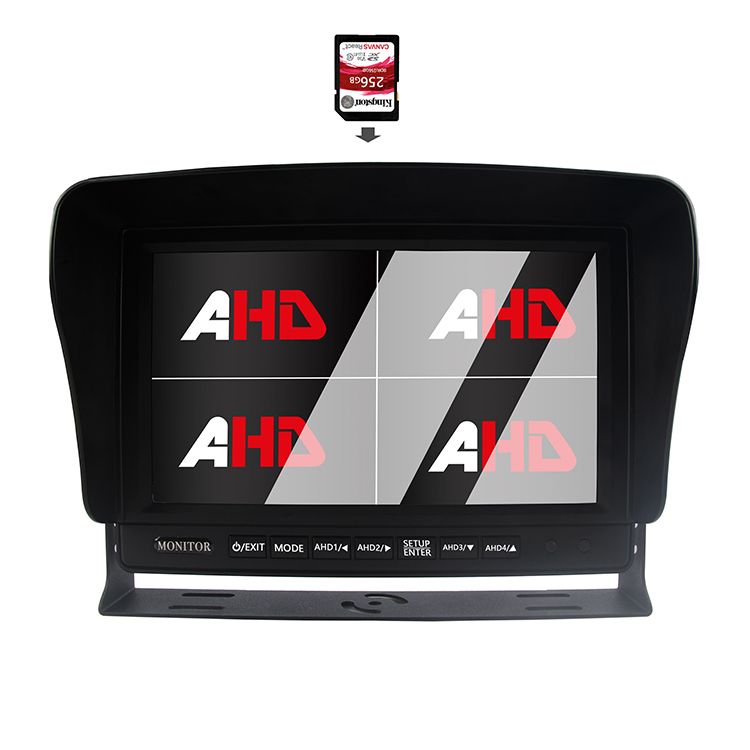

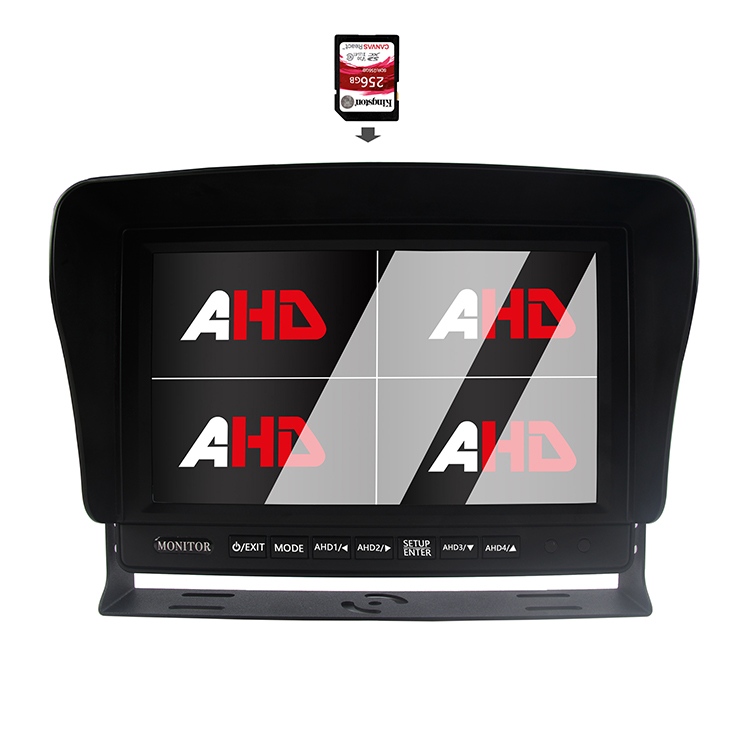

9 Inch Quad Display Truck Video Recording AHD Monitor

Carleader 9 Inch Quad Display Truck Video Recording AHD Monitor, supports simultaneous display of four CVBS/AHD cameras input, comes with 4CH trigger wires, AHD2 has trigger priority. Equipped with SD Card Slot, support loop recording for all 4 channels. Please feel free to contact us to ask and order, if you are interested.

Model:CL-S960AHDQ-SDDVR

Send Inquiry

Product Description

Parameter:

9 Inch Quad Display Truck Video Recording AHD Monitor
Model	CL-S960AHDQ-SDDVR
Screen Type	9 inch IPS LCD Panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	500 cd/m2
Contrast	500 : 1
Video Input	Support 4CH AHD 1080P/720P/CVBS Inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority
System	PAL / NTSC auto switch
Speaker	Built-in Speaker
Audio Mode	Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio.
Loop Recording	Support, SD card data storage up to 256 GB (SD card isn't included in package)
Auto Dimming	Optional (Without as default)
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset Recording Setting, Playback
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	22.8 x 15.6 x 3.3 cm (without shade) 24.5 x 16.4 x 7.8 cm (with shade)
