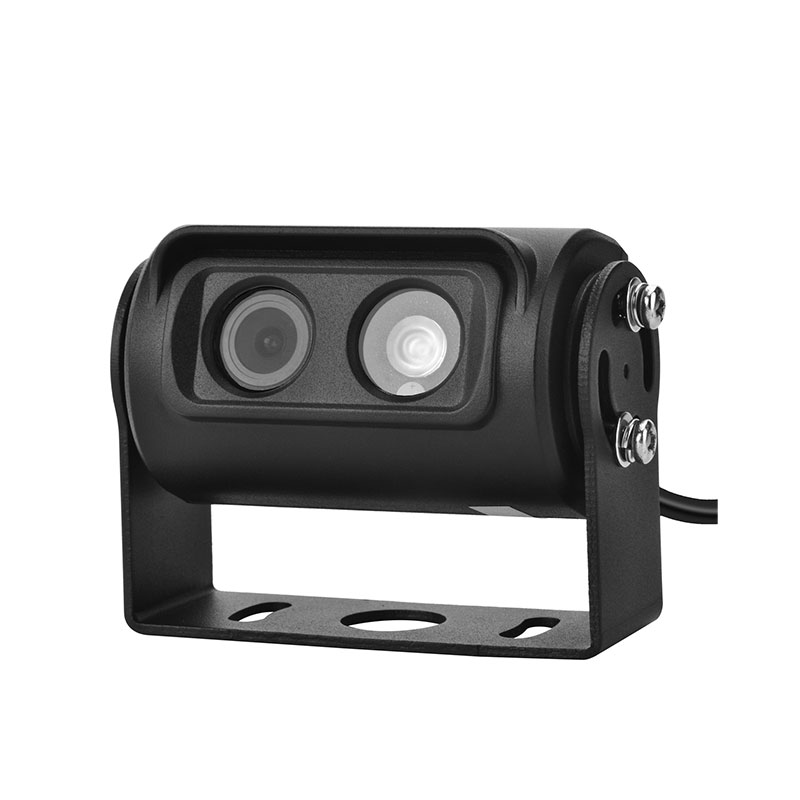

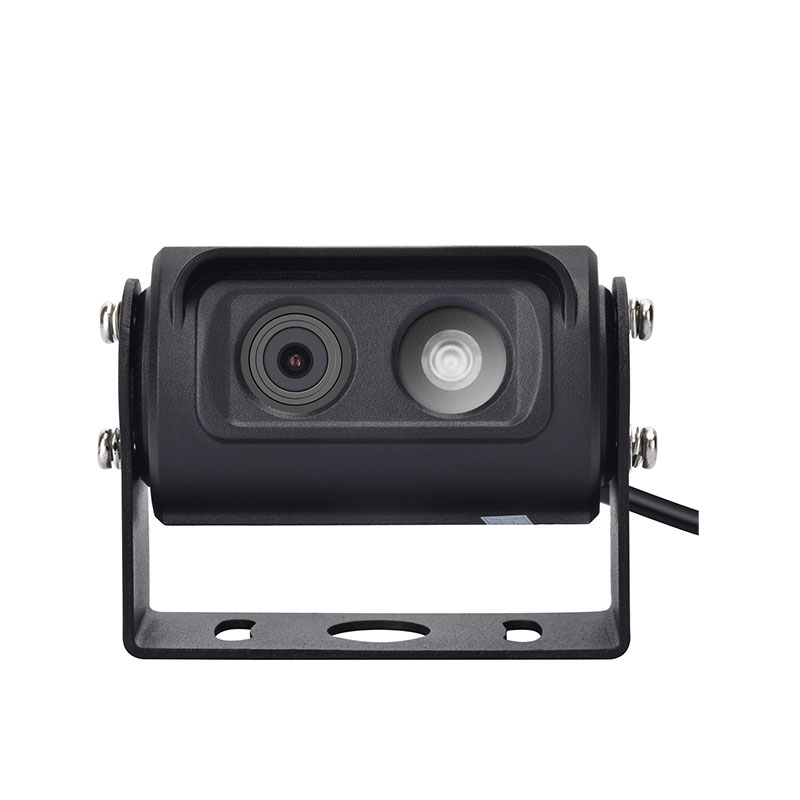

AHD 1080P Front Rear View Camera for Truck and Commercial Vehicles

Features

• Supports AHD1080P, AHD720P and CVBS video options for integration with different vehicle monitoring systems.
• The standard 130° viewing angle provides wide-area monitoring, while the 180° option can be selected when maximum coverage is required.
• The 0.01 LUX vehicle camera is designed for monitoring applications where sufficient ambient light is not always available.
• Mirror and non-mirrored image options make the camera suitable for both front view and rear view vehicle monitoring.
• The IP69K waterproof camera is suitable for exterior vehicle installation and demanding operating environments.
• CVBS, AHD720P and AHD1080P options allow flexible matching with vehicle DVRs and display systems.

Parameter

Product Type: Front / Rear View Vehicle Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirrored Image: Optional

Lux: 0.01 LUX

Lens: 2.8mm

System: PAL/NTSC Optional

Video Output: 1.0Vp-p, 75 Ohm

S/N Ratio: ≥48dB

View Angle: 130°,180° Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Truck Front View Monitoring

Used as a truck front camera to monitor the road ahead and improve driver visibility.

• Vehicle Rear View Monitoring

Used as a vehicle backup camera for rear monitoring and parking assistance.

• Fleet Surveillance

Suitable for fleet monitoring cameras used by logistics and transportation companies.

• Bus Monitoring

Can be installed on buses for front or rear video surveillance.

• Commercial Vehicle DVR

Works with mobile DVR and vehicle DVR systems for video recording and fleet surveillance.

FAQ

Q1: Can this camera be used for both front and rear view?

Yes. The camera supports both front and rear vehicle monitoring applications, with mirror and non-mirrored image options.

Q2: Does it support AHD 1080P?

Yes. AHD1080P is available as an optional video configuration.

Q3: What is the viewing angle?

The standard viewing angle is 130°, with 180° optional.

Q4: Is this camera suitable for outdoor vehicle installation?

Yes. The camera has an IP69K waterproof rating and is designed for vehicle monitoring applications.

Q5: Can it be used as a truck backup camera?

Yes. It can be used as a truck backup camera, rear view camera or front view camera depending on the installation configuration.
