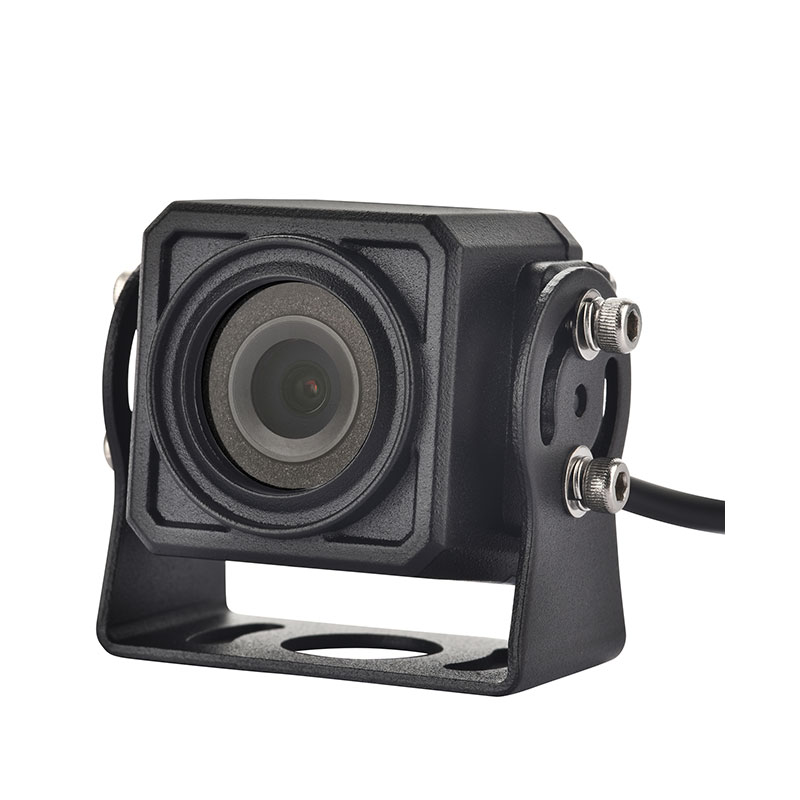

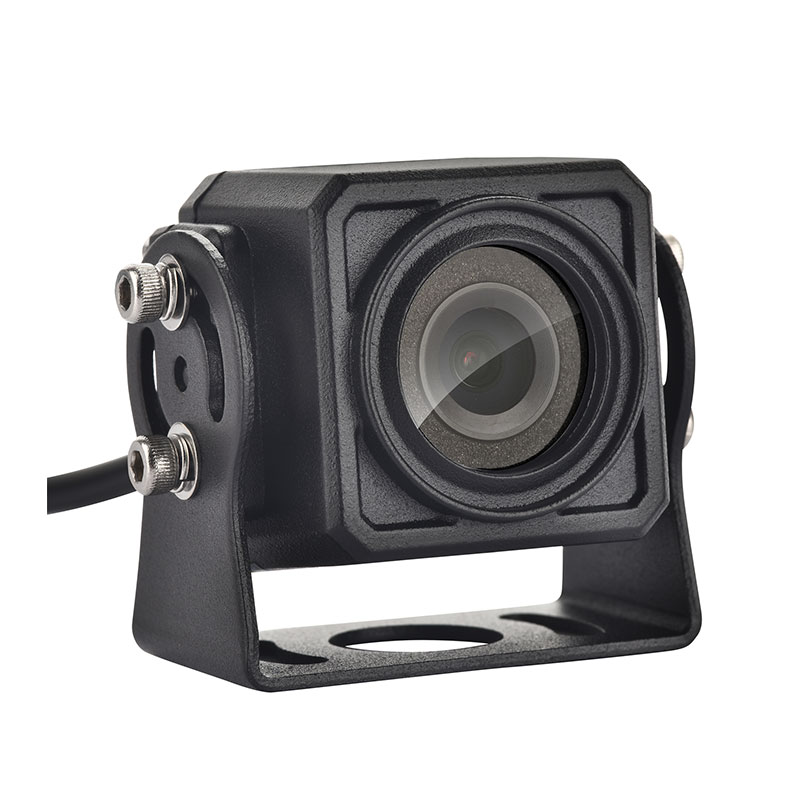

AHD 1080P Starlight Front Rear View Camera with IP69K Waterproof

Product Features

• The Starlight Night Vision function is designed to provide a color image under low-light conditions, making the camera suitable for night vehicle monitoring and commercial transportation applications.
• The camera supports AHD1080P, AHD720P and CVBS, allowing flexible integration with different vehicle monitors, DVRs and video surveillance systems.
• The 110° viewing angle combined with the 2.8mm lens provides wide-area coverage for front, rear or side vehicle monitoring.
• The IP69K vehicle camera is designed for exterior installation and demanding operating conditions where protection against water and environmental exposure is required.
• Mirror and non-mirrored image options allow the same vehicle backup camera to be used in different mounting positions.
• A built-in microphone is available as an optional configuration for applications requiring audio capture.

Product Parameters

Product Type: Starlight Side / Front / Rear View Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirrored Image: Optional

Lens: 2.8mm

Lux: 0.1 LUX

Starlight Night Vision: Color Image

View Angle: 110°

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Truck Front View Camera

Used as a truck front camera to provide additional visibility around the front of commercial trucks.

• Truck Rear View / Backup Camera

The camera can be installed as a truck backup camera or rear view camera and connected to an in-vehicle display.

• Bus Camera

Suitable for front, rear or side monitoring on buses and passenger transportation vehicles.

• Commercial Vehicle Monitoring

Used as a commercial vehicle camera for logistics vehicles, delivery vehicles, construction vehicles and transportation fleets.

• Fleet Surveillance System

The camera can work together with a vehicle DVR, mobile DVR and fleet monitoring system for professional fleet surveillance.

• Side View Monitoring

The compact housing and wide-angle lens make it suitable for vehicle side view monitoring where additional visibility is required.

FAQ

Q1: Is this a 1080P vehicle camera?

Yes. The camera supports AHD1080P as an optional video configuration, as well as AHD720P and CVBS.

Q2: Can it be used as a truck backup camera?

Yes. It can be configured as a truck backup camera, rear view camera or front view camera.

Q3: What is the viewing angle?

This model uses a 2.8mm lens with a 110° viewing angle.

Q4: Does the camera support night vision?

Yes. It features Starlight Night Vision with color image for low-light vehicle monitoring.

Q5: Is it waterproof?

Yes. The camera features an IP69K waterproof rating for exterior vehicle installation.

Q6: Can it work with 24V vehicles?

Yes. DC12V is standard and 24V is optional.

Q7: Does it support audio?

Yes. A built-in microphone is available as an optional configuration.
