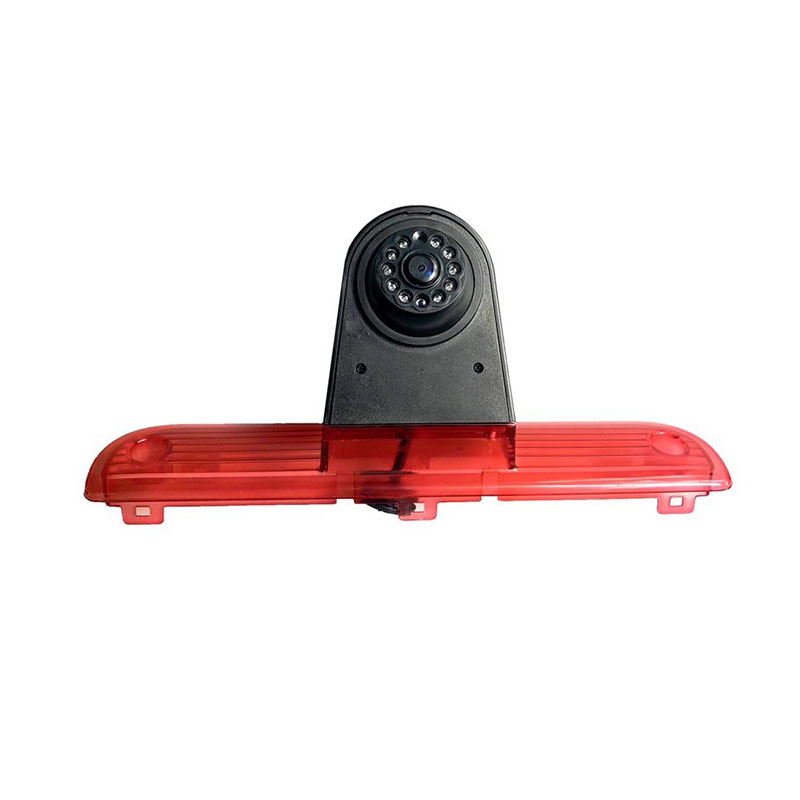

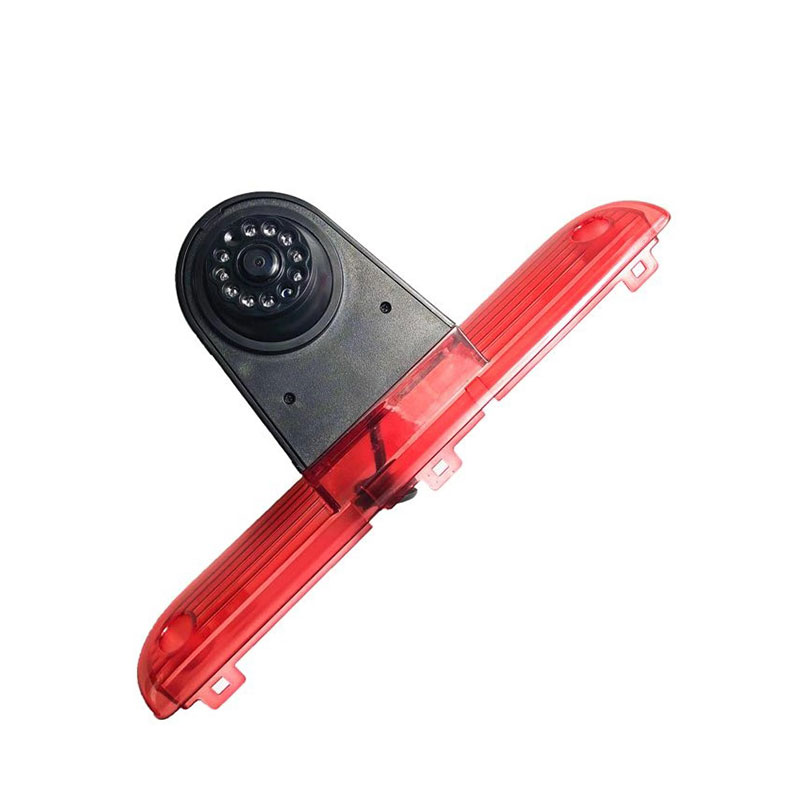

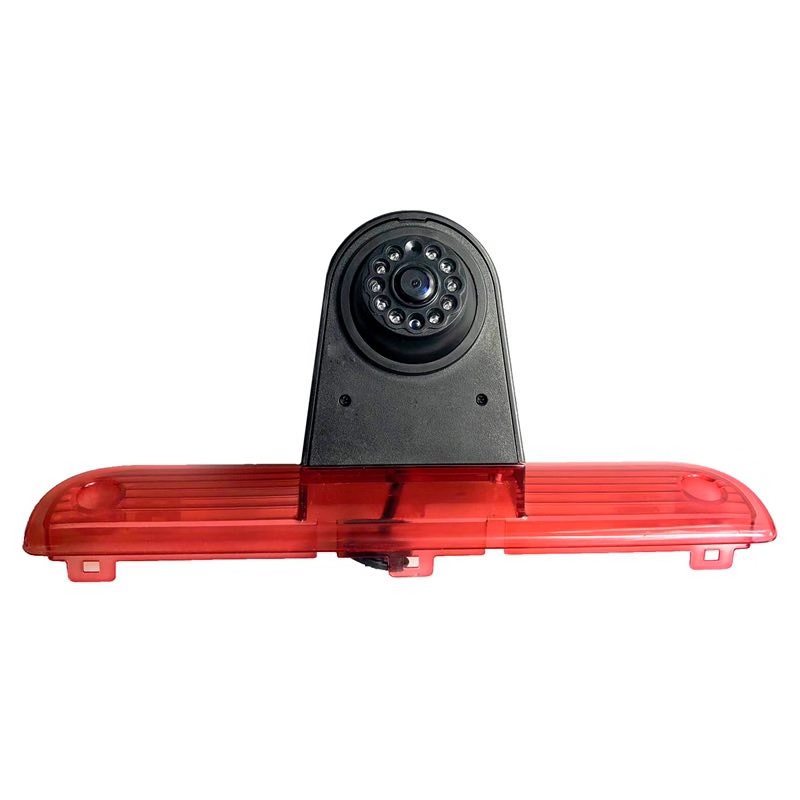

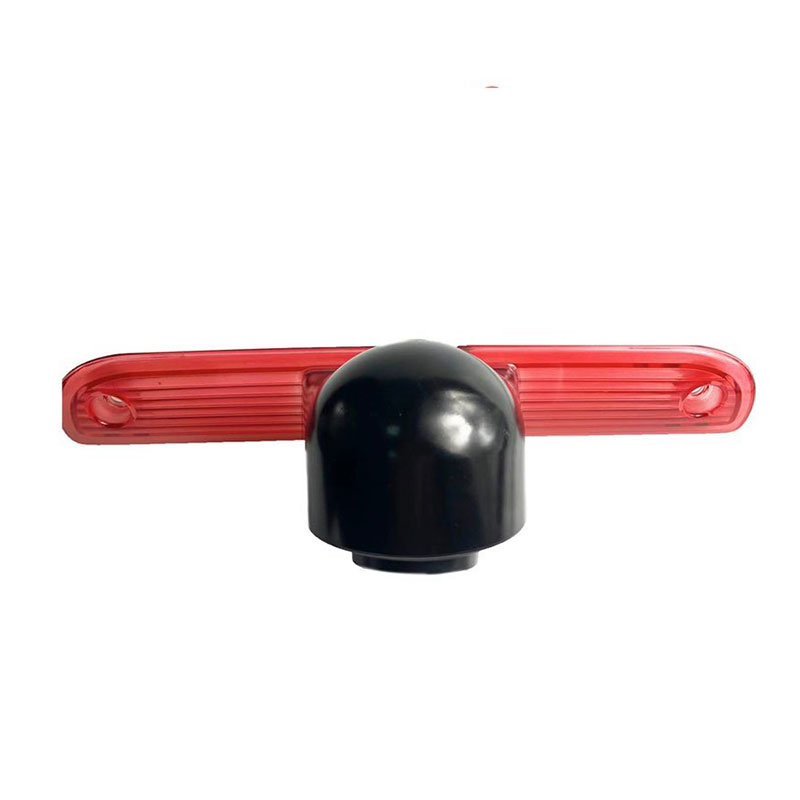

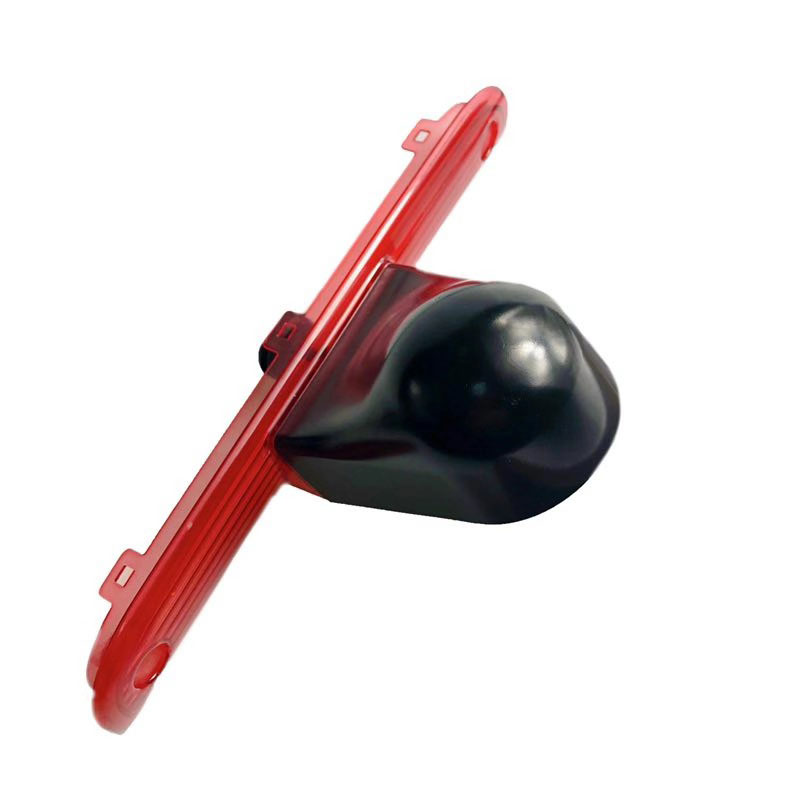

AHD Brake Light Camera For Ducato / Boxer Citroen Jumper Van Backup Camera

Features:

1. The LED Brake Light Camera supports CVBS/720P/1080P optional video output.

2. 2.8mm lens with 120°-140° wide viewing angle improves rear visibility and reduces blind spots.

3. 0.1Lux low illumination with 10pcs IR LEDs supports better night monitoring performance.

4. 4PIN Aviation Connector with RCA  Adapter ensures stable connection and easy installation for vehicle camera systems.

5. IP69K waterproof protection supports operation in harsh outdoor environments.

Parameter:

Suitable Model: Fiat Ducato, Peugeot Boxer, Citroen Jumper(2006-2018)

Image Sensor: FH8536+2399

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 10 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Application Scenarios

Suitable for:

• Fiat Ducato Van
• Peugeot Boxer Van
• Citroen Jumper Van
• Delivery vehicles
• Cargo vans
• Commercial vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring

FAQ

Q1: Which vehicles does this Brake Light Camera fit?

A: It fits Fiat Ducato, Peugeot Boxer and Citroen Jumper models from 2006-2018.

Q2: Does it replace the original brake light?

A: Yes, it integrates the third brake light and rear view camera functions.

Q3: Does it support 1080P video?

A: Yes, CVBS/720P/1080P optional video output is available.

Q4: Is it suitable for commercial vans?

A: Yes, it is designed for cargo vans, delivery vehicles and fleet applications.

Q5: How does it connect with the monitor?

A: It uses a 4PIN Aviation Connector with RCA Adapter for easy installation.
