AHD Brake Light Camera For Ford Transit 2006-2013 Van Backup Camera

Features:

1. Third Brake Light Camera supports CVBS/720P/1080P optional video output.

2. 1.7mm lens provides 120°-140° wide viewing angle for better rear visibility.

3. 0Lux low illumination performance supports clear monitoring in different lighting conditions.

4. IP69K waterproof protection supports commercial vehicle outdoor operation.

Parameter:

Compatible Vehicle: Ford Transit(2006-2013)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Product Quality Inspection

Product Details Display

Recommended images:

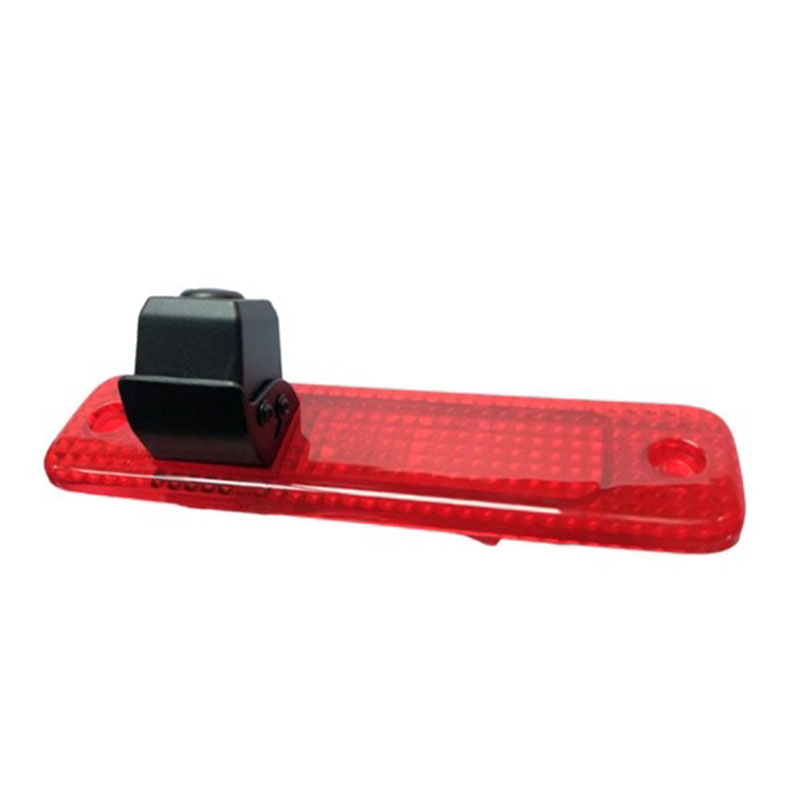

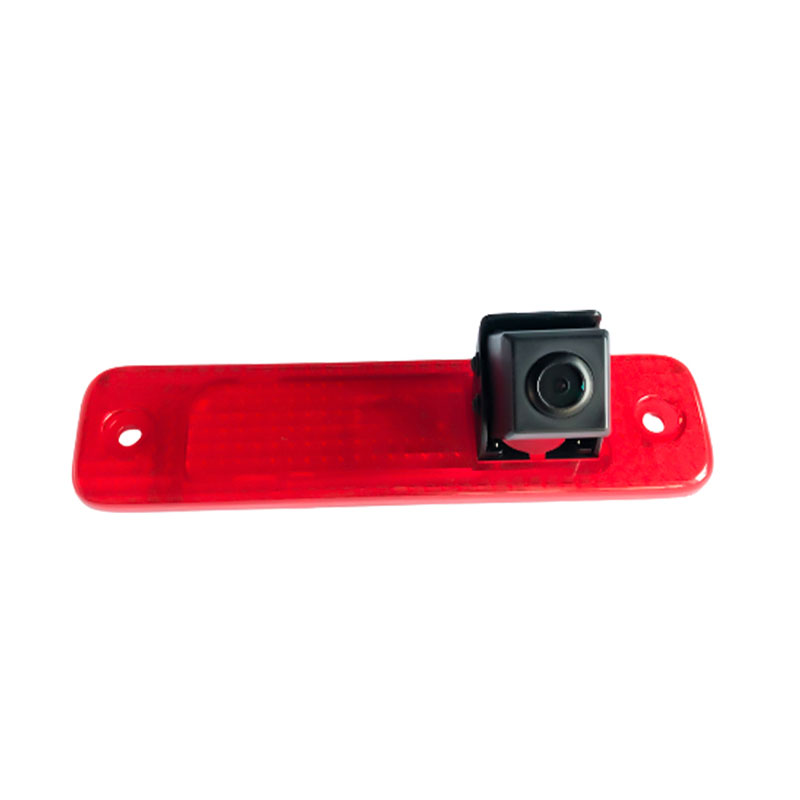

• Front view of brake light camera

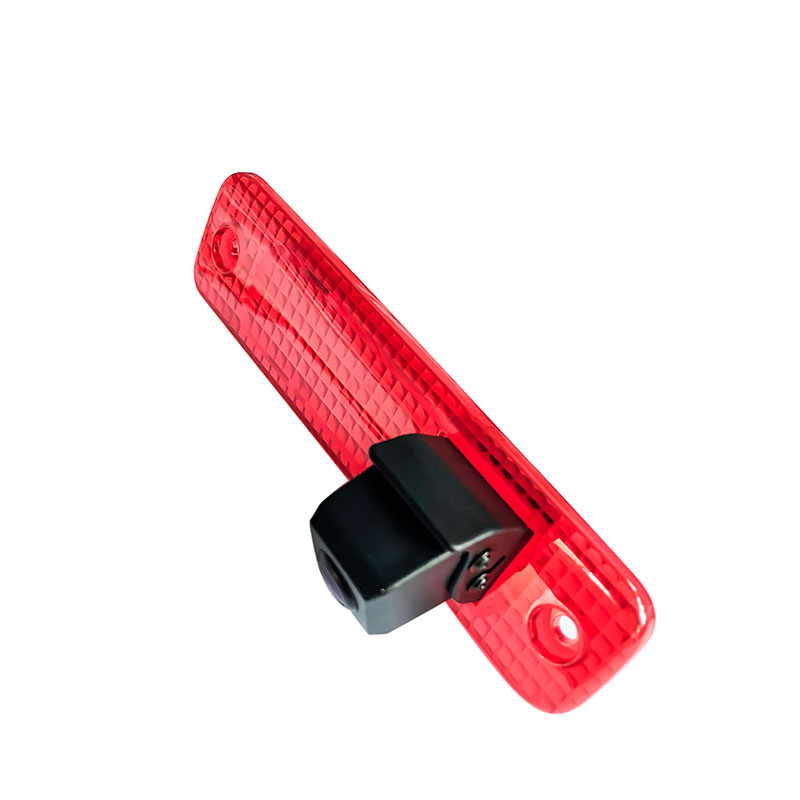

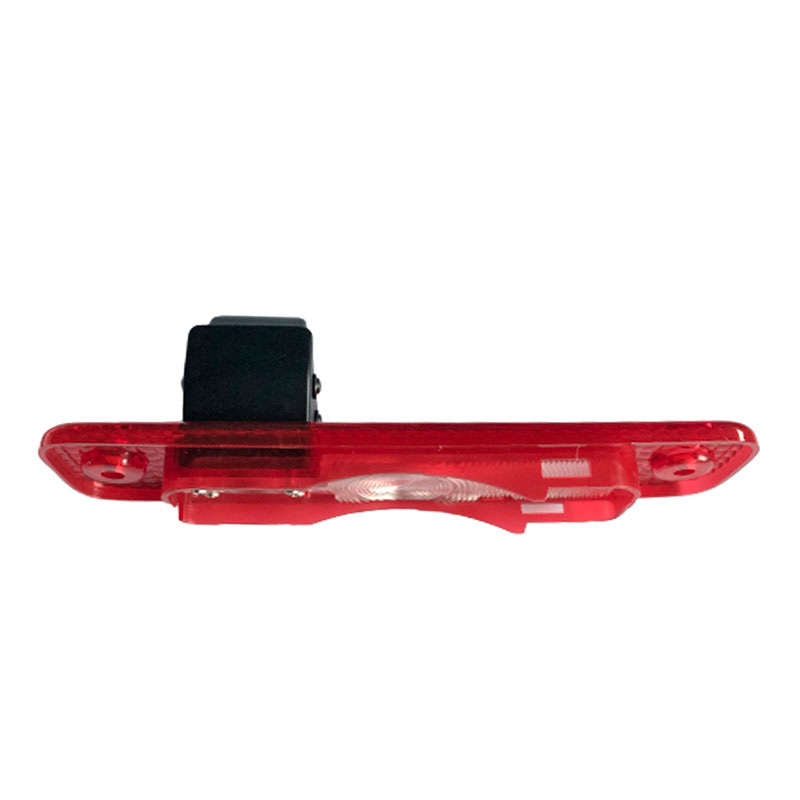

• Rear housing details
• Camera lens close-up
• Connector and cable display
• Installed on Ford Transit vehicle

Testing Process

Each Brake Light Camera is tested before shipment:

• Camera image quality test
• Video signal transmission test
• Power supply stability test
• Waterproof and dust resistance test
• Connector reliability test
• Aging test

FAQ

Q1: Which vehicle does this Brake Light Camera fit?

A: This camera is designed for Ford Transit 2006-2013 Van.

Q2: Does it replace the original third brake light?

A: Yes, it is installed in the original third brake light position and provides rear camera functionality.

Q3: Does this model include LED brake light?

A: No. This model is a bracket without LED light version.

Q4: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q5: Is this camera waterproof?

A: Yes, it features IP69K waterproof protection for commercial vehicle applications.
