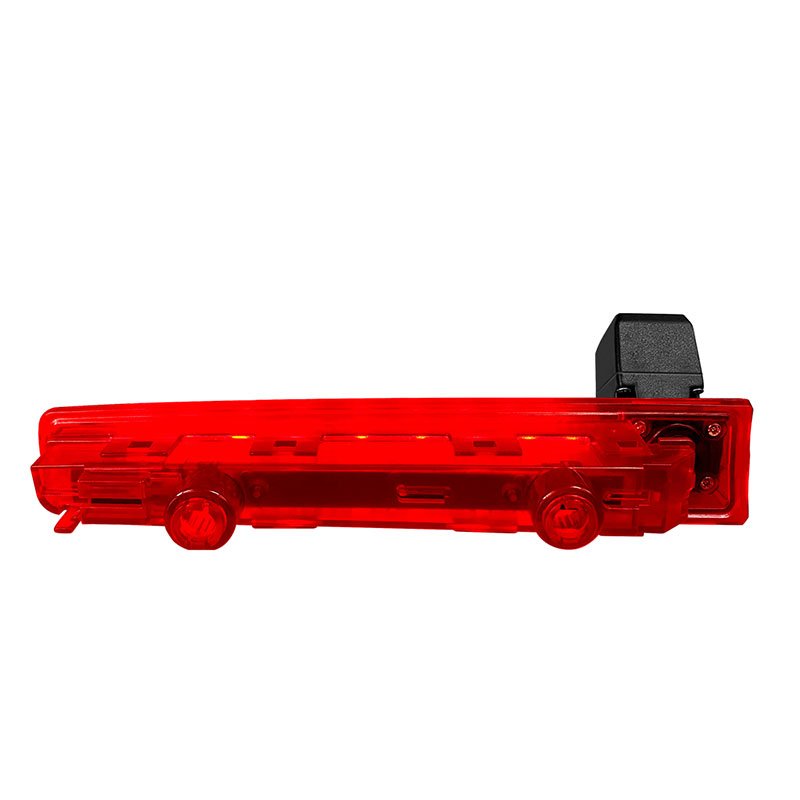

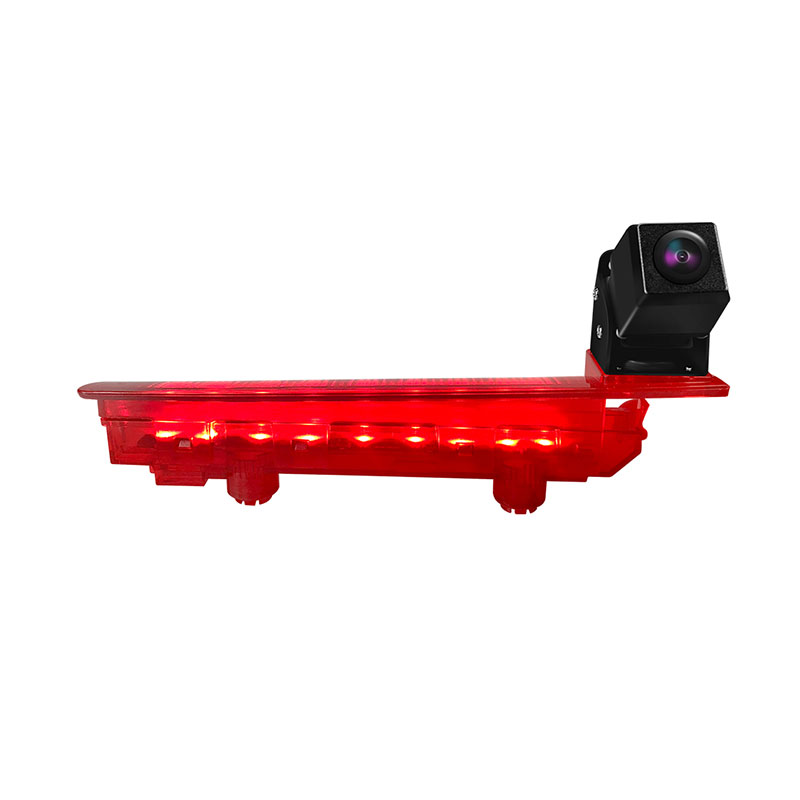

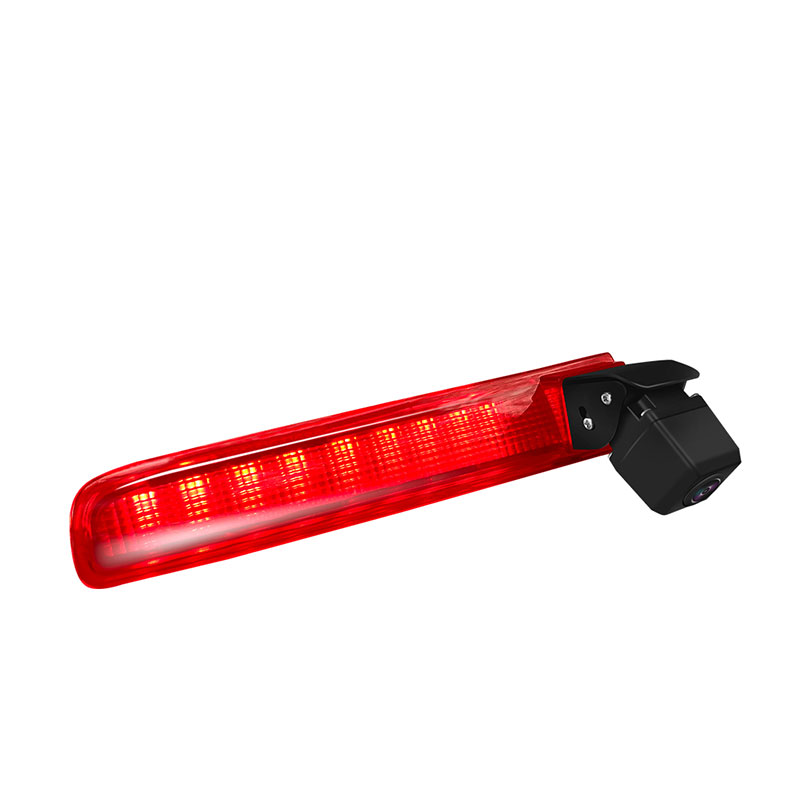

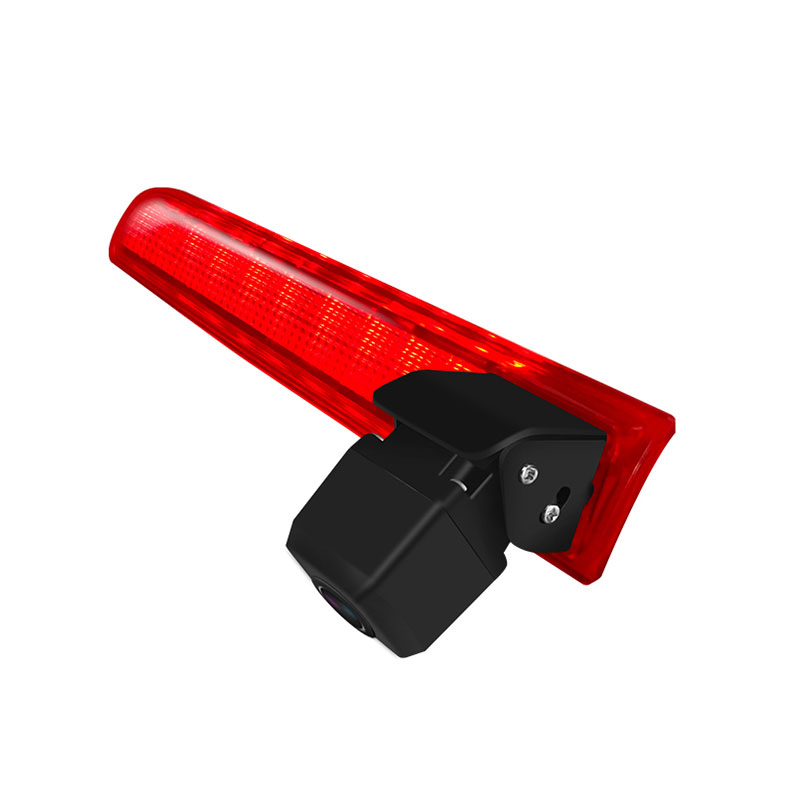

AHD Brake Light Camera For VW T5 T6 Van Double Door 2010-Current With LED Light

Carleader AHD Brake Light Camera For VW T5 T6 Van Double Door 2010-Current With LED Light, which is a vehicle-specific rear view camera solution designed for Volkswagen T5 and T6 vans. This Brake Light Camera integrates the original third brake light position with a rear view camera. The rear view camera with CVBS/720P/1080P optional video output, 120°-140° wide viewing angle and IP69K waterproof design, this camera delivers stable performance in different vehicle environments.

Features:

1. AHD Brake Light Camera designed for VW T5 and T6 vans combines LED brake light and rear view camera functions.

2. Rear View Camera supports CVBS/720P/1080P optional resolution for clear rear monitoring.

3. VW T5 T6 Backup Camera provides 120°-140° wide viewing angle for improved reversing visibility.

4. 0Lux low illumination performance supports reliable image display in different lighting conditions.

5. 4PIN Aviation Connector with RCA Adapter ensures easy connection and installation for vehicle camera systems.

6. IP69K waterproof Commercial Vehicle Camera provides reliable operation in harsh environments.

Parameter:

Suitable Model: VW T5 / T6 Double Door (2010-Current)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional

FAQ

Q1: Which vehicle models does this Brake Light Camera fit?

A: This model is designed for VW T5/T6 Double Door vans from 2010-Current.

Q2: Does this camera support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q3: Does it work at night?

A: Yes. The camera supports 0Lux low illumination performance for low-light conditions.

Q4: Does it include the brake light function?

A: Yes. The camera is integrated with LED brake light function.

Q5: How is the connection made?

A: It uses a 4PIN Aviation Connector with RCA  Adapter for easy installation and compatibility with vehicle monitors.
