AHD Colour Mini Dome Camera

Carleader is an expert of AHD Colour Mini Dome Camera in China. We can develop and customize production. We will respond to customers' needs as soon as possible and look forward to cooperating with you.
Model:CL-911

Send Inquiry

PDF DownLoad

Product Description

This AHD colour mini dome camera is a high quality AHD (Analog High Definition) color camera,using the latest CMOS technology,the camera can produce high definition image with little distortion. Carleader 's dome camera with 15 degree or 25 degree bracket optional. Dome camera with 120 degree wide viewing angle to detect surrounding conditions. DC 12V interior dome camera for vehicle support night vision, The dome car camera is equipped with 10 infrared LED lights to provide clear images in low-light conditions, suitable for use at night or in low-light areas.

AHD dome camera features audio, 120 degree wide angle view, IP66 waterproof and IR night vision. Prefect use for buses, cars and trucks. High-definition digital dome camera can be mounted to the exterior or interior of a vehicle, providing 720P and 1080P high-resolution images, ideal for monitoring blind spot areas.

1080P dome camera


Product specification:

Model:CL-911

Name:AHD Colour Mini Dome Camera

Images Sensors:1/3″CMOS
Power supply:DC 12V ±10%
Resolution(TV Lines):720P/1080P
Electronic Shutter:AUTO
Lux:0LUX (10 LED)
Net weight:200g
Dimension:77mm*60.3mm
Lens:2.8mm
S/N ratio:≥50dB
System:PAL/NTSC optional
View Angle:140°
Audio:optional
Video Output:1.0vp-p,750hm AHD
Ip Rating:IP66
Operating Temperature(Deg. C):-20~+75(RH95% Max.)
Storage Temperature(Deg. C):-30~+85(RH95% Max.)

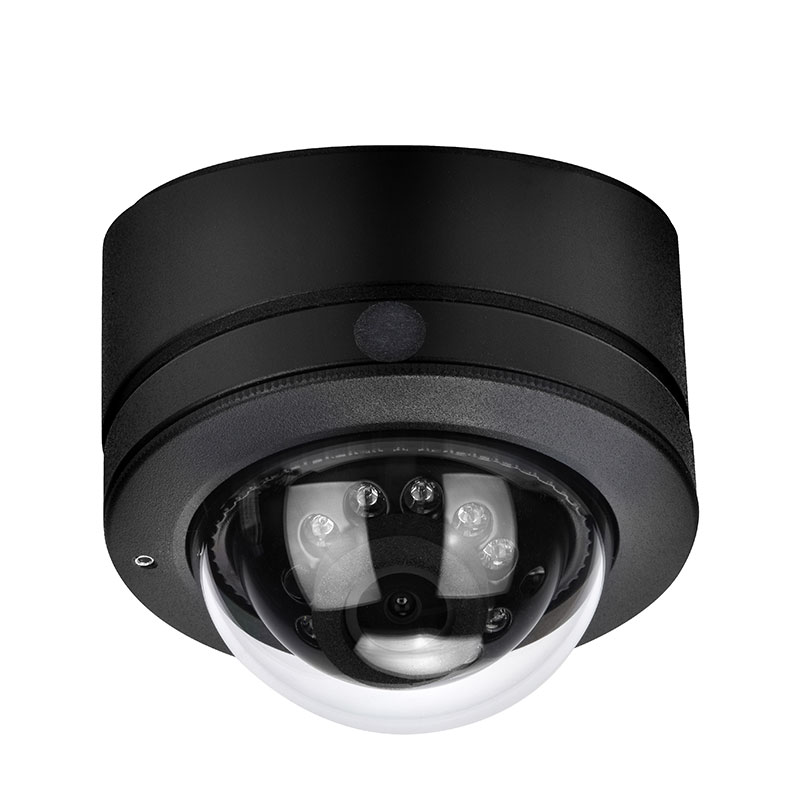

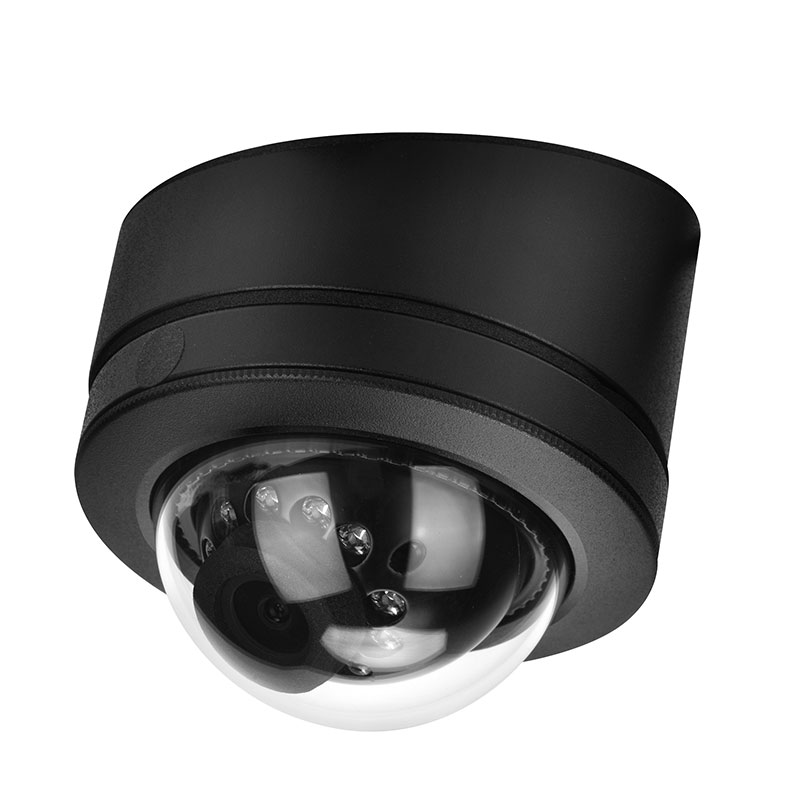

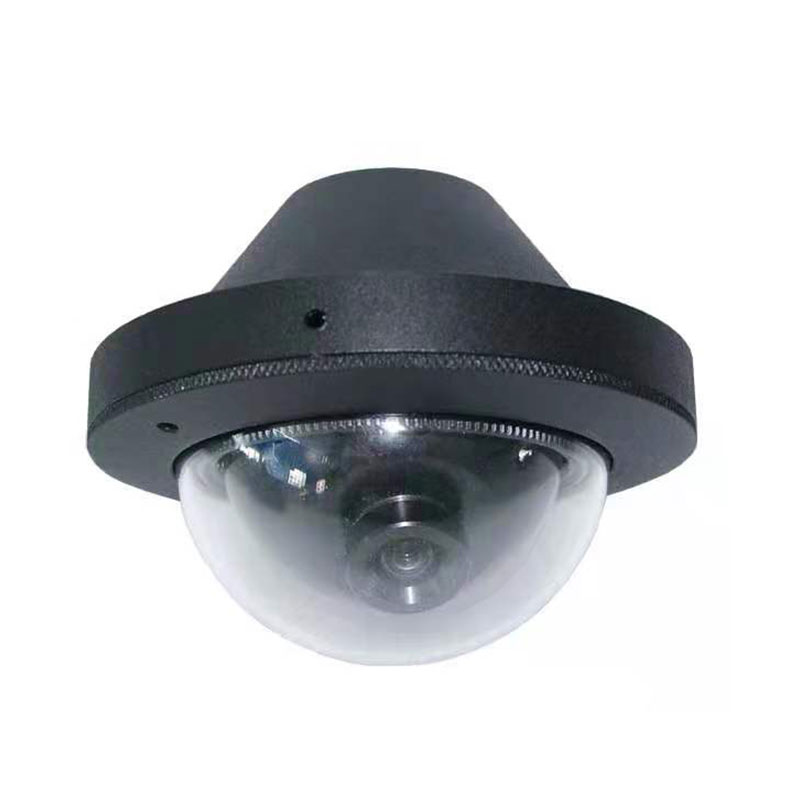

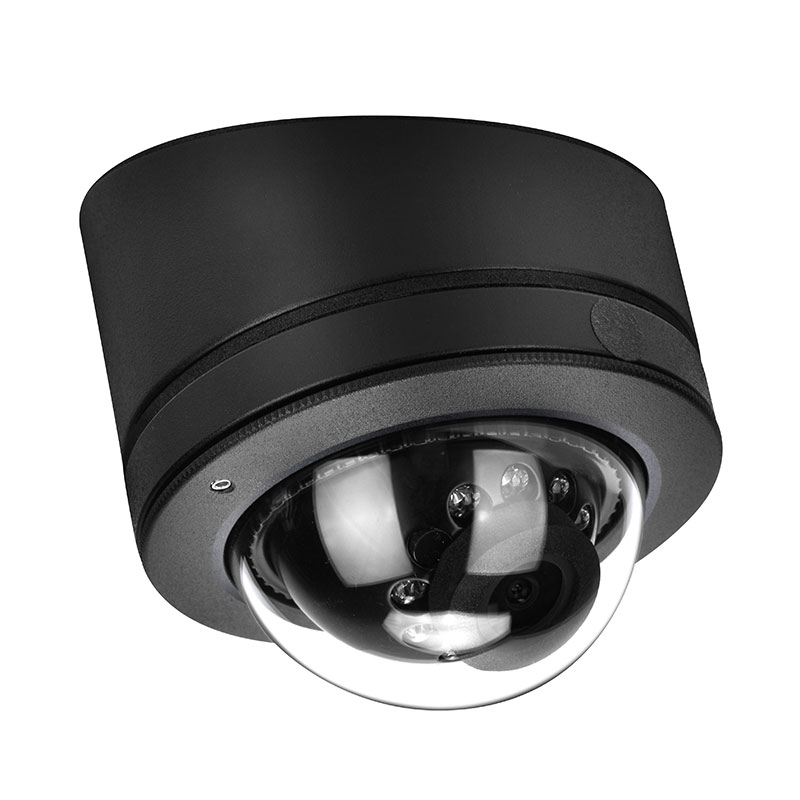

Products Images of AHD Colour Mini Dome Camera

vehicle dome camera


Analog High Definition is a high video definition standard,through the coaxial cable,using the analog modulation technology to transfer progressive-scan HD Video signal.AHD system is same as traditional analog system,using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss. For more details, please feel free to contact us!
