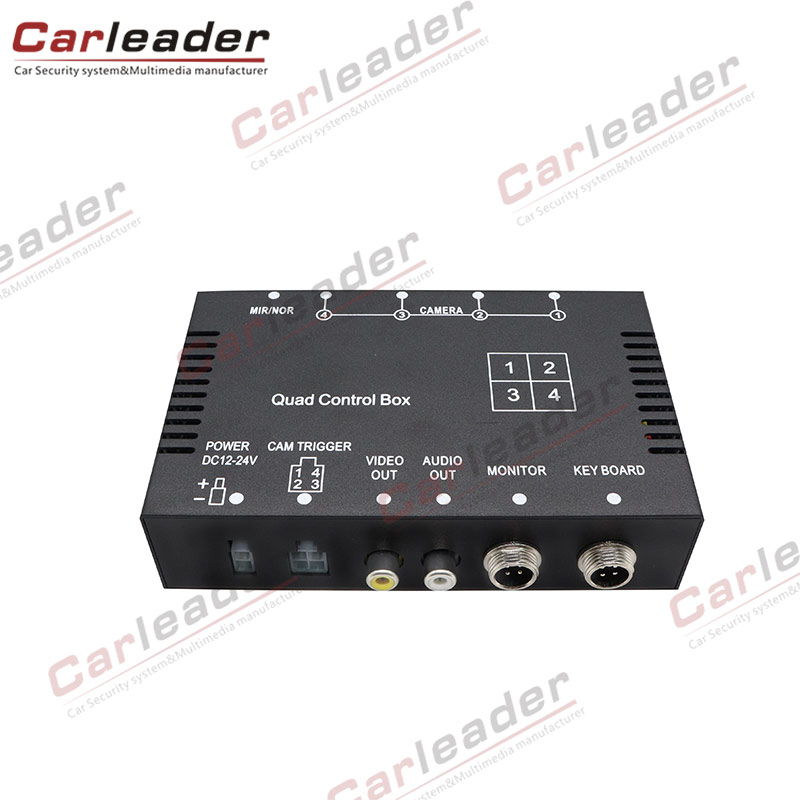

AHD Quad View Split Box Video Processer

Carleader AHD Quad View Split Box Video Processer, which can support four AHD 720P/1080P camera and four D1 camera. perfect for single monitor achieve 4 channels display.

Specification:

Support 4CH 1080P/720P/CVBS camera input and automatically segment the image

Output video resolution: AHD (720P) / CVBS

4CH camera can be triggered separately and displayed in full screen automatically

Priority display level CAM1/CAM2/CAM3/CAM4

Output power to cameras and LCD(12V)

Each image normal/mirror function can be set separately

Box working voltage :9V-32V

High and low voltage and overload protection

Video output connector: RCA/4P aviation

Support 720P/CVBS audio output

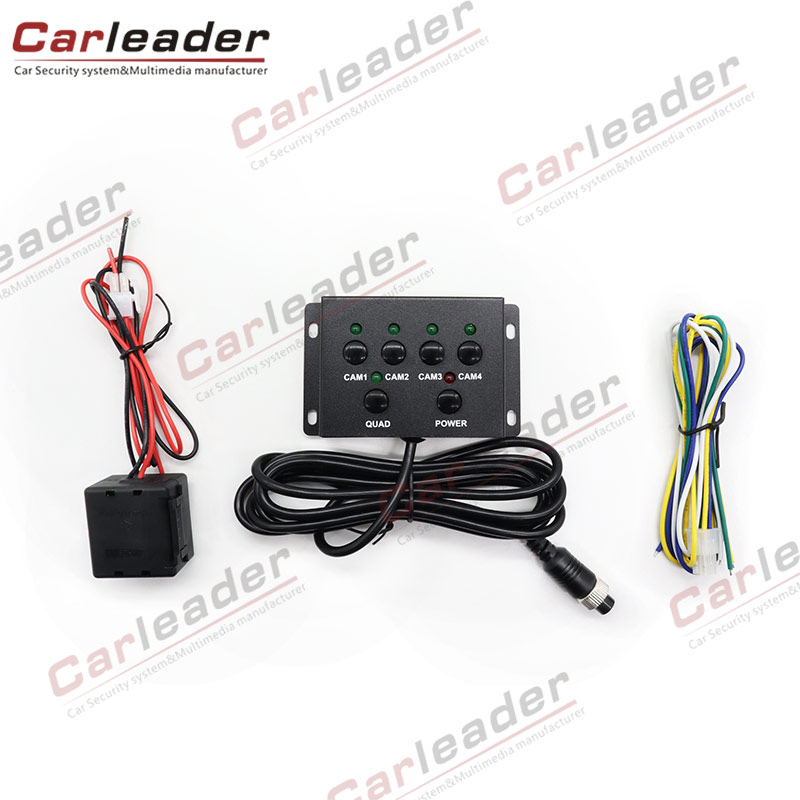

Can choose image of any channel of 4 cameras by trigger wire or hand

After cancelling trigger.the image is delayed for 2 sec. and returns to the state before the trigger

Support PAL/NTSC video format

Can automatically switch 2-Split or 3-Split image if only connect two or three cameras

Dimension: 155*87*32mm
