AI BSD Pedestrian and Vehicle Detection Vehicle Camera System

Carleader AI BSD Pedestrian and Vehicle Detection Vehicle Camera System a high performance 7 inch AI BSD System which support pedestrian and vehicle detection and alarm the driver. camera with a USB port WIFI module, allow user to adjust AI function calibration and camera basic setting with cellphone via WIFI connection, including resolution option, detection area calibration, alarm audio type and volume, detection trigger sensitivity, detection object option, etc. Help user to fit their vehicle better via adjusctment.

Parameter:

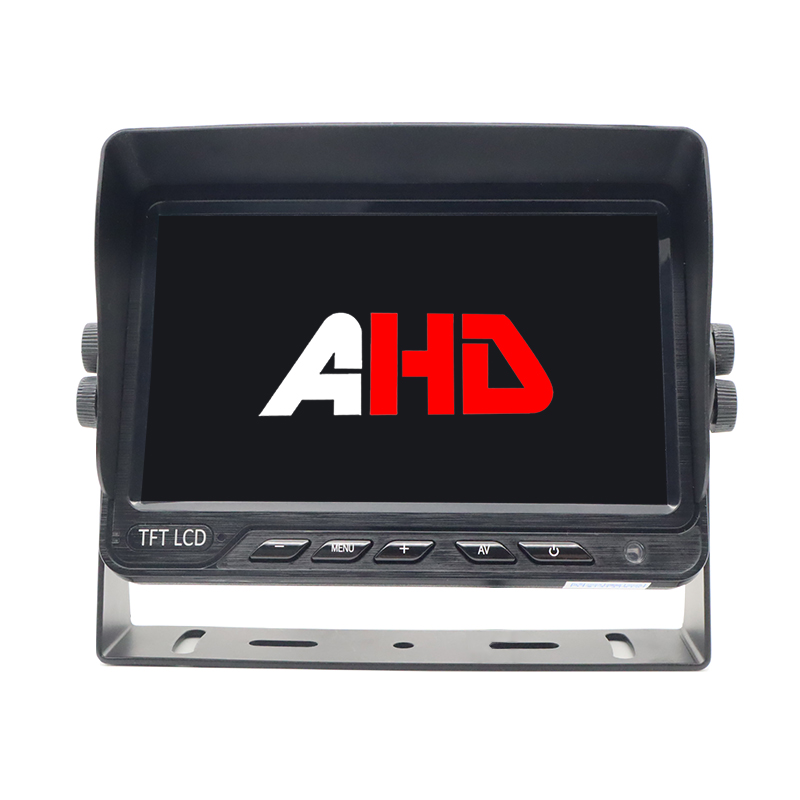

Monitor:

New digital Innolux panel

2 video input with 2 trigger wire(default) 3 video input (optional)

Trigger priority: AHD2

Video input format: 720P/1080P HD25/30fps PAL/NTSC

Connector: 5PIN aviation connector

Resolution: 1024xRGBx600

Built-in speaker

All buttons with backlight.

Resolution: 1024xRGBx600

Power supply: DC9V-32V

Detachable sunshade

Metal U type bracket(default)

Dimension:17.8x12x2.7cm( without shade)

                17.8x12x5.5cm (with shade)

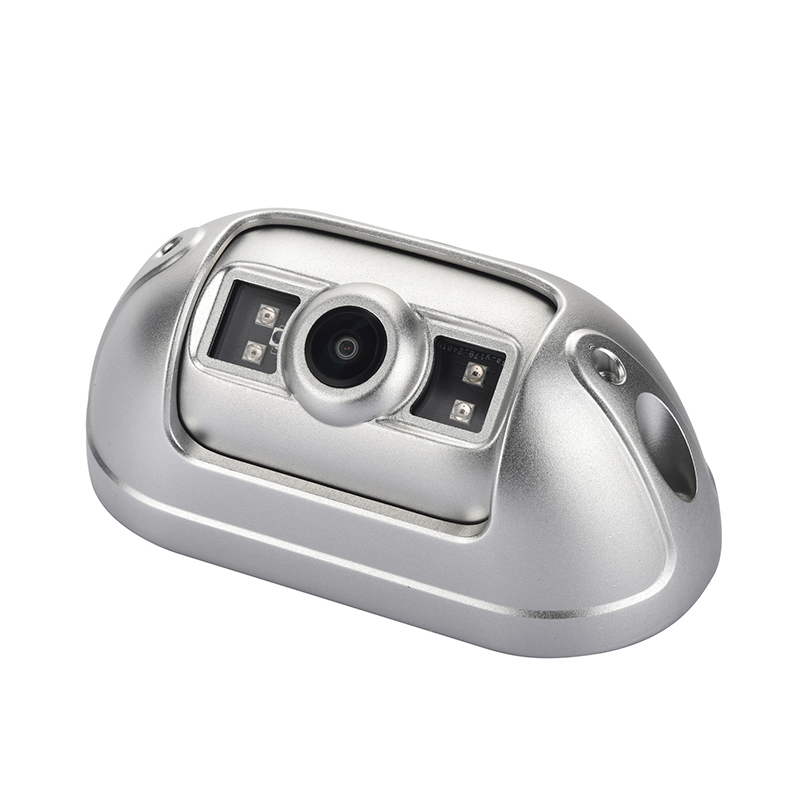

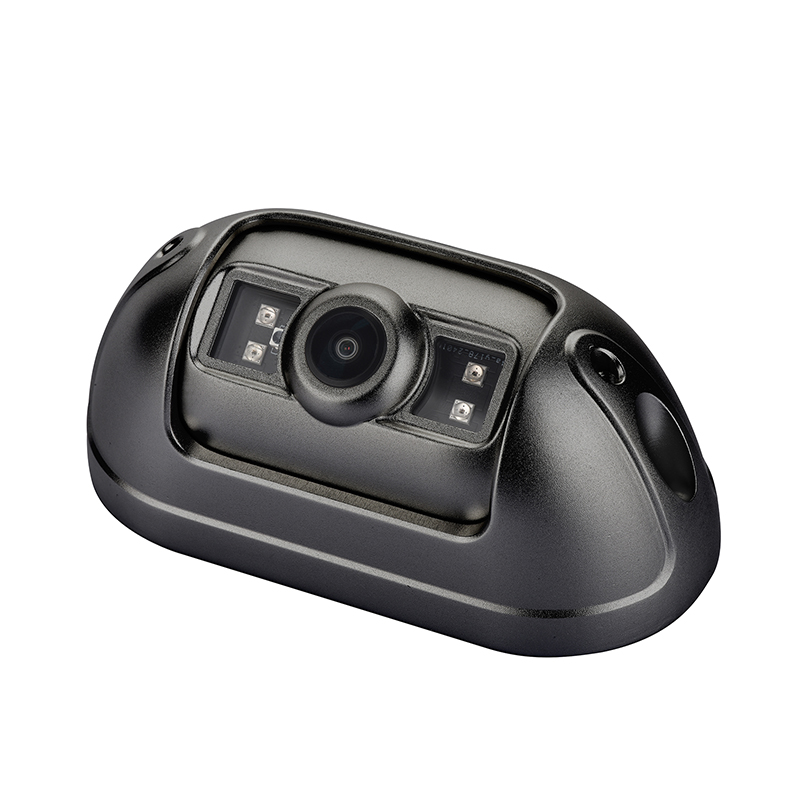

Images Sensor: 1/2.9 "CVBS

Effective Pixels:1920 (h) x 1080 (v)

Resolution:1080P

Synchronous system: Auto

Video output: 1.0vp-P, 75ohm

AGC: Auto

Dynamic Response: 81DB

White Balance: Auto

System: PAL/NTSC 25/30 FPS

BLC: Auto

Booting time:7s

Waterproof level: IP69K

Horizontal angle:150 °

Audio: Built-in

Image mode: Mirror//Normal

Power Supply: DC 12V.(24V optional)

Operating temperature: –20 ℃ ~ 70 ℃, RH95%MAX

Storage temperature: –40 ℃ ~ 80 ℃, RH95%MAX
