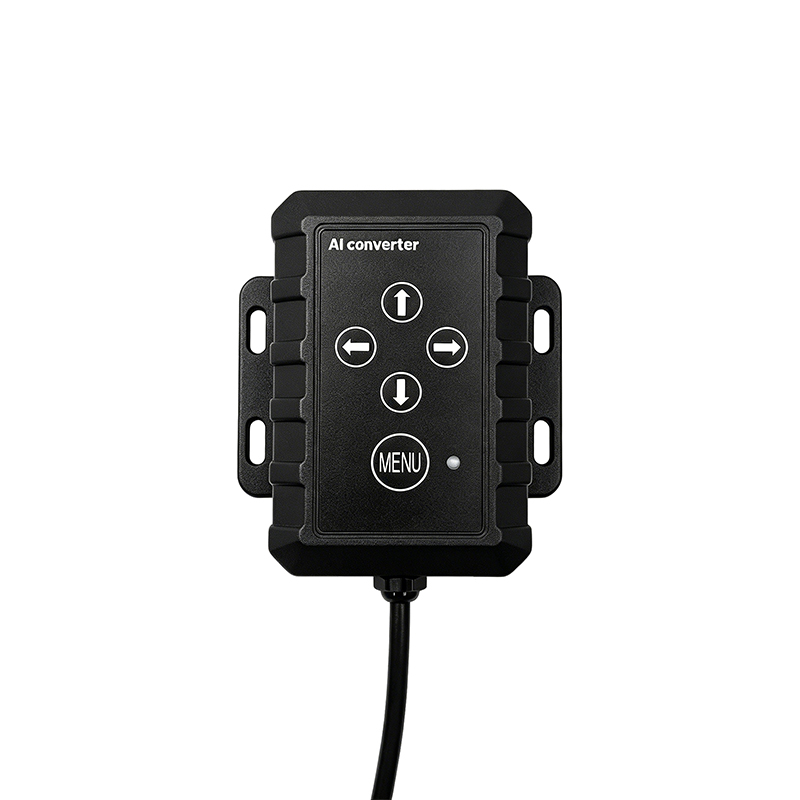

AI Camera Converter for CVBS AHD Cameras with Pedestrian and Vehicle Detection

The AI Camera Converter is designed to add AI recognition functionality to compatible existing vehicle camera systems. Instead of replacing every camera with a dedicated AI camera, users can evaluate this converter as an additional processing device for supported CVBS, 720P and 1080P video sources. Its built-in AI algorithm supports pedestrian and vehicle detection, while configurable installation modes and detection zones help adapt the system to different camera positions and vehicle layouts.

Product Advantages

1. Add AI Detection to Compatible Camera Systems

The converter provides an option for projects seeking to add AI pedestrian and vehicle recognition to existing compatible camera installations. This may reduce the need to replace every camera, depending on the existing system's video signal, wiring and compatibility.

2. Three Configurable Detection Modes

Users can select combined pedestrian and vehicle detection, pedestrian-only detection or vehicle-only detection. These options help tailor the converter to different monitoring requirements.

3. Adjustable Detection Zones

The detection area's side and shape can be adjusted. This is useful when the camera's mounting position or the area requiring monitoring differs between front, rear and side installations.

4. Multiple Camera Signal Options

CVBS, 720P and 1080P camera input support gives buyers flexibility when evaluating the converter for different existing camera systems. Configurable output options further support integration planning.

5. Installation-Oriented Image Settings

Mirror and flip functions help adapt the displayed image to the selected camera position and mounting orientation, supporting different vehicle installation layouts.

6. External Alarm Output

The dedicated green alarm output wire provides an interface for a compatible external alarm circuit. The required alarm device and wiring should be confirmed during system design.

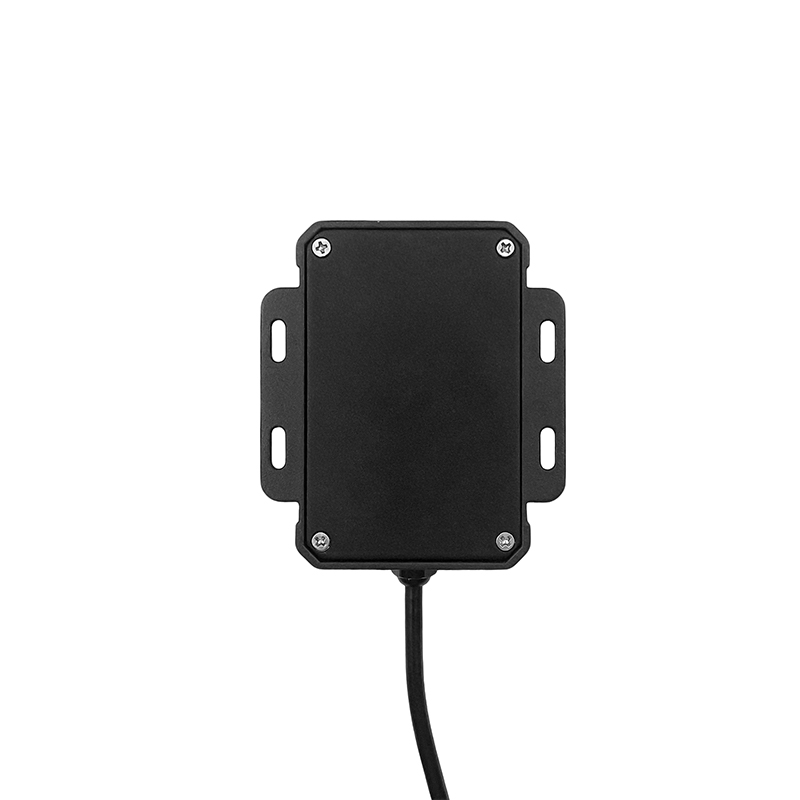

7. Compact Aluminum Alloy Housing

The 98 × 86 × 25 mm housing and four fixed installation holes support integration into vehicle equipment layouts where mounting space needs to be considered.

Commercial trucks: Add AI pedestrian and vehicle detection to compatible vehicle camera systems.

Fleet safety projects: Evaluate AI detection upgrades for existing fleet camera installations.

Side blind spot monitoring: Configure detection according to the left or right camera position.

Rear monitoring systems: Add AI detection processing to compatible rear-view camera setups.

Front camera monitoring: Configure detection for supported front-facing camera installations.

Special-purpose vehicles: Integrate the converter into projects requiring configurable video signals, detection zones and alarm output.

The final application depends on camera compatibility, installation position, monitor input support, wiring and the selected AI detection configuration.

Product Parameters

Product Name: AI Camera Converter

Video Input: CVBS / 720P / 1080P

Input Video System: NTSC / PAL

Built-in AI Algorithm: 0.5 TOPS

Installation Positions: Front / Rear / Left / Right

AI Detection Modes: Pedestrian and vehicle / Pedestrian only / Vehicle only

Video Output: AHD1080P by default; 1080P / 720P / CVBS configurable

Output Video System: PAL by default; PAL / NTSC configurable

Mirror Image: Mirror / Normal configurable

Flip Image: Flip / Normal configurable

Detection Area Calibration: Adjustable detection area side and shape

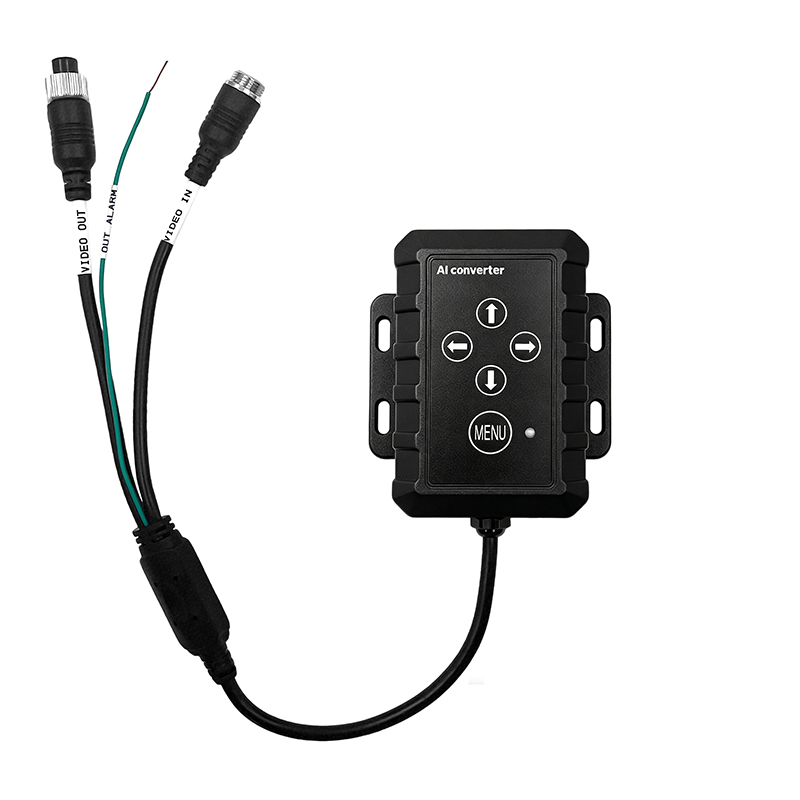

Connector: Standard 4PIN aviation male connector for video input; female connectors for video output

Alarm Output: Green alarm output wire

Working Voltage: DC 12V–24V

Working Current: 150mA at 12V

Power Consumption: Less than 2W

Installation: Four fixed installation holes

Housing Material: Aluminum alloy

Housing Color: Black

Dimensions: 98 × 86 × 25 mm

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

FAQ

Q1: What does an AI Camera Converter do?

A1: It processes compatible vehicle camera video signals and supports AI pedestrian and vehicle detection, allowing the converter to be evaluated for upgrading existing camera systems.

Q2: Which camera input formats does it support?

A2: It supports CVBS, 720P and 1080P camera inputs, with NTSC and PAL system support.

Q3: What AI detection modes are available?

A3: The supported modes are pedestrian and vehicle detection, pedestrian-only detection, and vehicle-only detection.

Q4: Can the detection area be adjusted?

A4: Yes. The side and shape of the detection area can be adjusted to suit the installation.

Q5: Can it be installed for front, rear and side cameras?

A5: Yes. It supports front, rear, left and right installation positions, with the corresponding detection mode selected according to the camera position.

Q6: Does the converter support AHD1080P output?

A6: Yes. AHD1080P in PAL format is the default output. The output resolution and video system can be changed through settings.

Q7: Does it support an external alarm?

A7: Yes. A green wire is provided for alarm output. The external alarm device and wiring compatibility should be confirmed for the intended system.

Q8: What is the working voltage?

A8: The converter supports DC 12V–24V input.

Q9: Can it work with an existing monitor?

A9: Compatibility depends on the monitor's supported video input, resolution and video system. Please confirm these details before ordering.

Q10: What information should be provided when requesting a quotation?

A10: Please provide the existing camera signal, monitor input format, required detection mode, camera installation position, power supply and alarm connection requirements. Carleader can then help evaluate a suitable configuration.
