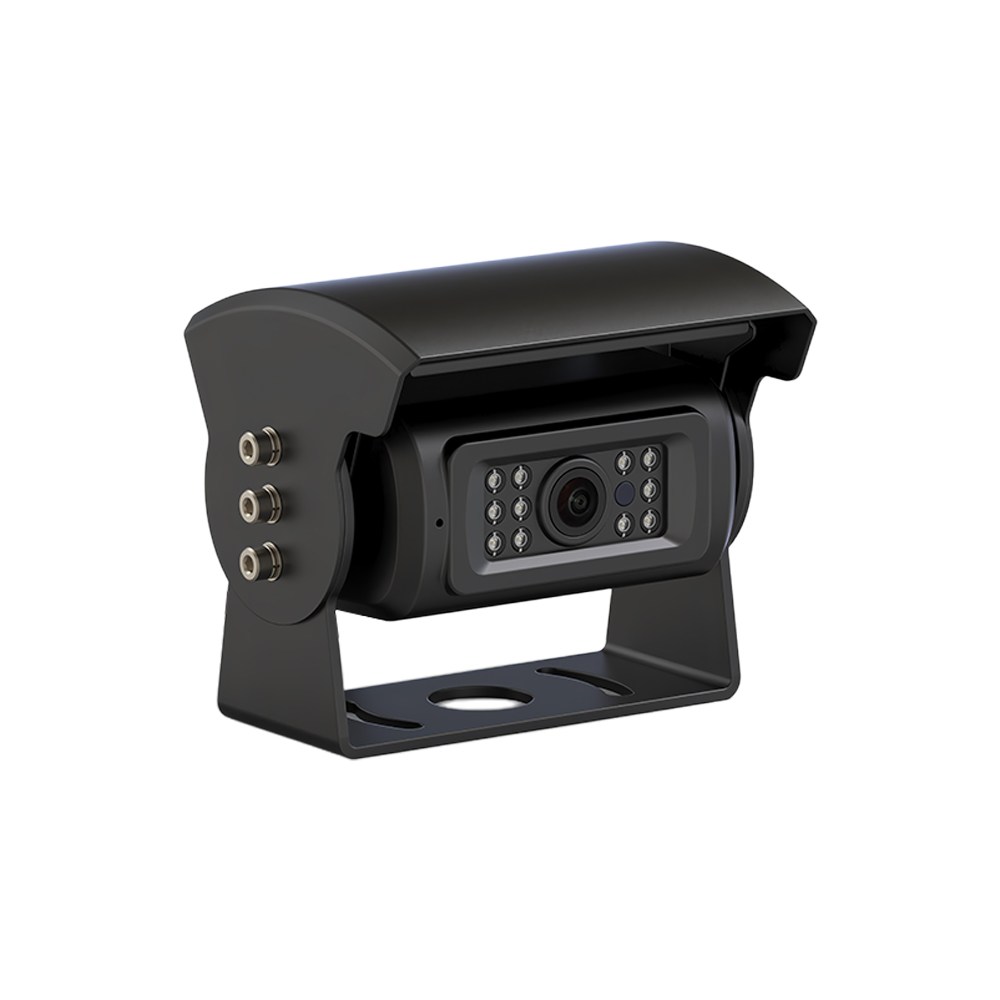

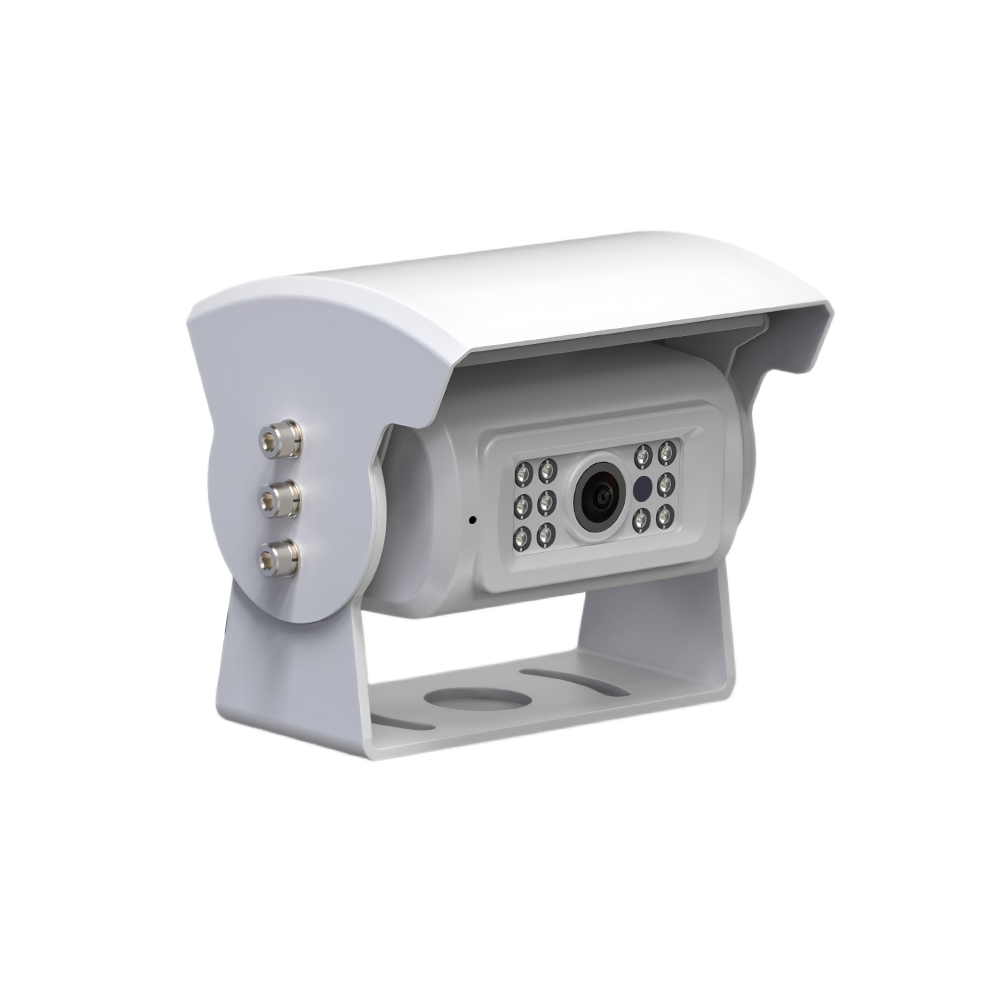

Automatic Day Night CCD Vehicle Camera with IR-Cut and 140 degree Wide Angle

Advantages

1. Automatic Day/Night Switching

Built-in CDS sensor and IR-Cut system automatically switch between day and night modes.

2. Motorized Auto Shutter

Built-in motor supports automatic shutter adjustment according to changing light conditions.

3. 140° Wide Viewing Angle

The 2.8mm lens provides broad coverage for rear and surrounding vehicle monitoring.

4. IP69K Protection

Suitable for demanding exterior vehicle applications.

5. Aluminum Alloy Housing

Rugged metal housing designed for vehicle-mounted use.

6. Optional Built-in Microphone

Audio functionality is available as an option.

Product Parameters

Product Type: Automatic Day Night Vehicle Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard / DC24V Optional

Image: Mirror / Non-Mirrored Optional

Minimum Illumination: 0.1 LUX

Infrared LEDs: 11 IR LEDs

Day/Night Function: IR-Cut Automatic Day/Night Switching

Light Sensor: Built-in CDS Sensor

Lens: 2.8mm

Viewing Angle: 140°

Auto Shutter: Built-in Motorized Auto Shutter

Video Output: 1.0Vp-p, 75Ω

S/N Ratio: ≥48dB

Built-in Microphone: Optional

System: PAL / NTSC Optional

Waterproof Rating: IP69K

Housing Material: Aluminum Alloy

Operating Temperature: -20°C to +75°C, RH95% Max.

Storage Temperature: -30°C to +85°C, RH95% Max.

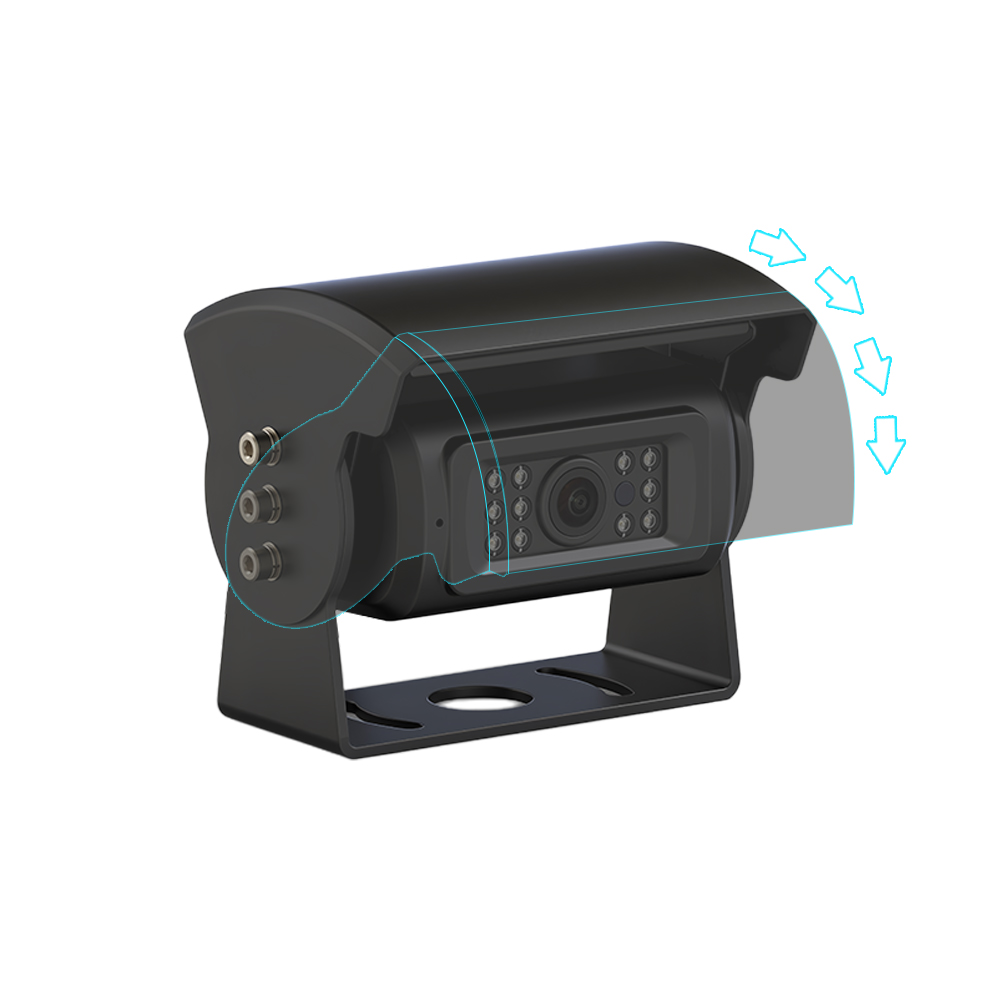

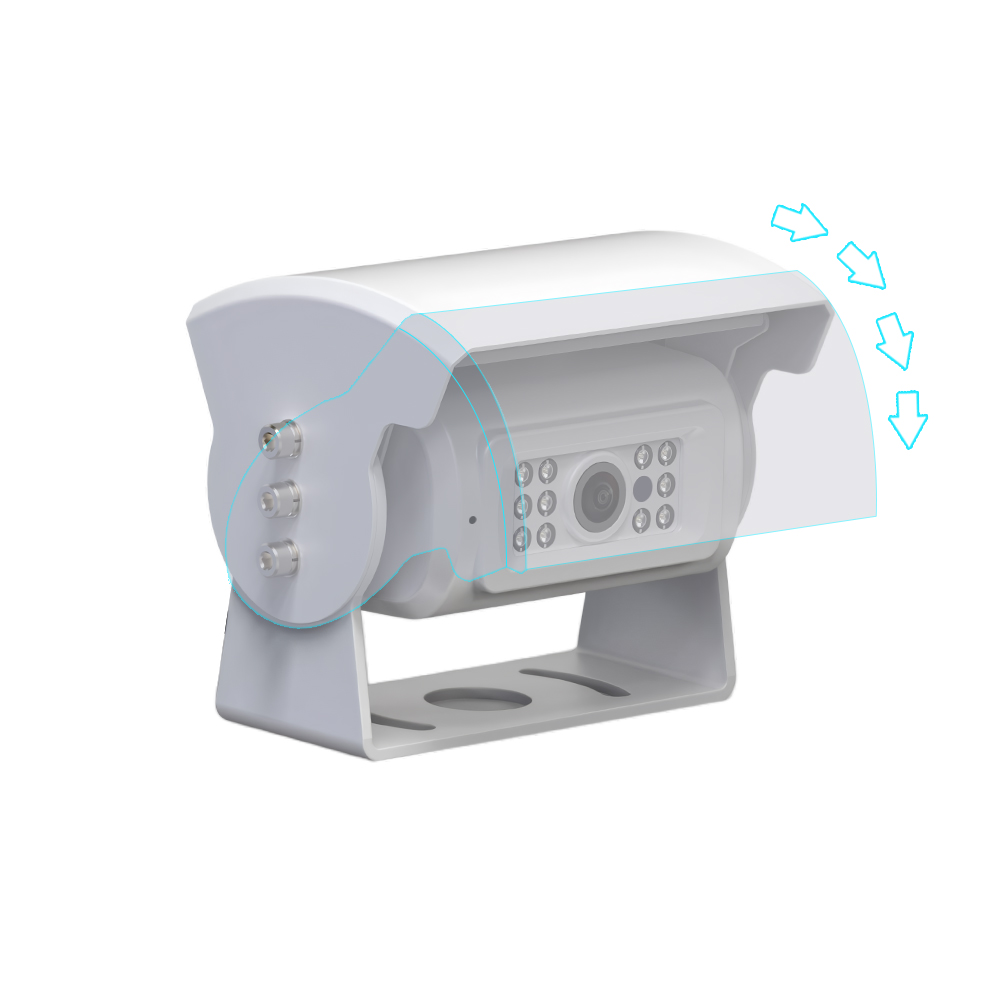

Motorized Auto Shutter

The camera features a built-in motor for automatic shutter adjustment.

The motorized shutter function helps the camera adapt to changing light conditions during vehicle operation, such as:

• Bright sunlight
• Changing outdoor light
• Tunnel entrances and exits
• Day-to-night transitions
• Nighttime driving

This gives the product a different positioning from a basic fixed-parameter rear camera.

Application Scenarios

• Truck Rear View Monitoring

Suitable for trucks requiring a wide rear monitoring area.

• Commercial Vehicle Surveillance

Can be integrated into commercial vehicle camera systems for continuous video monitoring.

• Fleet Monitoring

Can be combined with MDVR/DVR equipment for fleet video recording.

• Bus & Coach Monitoring

Suitable for rear or exterior monitoring on buses and coaches.

• Trailer Monitoring

The wide-angle lens and IP69K housing make it suitable for trailer-mounted surveillance applications.

• Nighttime Vehicle Monitoring

The automatic day/night system and 11 IR LEDs support monitoring during nighttime operation.

FAQ

Q1. What is an automatic day night vehicle camera?

A1. It is a vehicle camera designed to automatically switch between daytime and nighttime imaging according to the surrounding light conditions.

Q2. How does the camera switch between day and night mode?

A2. The built-in CDS sensor detects changes in ambient light and works with the IR-Cut system to automatically switch between day and night operation.

Q3. Does the camera have infrared night vision?

A3. Yes. The camera has 11 IR LEDs and supports infrared night vision.

Q4. What is the viewing angle of the camera?

A4. The camera uses a 2.8mm lens with a 140° viewing angle.

Q5. Does the camera support AHD1080P?

A5. Yes. CVBS, AHD720P and AHD1080P video configurations are available.

Q6. What is the function of the CDS sensor?

A6. The built-in CDS sensor detects ambient light changes and supports the camera's automatic day/night switching function.

Q7. What is the motorized auto shutter used for?

A7. The built-in motor supports automatic shutter adjustment to help the camera adapt to changing lighting conditions.

Q8. Is the camera suitable for outdoor vehicle installation?

A8. Yes. The camera has an IP69K waterproof rating and an aluminum alloy housing for exterior vehicle applications.

Q9. Can the image be mirrored?

A9. Yes. Mirror and non-mirrored image configurations are available.

Q10. Can the camera work with an MDVR or vehicle DVR?

A10. Yes. The applicable CVBS/AHD versions can be integrated with compatible vehicle DVR and MDVR systems.
