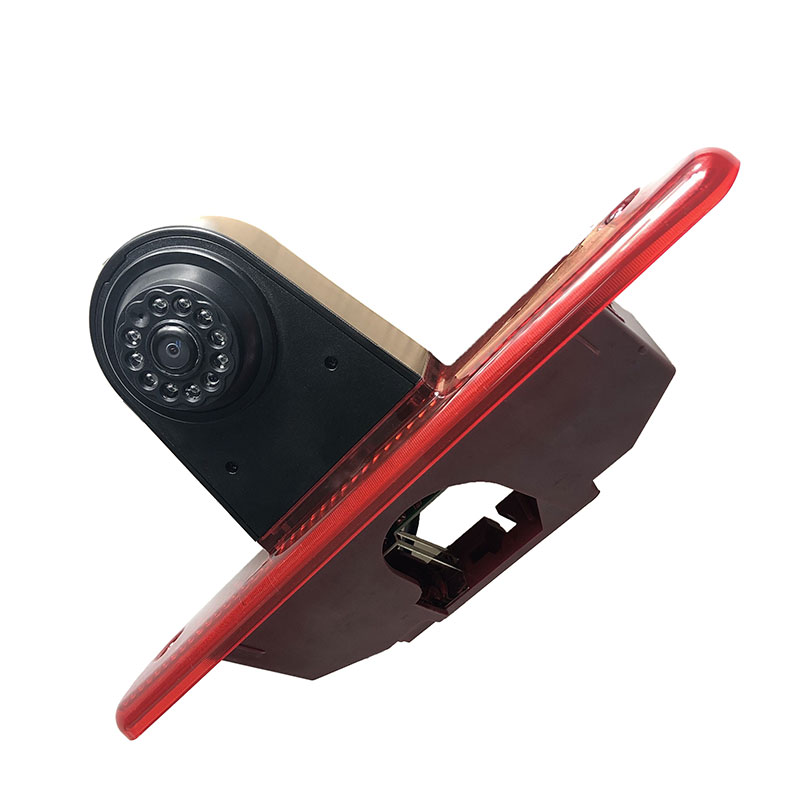

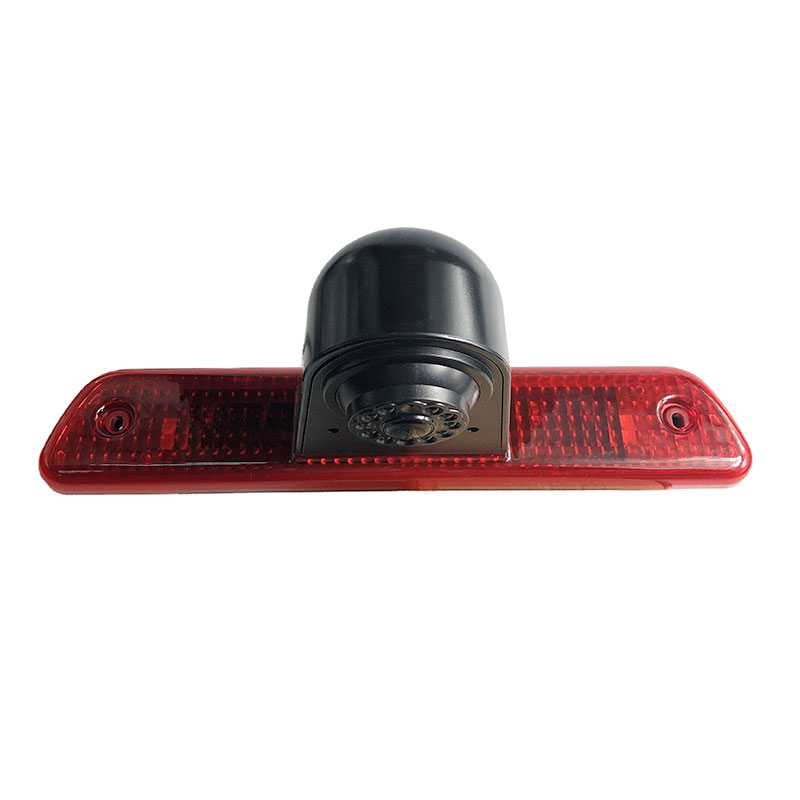

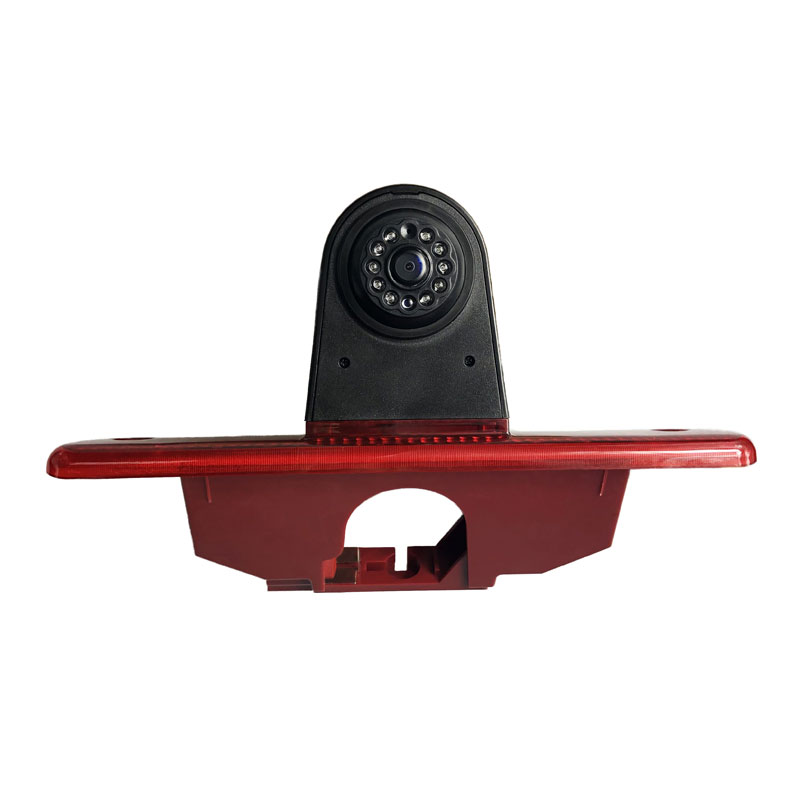

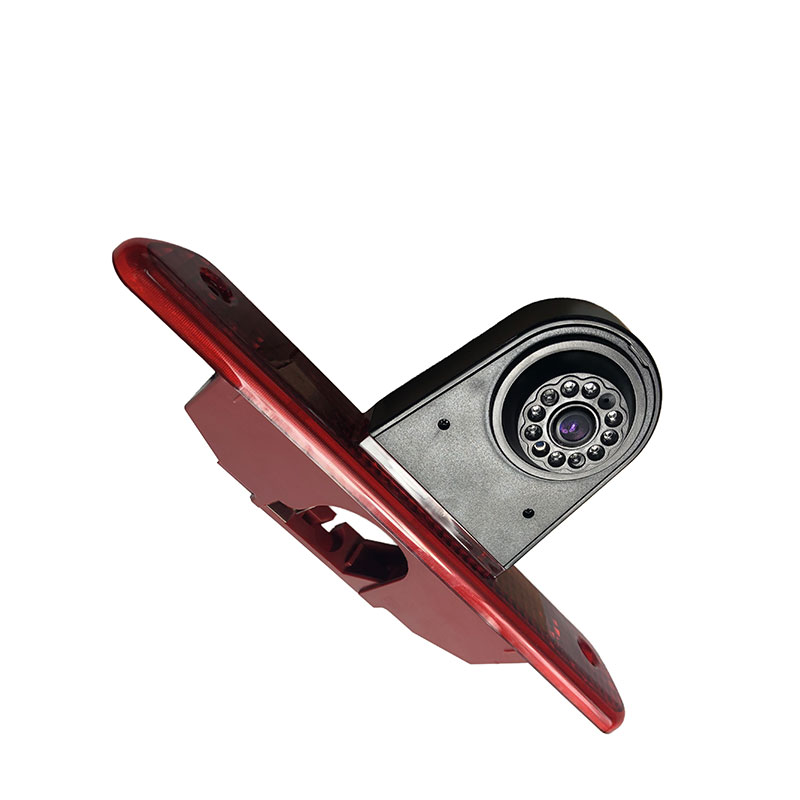

Brake Light Replacement Camera For Expert / Traveller Jumpy / SpaceTourer ProAce Van Backup Camera

Carleader Brake Light Replacement Camera For Expert / Traveller Jumpy / SpaceTourer ProAce Van Backup Camera, which is a vehicle-specific rear view camera solution designed for commercial vans. This Brake Light Camera replaces the original third brake light position and integrates a rear view camera function, helping drivers improve rear visibility while maintaining the vehicle's original appearance. Supporting CVBS/720P/1080P optional video output,  IP69K waterproof protection and 120°-140° wide viewing angle, the camera provides stable image performance for reversing, parking and commercial vehicle applications.

Features:

1. AHD Brake Light Camera designed for Peugeot Expert / Traveller, Citroen Jumpy / SpaceTourer, Toyota ProAce(2007-2016).

2. AHD Rear View Camera supports CVBS/720P/1080P optional resolution for clear rear images.

3. 120°-140° wide angle Backup Camera helps reduce blind spots during reversing and parking.

4. 4PIN Aviation Connector with RCA Adapter ensures easy connection and installation for vehicle camera systems.

5. IP69K waterproof Commercial Vehicle Camera provides reliable operation in outdoor environments.

6. 10pcs IR LEDs and 0.1Lux low illumination improve visibility in low-light conditions.

Application Scenarios

Suitable for:

• Peugeot Expert vans
• Peugeot Traveller
• Citroen Jumpy vans
• Citroen SpaceTourer
• Toyota ProAce vans
• Delivery vehicles
• Logistics vehicles
• Fleet vehicles

Applications:

• Reverse assistance
• Parking monitoring
• Rear blind spot reduction
• Commercial vehicle safety

Parameter:

Suitable Model: Peugeot Expert / Traveller, Citroen Jumpy / SpaceTourer, Toyota ProAce(2007-2016).

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 10 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional

FAQ

Q1: Which vehicles does this Brake Light Camera fit?

A: It fits Peugeot Expert / Traveller, Citroen Jumpy / SpaceTourer and Toyota ProAce models.

Q2: Does this camera include LED brake light function?

A: This model is without LED light function. Please confirm the required version before ordering.

Q3: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q4: Is it waterproof?

A: Yes, the camera features IP69K waterproof protection.

Q5: How does it connect to the monitor?

A: It uses a 4PIN Aviation Connector with RCA Adapter for easy installation.
