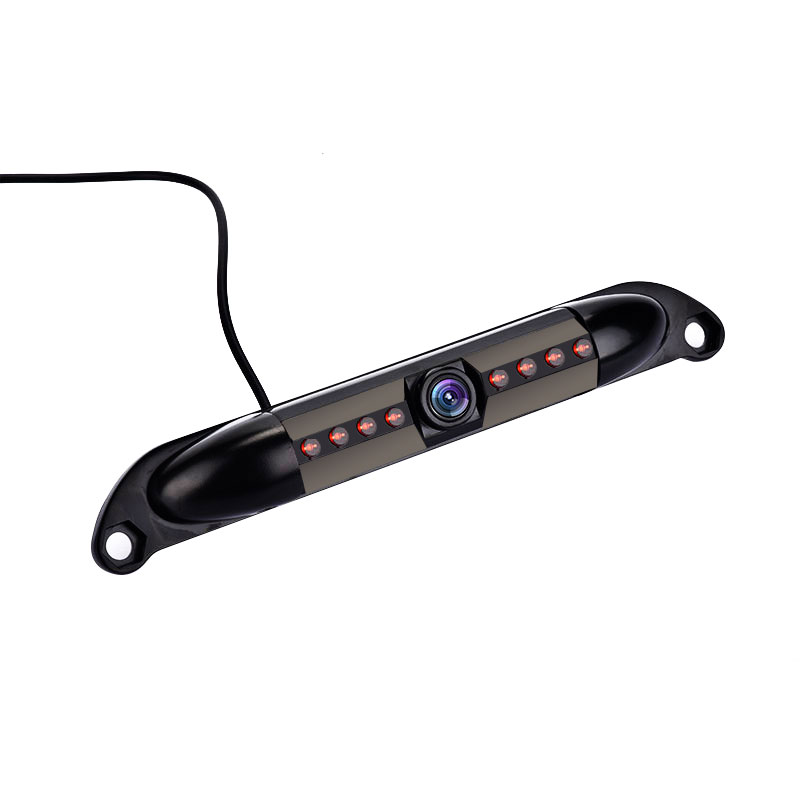

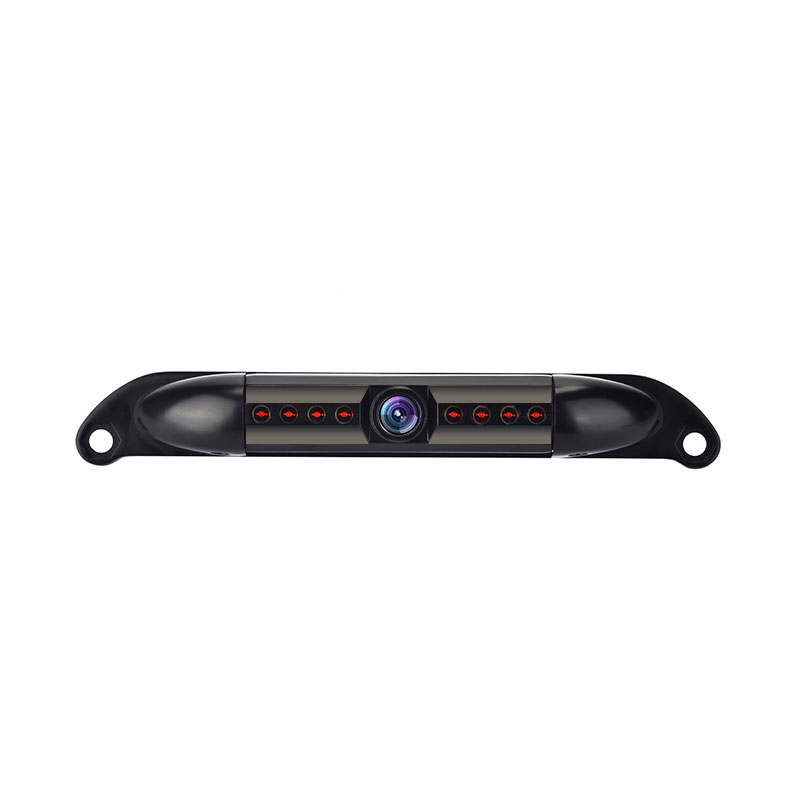

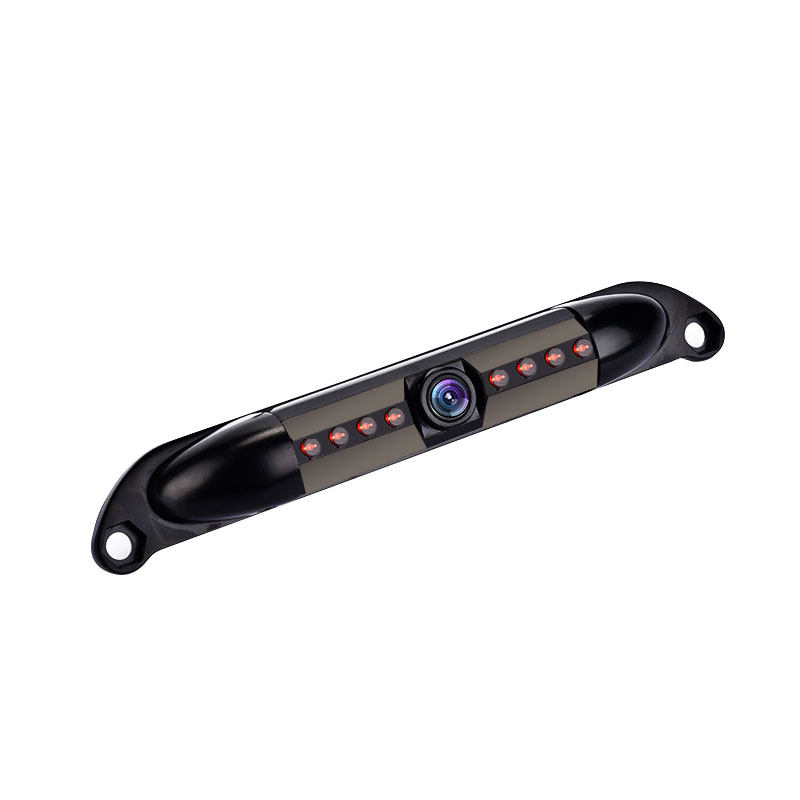

Car License Plate Camera 1080P AHD with 120 degree-130degerr Wiew Angle for Rear View and Vehicle Monitoring

Product Advantages

1. License Plate Mounting Design

Designed specifically around the license plate area, providing a practical solution for adding a rear view camera without requiring a large external camera housing.

2. Wide Rear Viewing Coverage

The 120°-130° viewing angle helps capture a broad area behind the vehicle, supporting reversing, parking and rear-area monitoring.

3. 1080P AHD Video Option

With AHD1080P available, the camera can provide a higher-resolution image for compatible vehicle monitoring systems.

4. Low-Light Assistance

The camera supports 0.5 Lux with 8 LED illumination, providing additional lighting for nighttime and low-light vehicle applications.

5. Rugged Exterior Construction

The anti-rust metal housing and IP69K protection are suitable for outdoor installation and demanding road environments.

6. Flexible System Integration

CVBS, AHD720P and AHD1080P options allow the camera to work with different vehicle monitors, DVRs and MDVR systems.

7. Standard 4Pin Connection

The 4Pin standard connector provides a straightforward connection option for vehicle camera system integration.

Parameters

Product Type: Car License Plate Camera

Image Sensor: 1/2.7″ & 1/1.7″

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard, 24V Optional

Connector: 4Pin Standard Connector

View Angle: 120°-130°

Minimum Illumination: 0.5 Lux (8 LED ON)

Mirror Image: Optional

Non-Mirrored Image: Optional

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Waterproof Rating: IP69K

Housing: Anti-Rust Metal

Built-in Microphone: Optional

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

1. Car rear view and reversing camera
2. License plate camera systems
3. Commercial vehicle rear monitoring
4. Truck and van camera systems
5. Fleet vehicle surveillance
6. Parking and reversing assistance
7. Vehicle DVR / MDVR camera systems
8. Exterior vehicle monitoring

FAQ

Q: Is this camera designed for license plate installation?

A: Yes. It is designed as a car license plate camera for vehicle rear monitoring and related applications.

Q: Does it support 1080P?

A: Yes. AHD1080P is available, together with CVBS and AHD720P options.

Q: What is the viewing angle?

A: The viewing angle is 120°-130°.

Q: Does it have night illumination?

A: Yes. The camera supports 0.5 Lux performance with 8 LED lights.

Q: Can it be used on commercial vehicles?

A: Yes. It can be integrated into car, van, truck and commercial vehicle camera systems.

Q: Is the housing suitable for outdoor use?

A: Yes. The camera uses an anti-rust metal housing and has an IP69K waterproof rating.
