Crane Wireless Video Surveillance System

Carleader is a professional Crane Wireless Video Surveillance System manufacturer and supplier in china. CL-S1020AHD-DW is a Crane wireless Security Camera System CCTV Kits with Camera and display integrated wireless module, transmission distance have 200 meters.Support 1 to 1, up to 4 to 1, the display supports single screen, double screen, three screens, foursided display.

Model:CL-S1020AHD-DW

Send Inquiry

Product Description

CL-S1020AHD-DW Video Presentation:

CL-S1020AHD-DW product characteristics:

As one of professional high quality Crane Wireless Video Surveillance System manufacturers, you can rest assured to buy Crane Wireless Video Surveillance System from Carleader and we will offer you the best after-sale service and timely delivery.

Camera and display integrated wireless module, transmission distance 200 meters.
Camera 2 million pixels, support 30 times optical zoom.
The system delay is about 120ms.
Support 1 to 1, up to 4 to 1, the display supports single screen, double screen, three screens, four
sided display.
The display adopts a 10.1-inch high-resolution LCD screen, and the shell is made of high.
temperature-resistant ABS material.
The display supports controlling the zoom of the camera, and a foot pedal controller is optional.
Display DC: 5-40V wide voltage design, applicable to a variety of models.

Specifications:

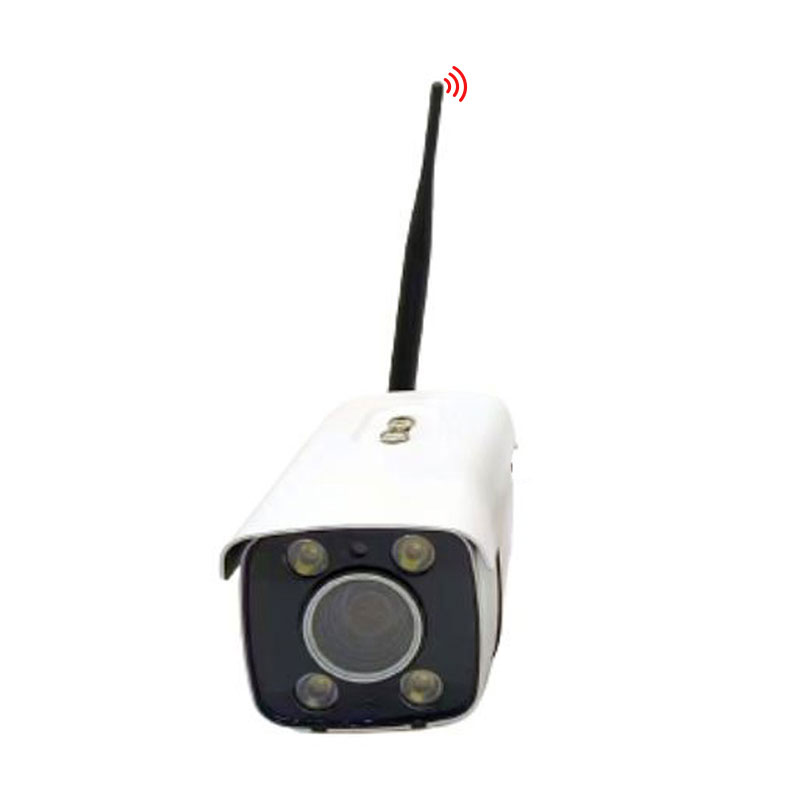

Wireless camera

Imaging sensor: 1/2.8” CMOS imx307

Effective pixels: 1920*1080

Horizontal field Angle: 70.9-7.1° Wide Angle-Long Distance)

Zoom speed: About 3 sec (Optics, wide Angle - Long Distance)

Focusing mode: Automatic focus/Semi-automatic focus/manual focus

Focal length: 5.35- 96.3mm

Night vision range: About 30 meters

Working voltage range: DC 12-35V

Power Dissipation: ＜5W

Wireless transmission distance: 200meter

Wireless bandwidth range: 2403-2480MH2

Transmitted power: 20dBm

Receive sensitivity: -86dBm

Product size: 160“85*80mm

Operating Temperature: -10-60℃

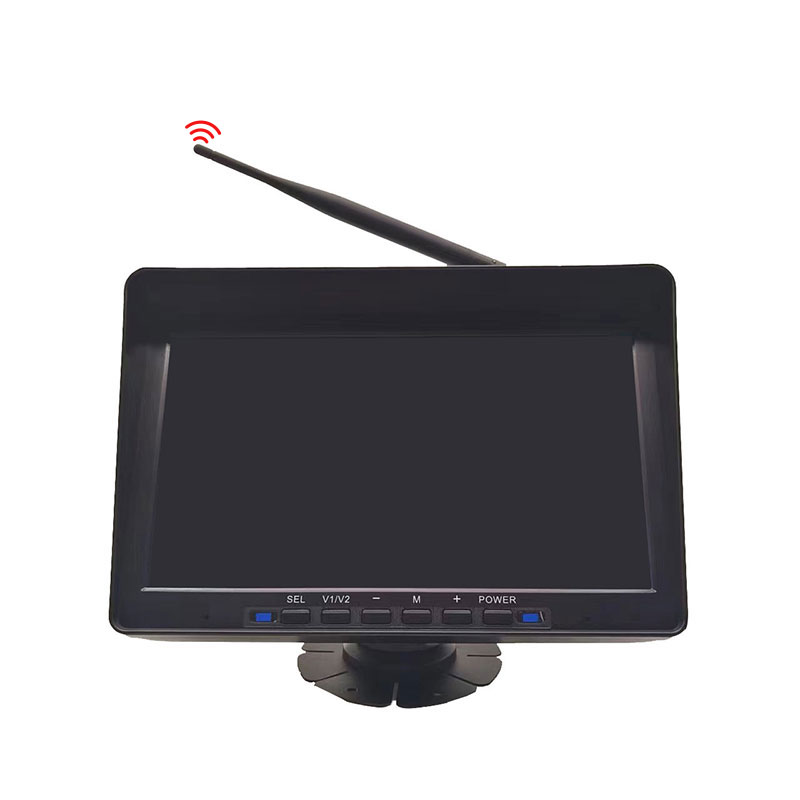

10.1” Wireless monitor

Screen size：10.1” Inch

Digital screen proportion: 16:9

Resolution: 800*1280

Backlight, brightness: LED, 300cd/m2

Contrast: 1000:1

View angle: L/R: 70° UP/down: 70°

Video display: 1 to 1、1 to 2、 1 to 4

Storage SD card, biggest 128G

Working voltage range: DC 5-40V

Wireless transmission distance: 200meter

Wireless bandwidth range: 2403-2480MHz

Transmitted power: 20dBm

Receive sensitivity: -86dBm

Product size: 245*160*30mm

Operating Temperature: -10-60℃

Storage Temperature: -20-70 ℃
