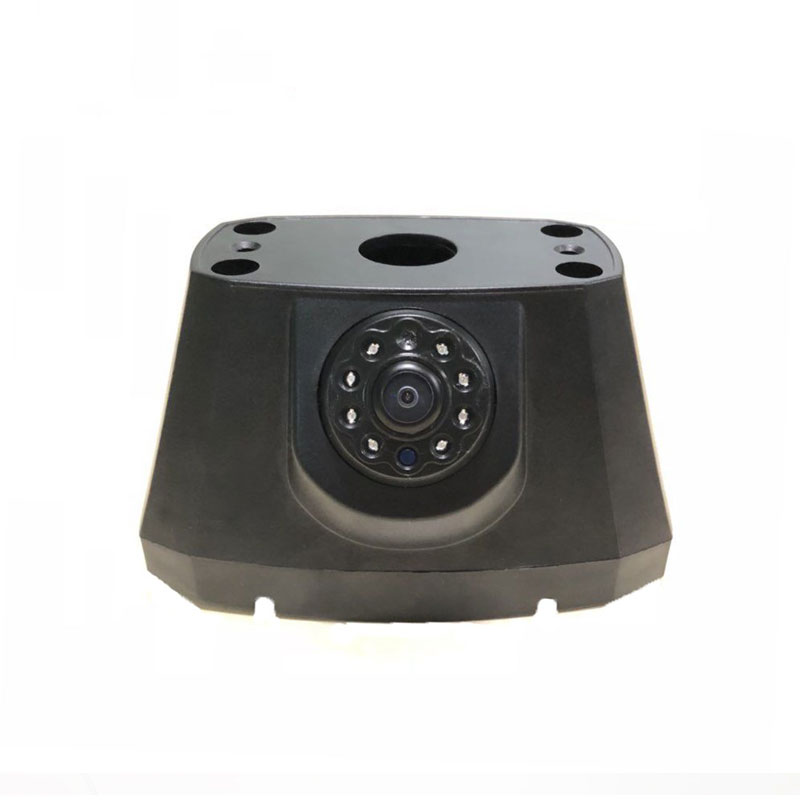

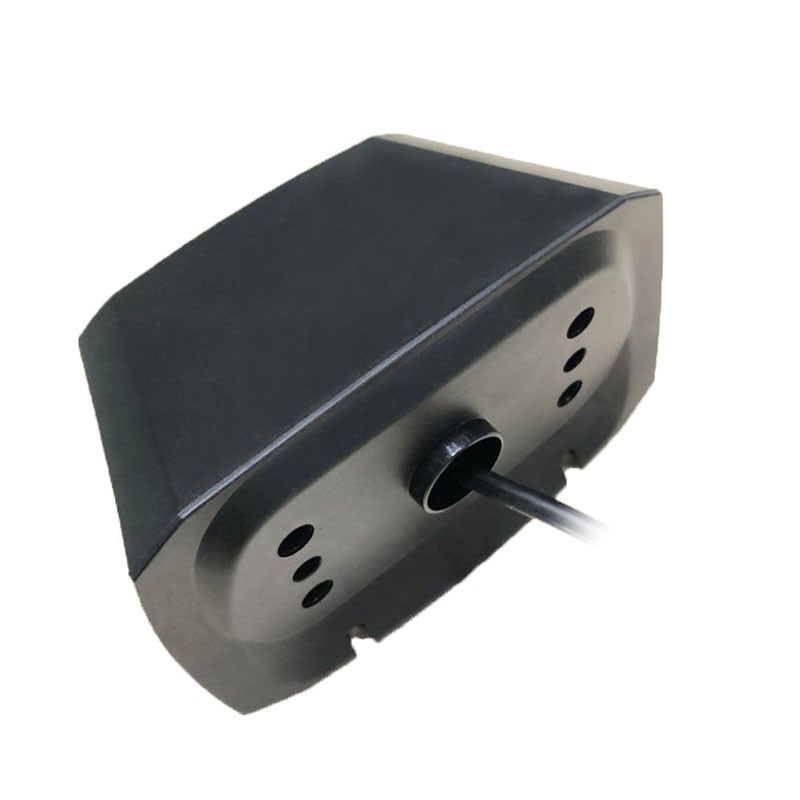

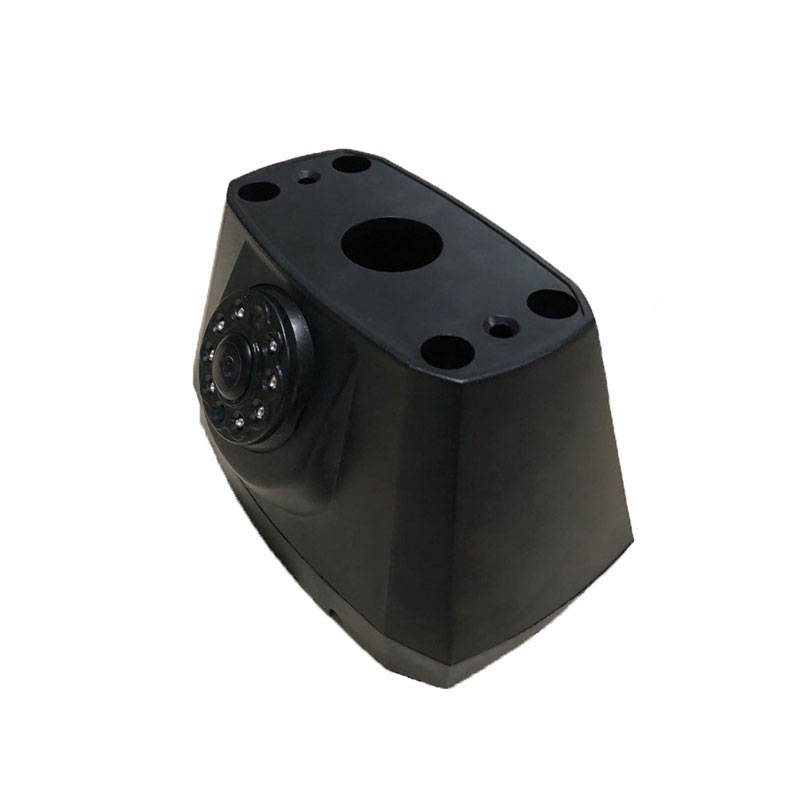

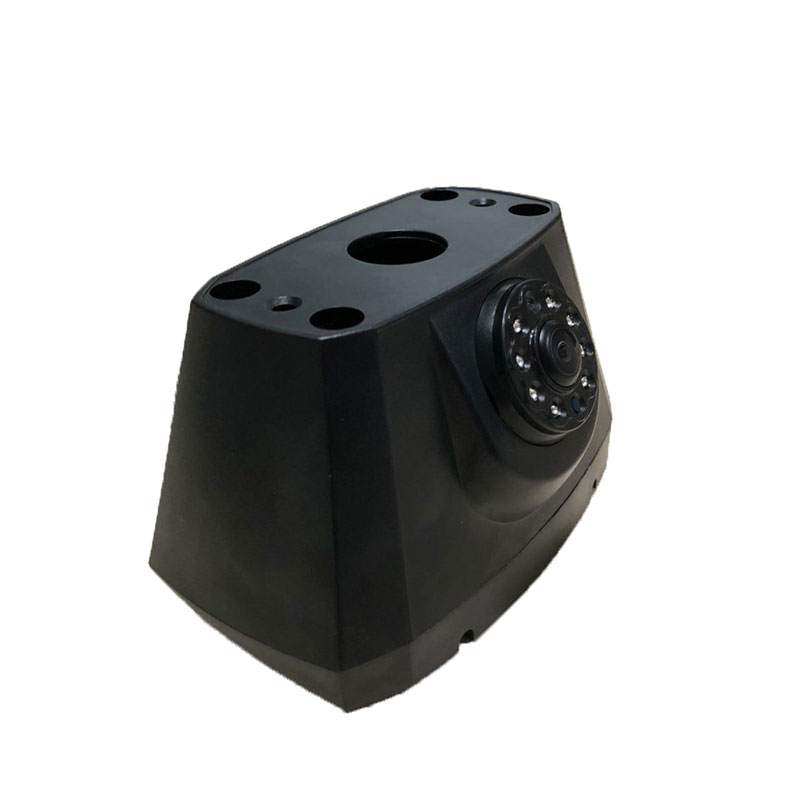

Dodge Promaster Backup Camera Rear View Camera For Cargo Van 2010-2019

Features:

1. Dodge Promaster Backup Camera supports CVBS/720P/1080P optional resolution for clear images.

2. 120°-140° wide angle Rear View Camera reduces rear blind spots during reversing and parking.

3. 8pcs IR LEDs and 0.1Lux low illumination improve visibility in low-light conditions.

4. 4PIN Aviation Connector with RCA Adapter ensures easy connection and installation for vehicle camera systems.

5. IP69K waterproof housing provides reliable operation in rain, dust and harsh environments.

Parameter:

Suitable Model: Dodge Promaster Van (2010-2019)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line: Optional

PAL/NTSC Switch Cutting Line: Optional

Installation & Quality Control

The camera is designed for Dodge Promaster Van 2010-2019 applications.

Each product is tested before shipment:

• Image quality testing
• Waterproof testing
• Cable connection testing
• Power supply testing
• Aging testing

The IP69K waterproof structure ensures stable operation in different weather conditions.

Application Scenarios

• Reverse assistance
• Parking monitoring
• Rear blind spot monitoring
• Fleet safety management

FAQ

Q1: Is this camera compatible with all Dodge Promaster models?

A: No. This model is designed for Dodge Promaster 2010-2019. Please confirm the vehicle model before ordering.

Q2: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q3: Is this a brake light camera?

A: No. This model is a dedicated rear view camera without brake light function.

Q4: Can it work at night?

A: Yes. The camera supports 0.1Lux low illumination and IR LED assistance.

Q5: How does it connect to the monitor?

A: It uses a 4PIN Aviation Connector with RCA Adapter for easy installation.
