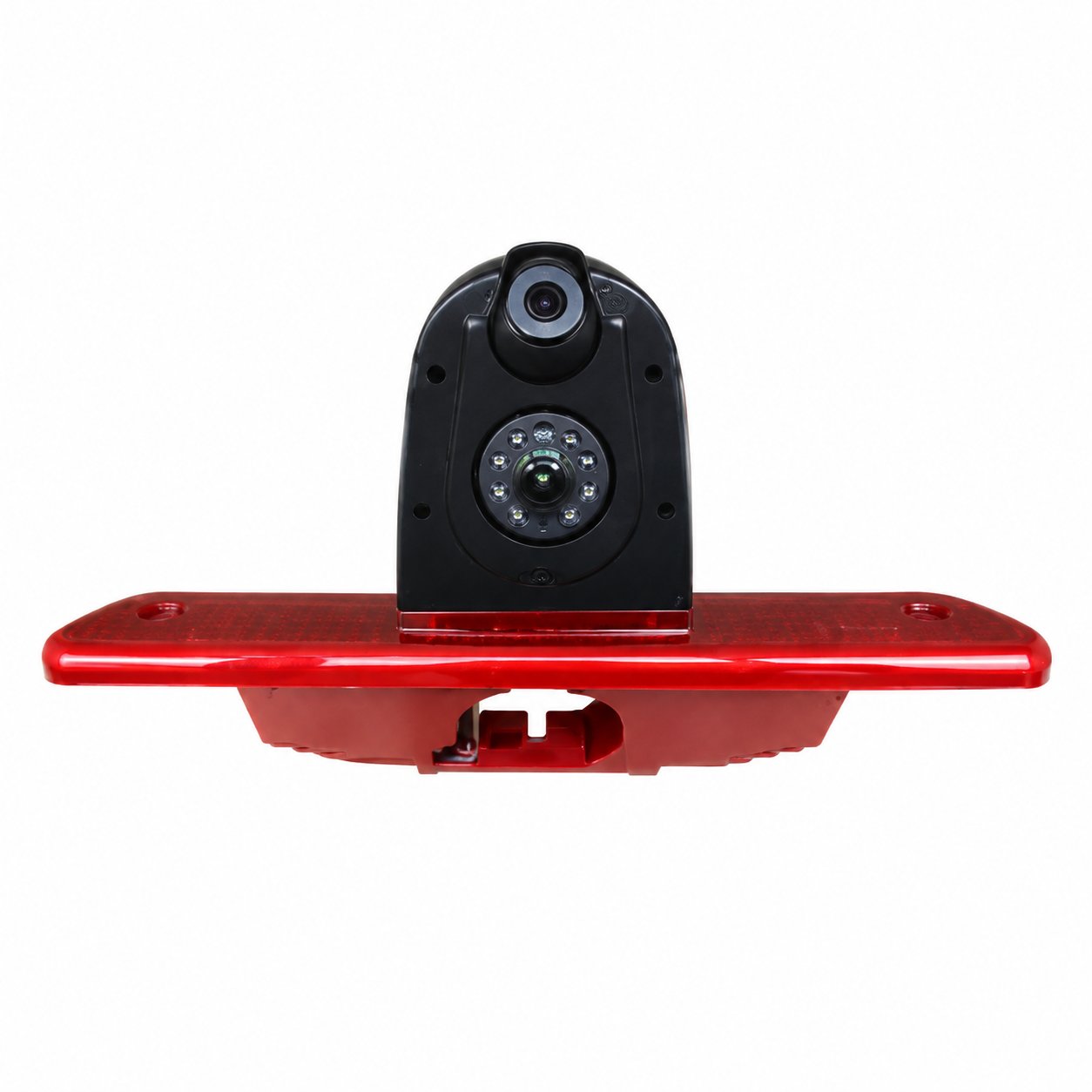

Dual Lens AHD Brake Light Camera For Expert Traveller/ Jumpy SpaceTourer / Toyota ProAce Van

Carleader Dual Lens AHD Brake Light Camera For Expert Traveller/ Jumpy SpaceTourer / Toyota ProAce Van, which is a vehicle-specific rear monitoring solution with dual camera design. With 2.8mm lens, two viewing angles of 80° and 120°, and supporting CVBS/720P/1080P optional output and IP69K waterproof protection, it is ideal for commercial vans, delivery vehicles and fleet applications.

Model:CL-SL824-S

Send Inquiry

Product Description

Carleader Dual Lens AHD Brake Light Camera For Expert Traveller/ Jumpy SpaceTourer / Toyota ProAce Van, which is a vehicle-specific rear view camera solution designed for commercial vans. Combining a third brake light replacement design with dual lens camera technology, this product provides both vehicle safety lighting and enhanced rear monitoring functions. With two camera lenses, the system supports 80° and 120° different viewing angles, allowing drivers to achieve wider rear coverage and better visibility of blind areas during reversing, parking and daily driving. This Dual Lens Brake Light Camera features CVBS/720P/1080P optional resolution, 0.1Lux low illumination performance and IP69K waterproof protection.

Features:

1. Dual Lens AHD Brake Light Camera combines third brake light replacement and dual rear camera monitoring functions.

2. Dual Camera design provides 80° and 120° viewing angles for different rear monitoring requirements.

3. AHD Rear View Camera supports CVBS/720P/1080P optional video output.

4. 0.1Lux low illumination with 8pcs IR LEDs improves night visibility.

5. 4PIN Aviation Connector with RCA Adapter ensures easy connection and installation for vehicle camera systems.

6. IP69K waterproof Commercial Vehicle Camera supports harsh outdoor environments.

Parameter:

Suitable Model: Peugeot Expert / Traveller; Citroen Jumpy / SpaceTourer; Toyota ProAce(2007-2016)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

View Angle: 80° & 120°

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional
