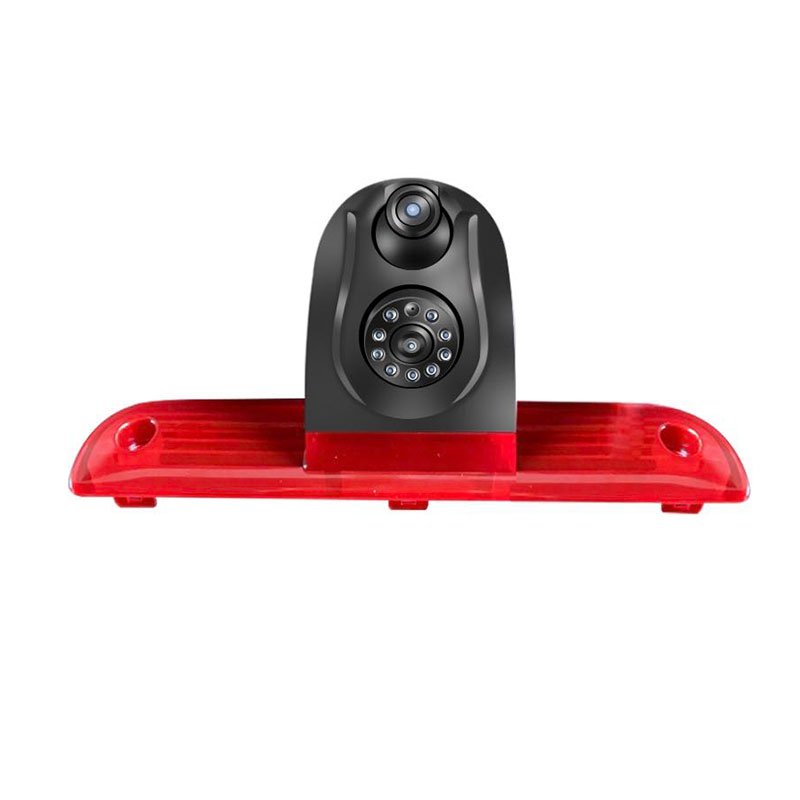

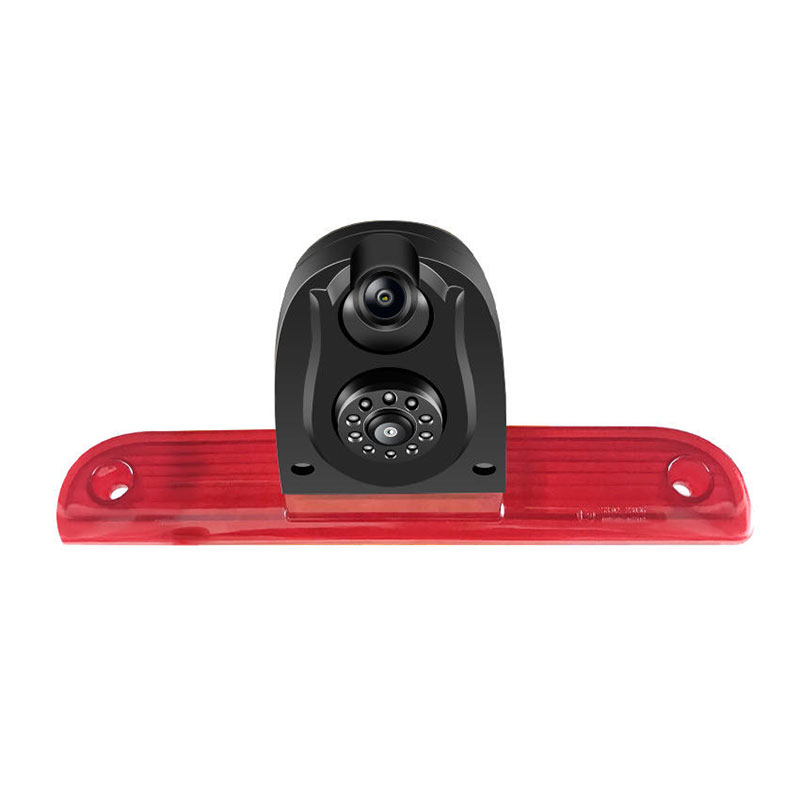

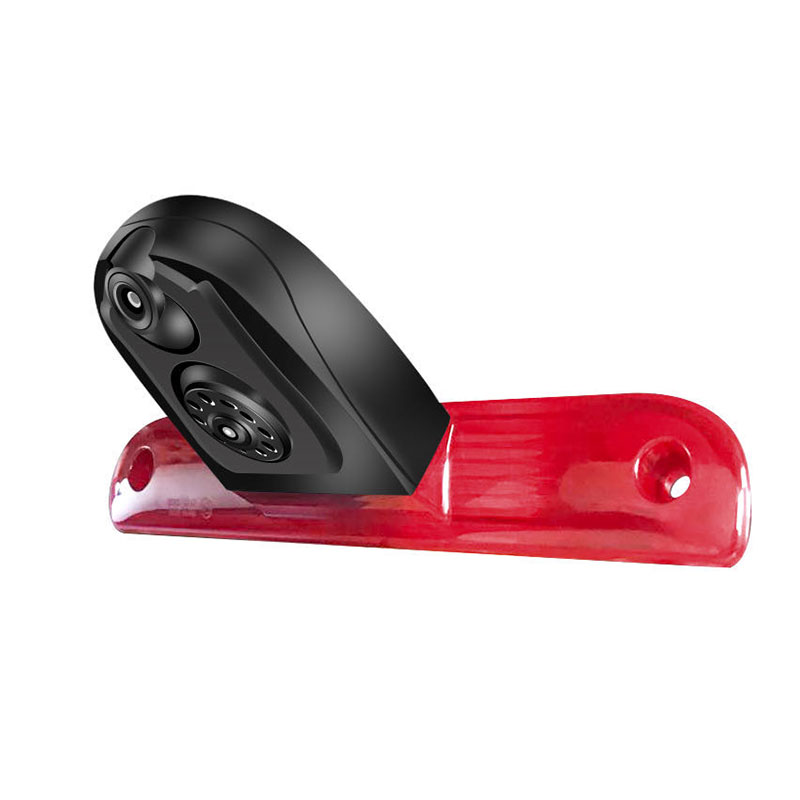

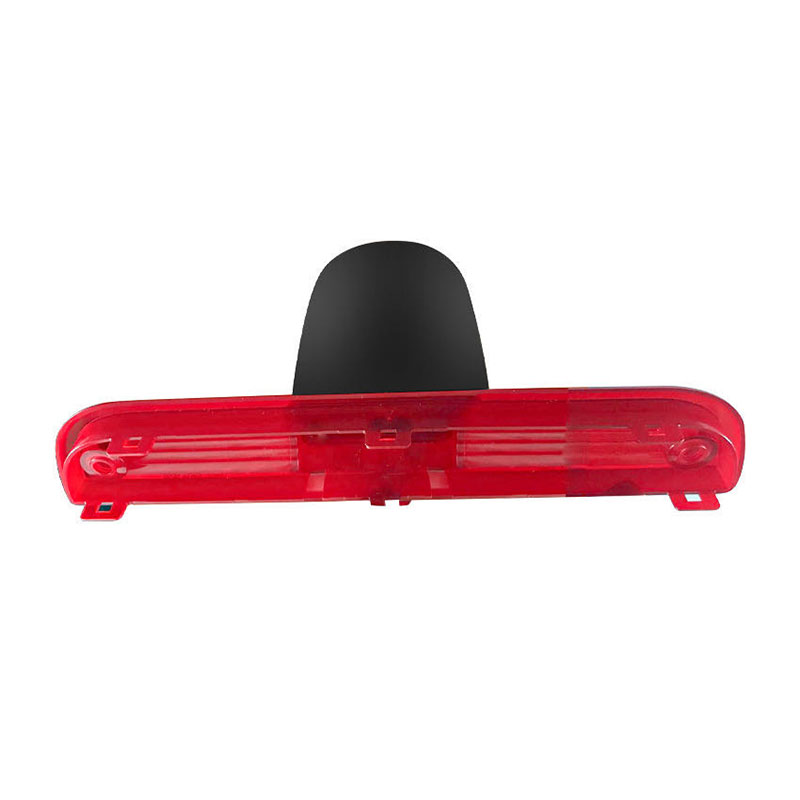

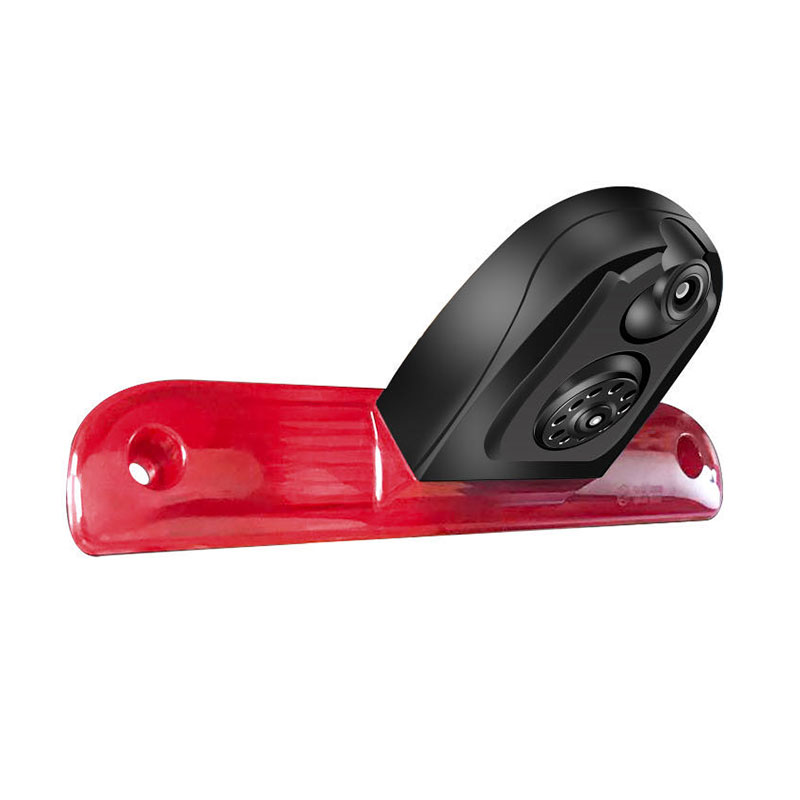

Dual Lens Brake Light Camera For Ducato / Boxer / Jumper Van Backup Camera

Carleader Dual Lens Brake Light Camera For Ducato / Boxer / Jumper Van Backup Camera is designed to replace the original third brake light position while adding rear monitoring capability. Unlike standard single camera solutions, this Dual Camera Brake Light Camera adopts a two-lens structure, allowing drivers to monitor different rear areas and achieve wider coverage. The camera supports CVBS/720P/1080P optional resolution, features 2.8mm lens and 80°+120° dual viewing angle, providing flexible monitoring performance for commercial vehicles. With IP69K waterproof protection and 4PIN Aviation Connector with RCA Adapter, it ensures stable operation and easy installation for fleet vehicles, delivery vans and cargo vans.

Features:

1. Dual camera structure provides two viewing angles for wider rear monitoring coverage.

2. Supports CVBS/720P/1080P optional video output for different vehicle monitor systems.

3. This rear view backup camera with 80° + 120° dual viewing angle design provides flexible rear observation.

5. 4PIN Aviation Connector with RCA Adapter ensures stable connection and convenient installation.

6. IP69K waterproof protection supports outdoor commercial vehicle operation.

Parameter:

Suitable Model: FIAT Ducato, Peugeot Boxer, Citroen Jumper and so on(2006-2018)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Camera Type: Dual Lens Camera

View Angle: 80° + 120°

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 8 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Quality Control & Testing

Each Dual Lens Brake Light Camera is tested before shipment:

• Dual camera image test
• Video signal test
• Waterproof and dust resistance test
• Power and connector stability test

FAQ

Q1: Which vehicles does this Brake Light Camera fit?

A: It fits FIAT Ducato, Peugeot Boxer, Citroen Jumper and so on (2006-2018).

Q2: What is the advantage of the dual lens camera?

A: The dual lens design provides two viewing angles and wider rear monitoring coverage.

Q3: Does it replace the original brake light?

A: Yes, it combines the third brake light and rear view camera functions.

Q4: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional resolution is available.

Q5: Is it suitable for fleet vehicles?

A: Yes, it is designed for commercial vans, delivery vehicles and fleet applications.
