Dual Lens Brake Light Replacement Camera With Slim Housing Backup Camera

Features:

1. Dual viewing angle design with 80° and 120° coverage improves rear visibility.

2. 1.7mm lens design provides clear rear images for reversing and parking.

3. 4PIN Aviation Connector with RCA Adapter ensures stable signal connection.

4. IP69K waterproof protection supports harsh outdoor vehicle environments.

5. Universal Rear View Camera helps improve driving safety and reduce rear blind spots.

Parameter:

Design: Slim & Flat Back Housing

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

View Angle: 80° + 120°

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: With LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Product Details & Quality

Product Details Display

Recommended pictures:

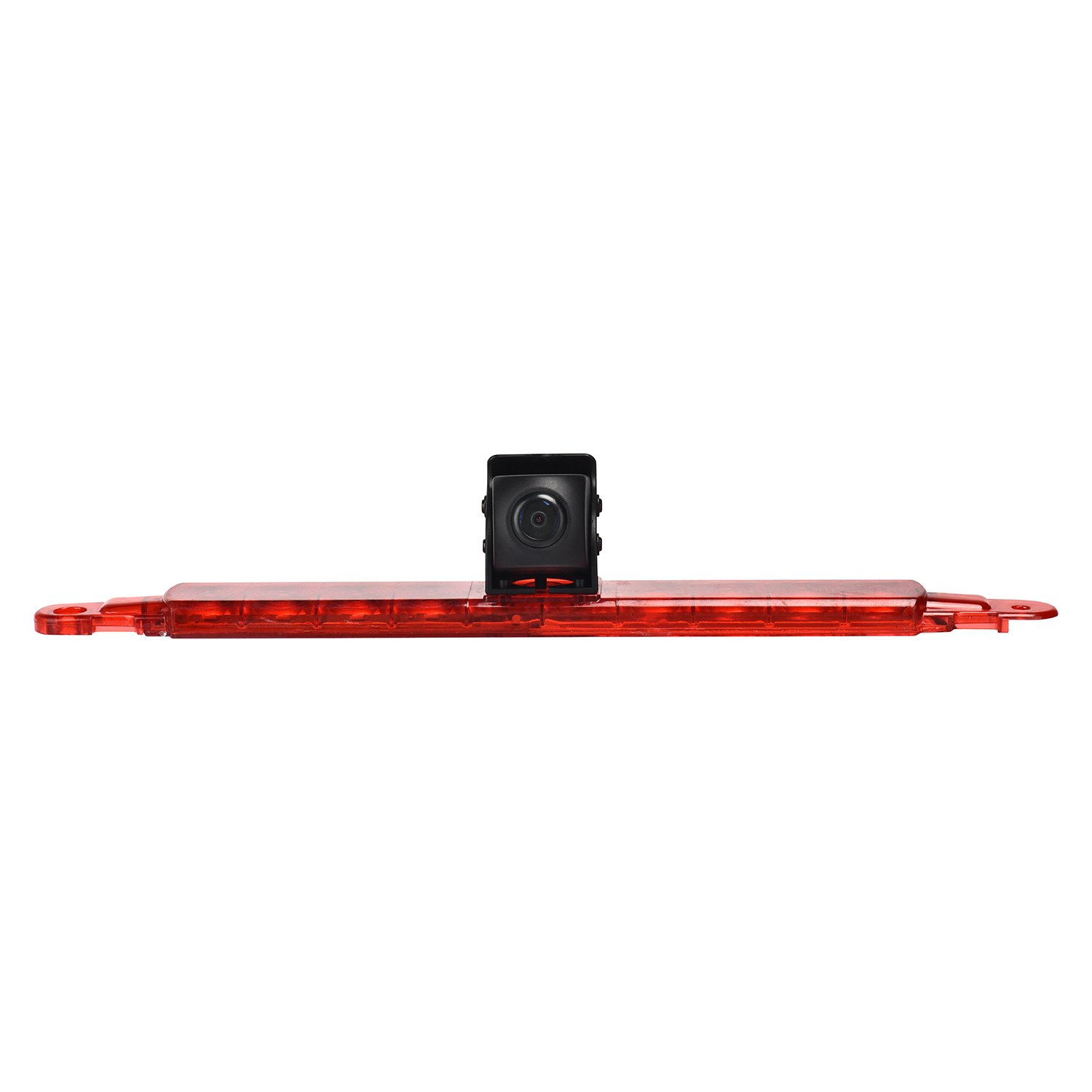

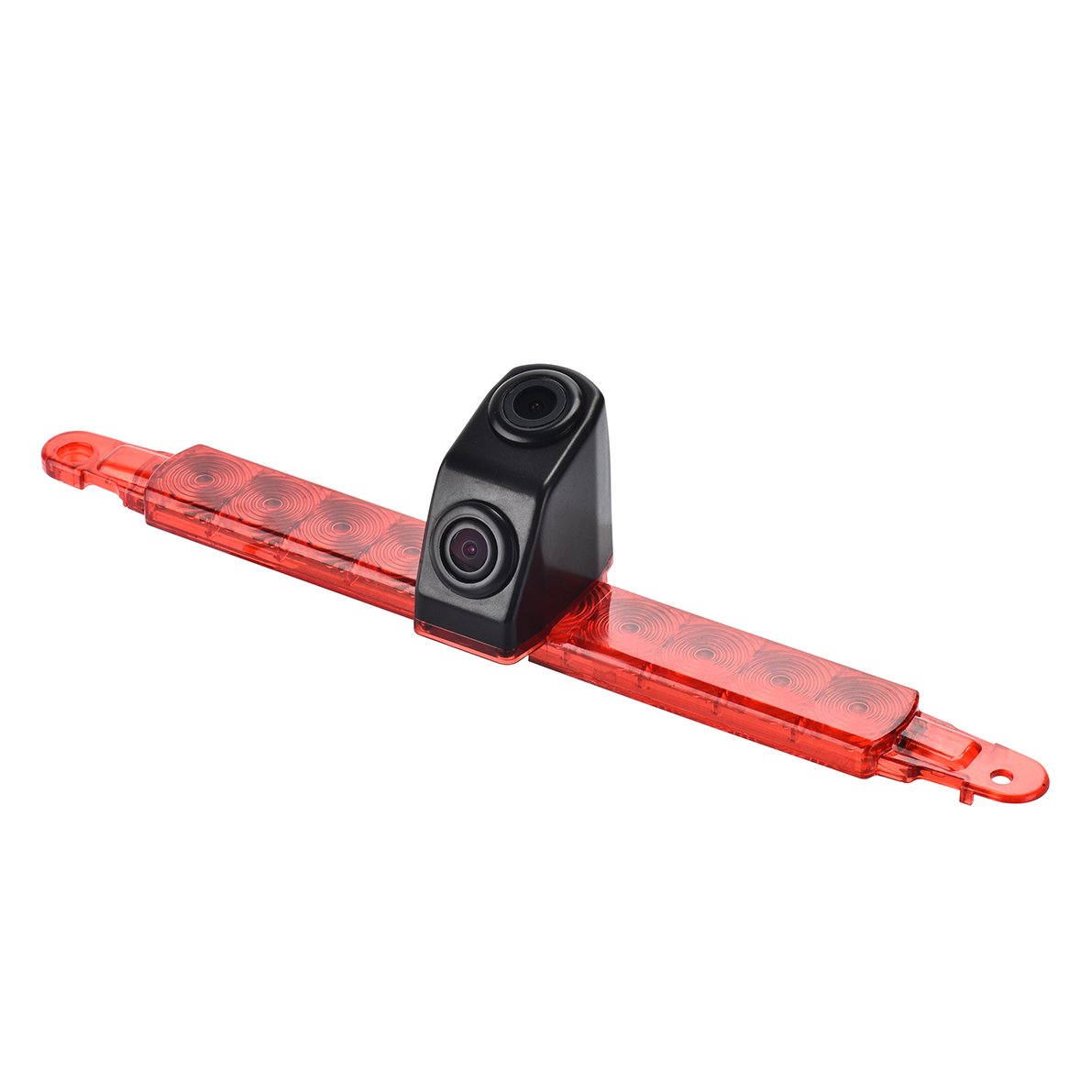

• Front view showing dual lenses
• Side view showing slim housing
• Camera lens close-up
• Cable and connector details
• Vehicle installation effect

Testing Process

Each Dual Lens Brake Light Camera is tested before shipment:

• Camera image quality test
• Dual lens switching/function test
• Video signal transmission test
• Waterproof and dust resistance test
• Power stability test
• Connector durability test
• Aging test

FAQ

Q1: What is the advantage of dual lens design?

A: The dual lens design provides wider rear monitoring coverage and helps reduce blind spots compared with single camera solutions.

Q2: Is this camera vehicle-specific?

A: No. It is a universal Brake Light Camera designed for flexible installation on different vehicles.

Q3: Does it support 1080P?

A: Yes. CVBS/720P/1080P optional video output is available.

Q4: Is this camera waterproof?

A: Yes. The camera features IP69K waterproof protection for outdoor vehicle applications.

Q5: How is the camera connected?

A: It uses a 4PIN Aviation Connector with RCA Adapter for stable connection and easy installation.
