Ford Transit 2006-2013 Brake Light Replacement Camera For Van Reverse Camera System

Features:

1. 1.7mm lens with 120°-140° wide viewing angle improves rear visibility.

2. 0Lux minimum illumination supports clear monitoring in low-light environments.

3. 4PIN Aviation Connector provides stable signal transmission and durable connection.

4. IP69K waterproof design supports harsh commercial vehicle conditions.

5. AHD/CVBS switching function is available for flexible display compatibility.

Parameter:

Compatible Vehicle: Ford Transit 2006-2013

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 1.7mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), DC24V (Optional)

Minimum Illumination: 0Lux

White Balance: Auto

IR LED: N/A

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Product Details & Quality Inspection

Product Details Display

Recommended images:

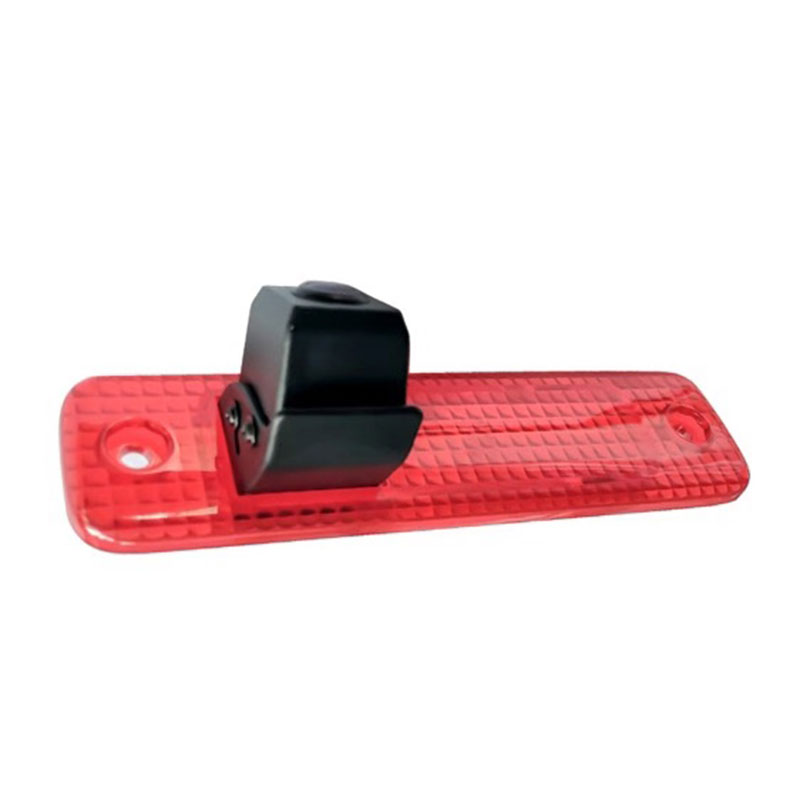

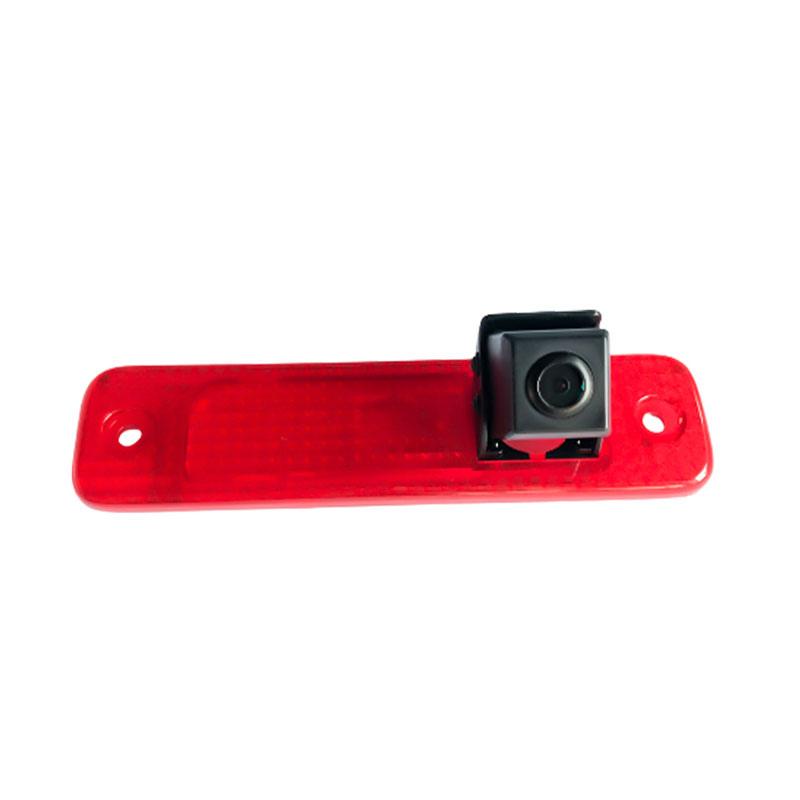

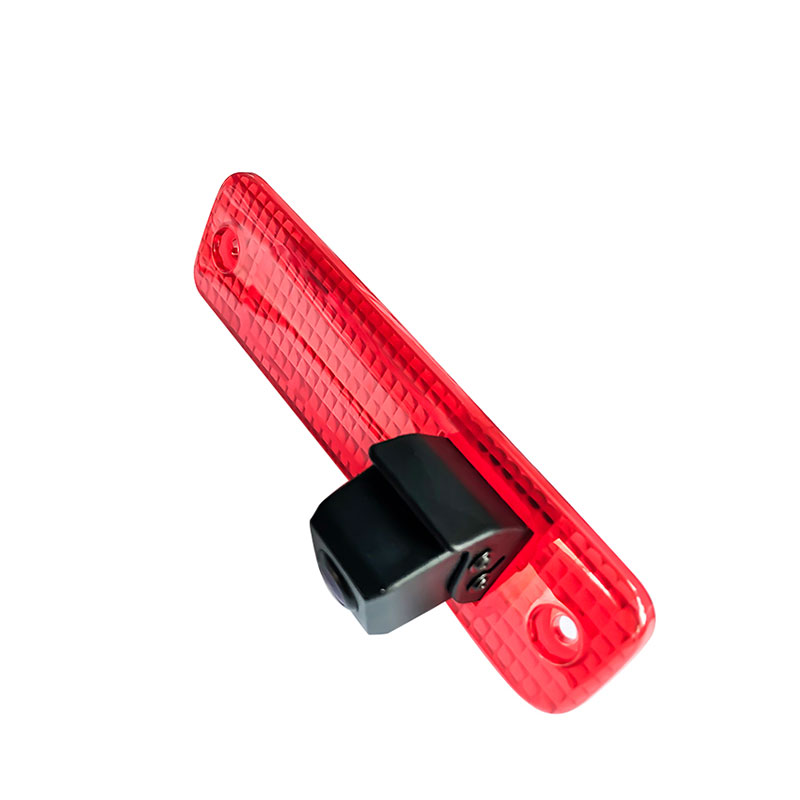

• Front view showing camera lens design

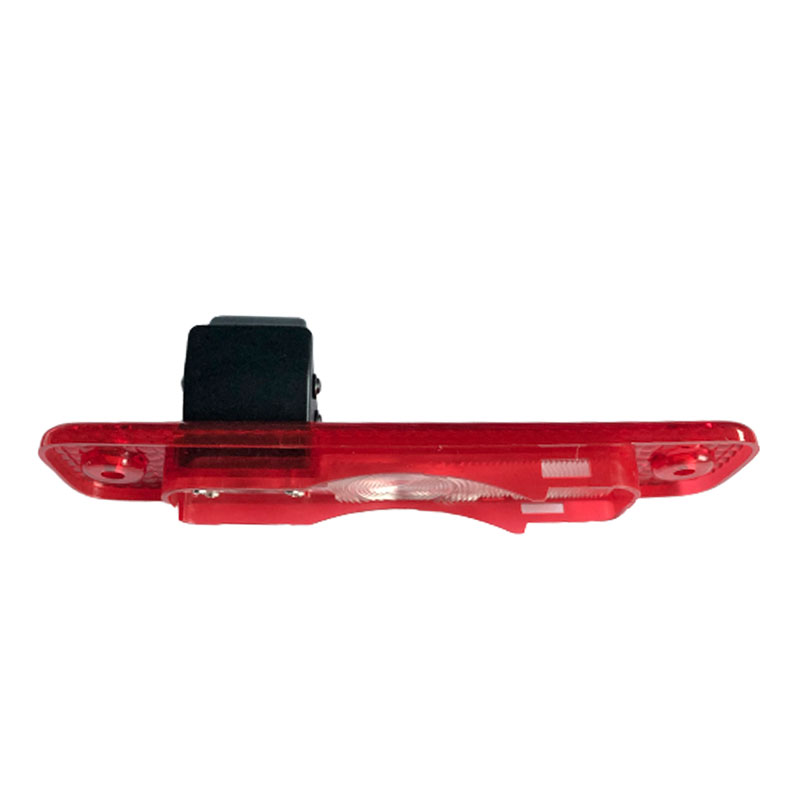

• Side view showing mounting bracket
• Cable and 4PIN aviation connector display
• Waterproof housing details
• Ford Transit installation effect
• Vehicle rear view image display

Testing Process

Each Ford Transit Rear View Camera is tested before shipment:

• Camera image quality test
• Video signal transmission test
• Waterproof performance test
• Power stability test
• Connector reliability test
• Aging test
• PAL/NTSC switching test
• AHD/CVBS switching test

FAQ

Q1: Which vehicle does this Rear View Camera fit?

A: This camera is designed for Ford Transit 2006-2013 Van.

Q2: Does this camera support 1080P resolution?

A: Yes, CVBS/720P/1080P video output options are available.

Q3: Is this camera waterproof?

A: Yes, the camera features IP69K waterproof protection, suitable for outdoor and commercial vehicle applications.

Q4: Does it support 12V and 24V vehicles?

A: The standard version supports DC12V, and DC24V version is available as an option.

Q5: Does this camera support night vision?

A: The camera uses 0Lux minimum illumination performance. IR LED is not included.

Q6: What connector does this camera use?

A: It uses a 4PIN Aviation Connector for stable connection and signal transmission.
