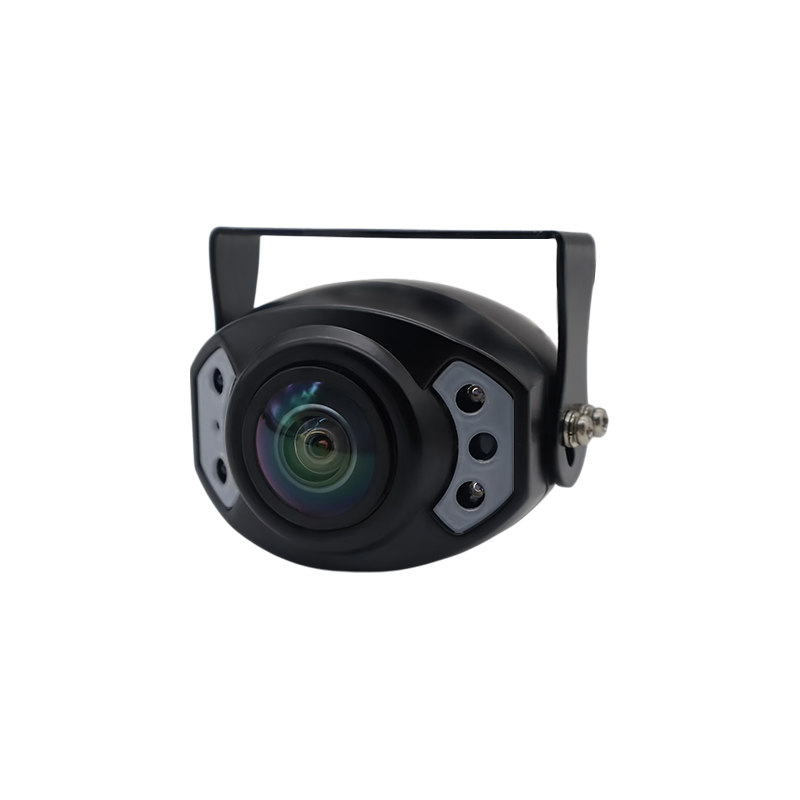

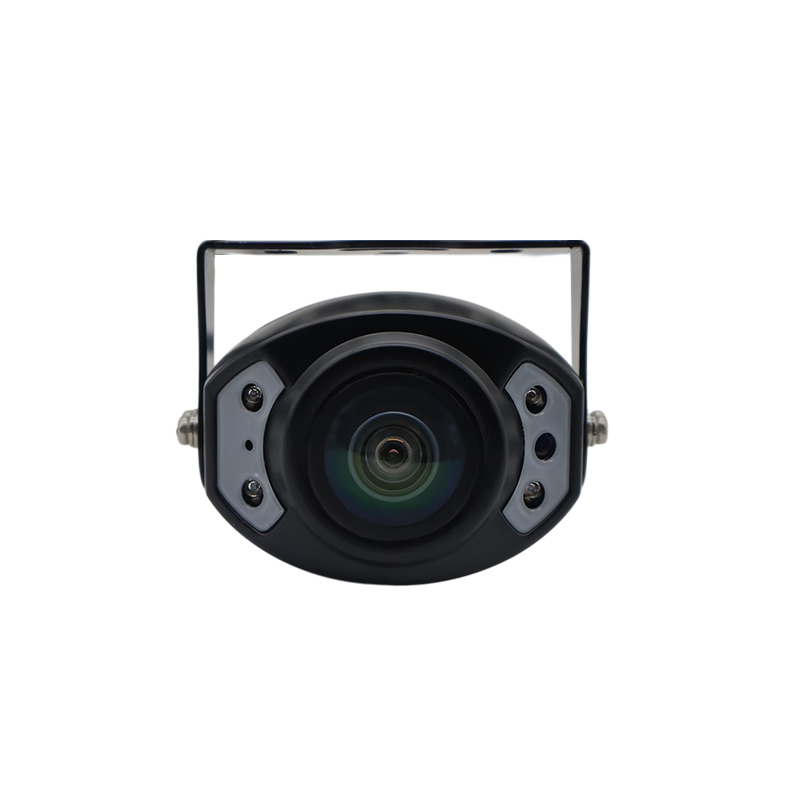

Front Side Rear View Mini Camera with Automatic Day Night Switching and IP69K

Product Advantages

Multi-Position Vehicle Monitoring — Designed for flexible installation as a front view, side view, rear view or blind-spot camera, helping reduce the need for different camera models across one vehicle project.

150° Ultra-Wide Viewing Angle — The 2.8mm lens provides a 150° viewing angle, allowing the camera to cover a broad monitoring area and making it suitable for side, rear and front vehicle surveillance.

Compact Mini Camera Design — The compact housing is suitable for vehicle applications where installation space is limited, while still providing wide-area image coverage.

Automatic Day & Night Switching — The built-in IR-Cut system automatically switches between day and night modes according to surrounding light conditions, helping maintain consistent image performance throughout the day.

BMW-to-4PIN Connector — The BMW-to-4PIN connector provides a practical connection configuration for compatible vehicle camera systems and helps simplify integration with the corresponding wiring setup.

Suitable for Fleet & Commercial Vehicle Projects — The combination of wide-angle coverage, automatic day/night switching, multiple video formats and IP69K protection makes the camera suitable for trucks, buses, vans, trailers and other commercial vehicle monitoring systems.

Product Parameters

Product Type: Front / Side / Rear View Mini Camera

Lens: 2.8mm

Image Sensor: 1/2.7" & 1/1.9"

Lens Angle: 150°

Video Input: CVBS / AHD720P / AHD1080P Optional

Image: Mirror / Non-Mirrored Optional

Night Vision: Infrared Night Vision

IR LED: 4 LEDs

Day/Night Switching: Automatic IR-Cut Day & Night Switching

S/N Ratio: ≥48dB

Video System: PAL / NTSC Optional

Built-in Microphone: Optional

Connector: BMW to 4PIN Connector

Power Supply: DC12V Standard, 24V Optional

Waterproof Rating: IP69K

Operating Temperature: -20~+75°C, RH95% Max.

Storage Temperature: -30~+85°C, RH95% Max.

Application Scenarios

• Commercial Vehicles

Suitable for trucks, vans, buses and other commercial vehicles requiring additional camera coverage.

• Truck Side & Blind Spot Monitoring

The 150° wide viewing angle can be used for side-view and blind-spot monitoring around large vehicles.

• Front View Monitoring

Can be installed at the front of a vehicle to provide additional forward visibility.

• Rear View / Backup Monitoring

Can be used as a compact rear-view camera with a compatible vehicle monitor or DVR/MDVR.

• Fleet Monitoring Systems

The AHD/CVBS versions can be integrated into vehicle surveillance systems using compatible DVR or MDVR equipment.

• Customized Vehicle Camera Projects

The compact form factor and multiple video options make it suitable for OEM, fleet and vehicle camera integration projects.

Quality Control

Carleader vehicle cameras are produced for commercial vehicle and fleet monitoring applications. Depending on product configuration and project requirements, relevant inspections can include:

• Image quality inspection
• Video signal inspection
• Day/night switching function inspection
• Infrared LED function inspection
• Viewing angle inspection
• Connector and cable inspection
• Waterproof and sealing inspection
• Operating temperature verification
• Power supply and electrical function inspection
• Final appearance and assembly inspection

FAQ

Q1. What can this mini vehicle camera be used for?

A1. It can be used as a front view, side view, rear view or auxiliary blind-spot camera depending on the installation position.

Q2. What is the viewing angle of the camera?

A2. The camera uses a 2.8mm lens with a 150° viewing angle.

Q3. Does the camera support night vision?

A3. Yes. It has infrared night vision with 4 IR LEDs.

Q4. Does it automatically switch between day and night mode?

A4. Yes. The built-in IR-Cut system automatically switches between day and night modes according to lighting conditions.

Q5. Does it support AHD1080P?

A5. Yes. CVBS, AHD720P and AHD1080P versions are available.

Q6. Can the image be mirrored?

A6. Yes. Mirror image and non-mirrored image configurations are optional.

Q7. Is the camera waterproof?

A7. Yes. The camera has an IP69K protection rating.

Q8. What connector does the camera use?

A8. It uses a BMW-to-4PIN connector.

Q9. Does it support 24V vehicles?

A9. Yes. 12V is the standard power supply, while 24V is available as an option.

Q10. Can a microphone be added?

A10. Yes. A built-in microphone is available as an optional configuration.

Q11. Can it work with an MDVR or vehicle DVR?

A11. The CVBS/AHD versions can be integrated with compatible vehicle DVR or MDVR systems.

Q12. Can it be used for truck side or blind-spot monitoring?

A12. Yes. Its compact design and 150° wide viewing angle make it suitable for side-view and blind-spot monitoring applications.
