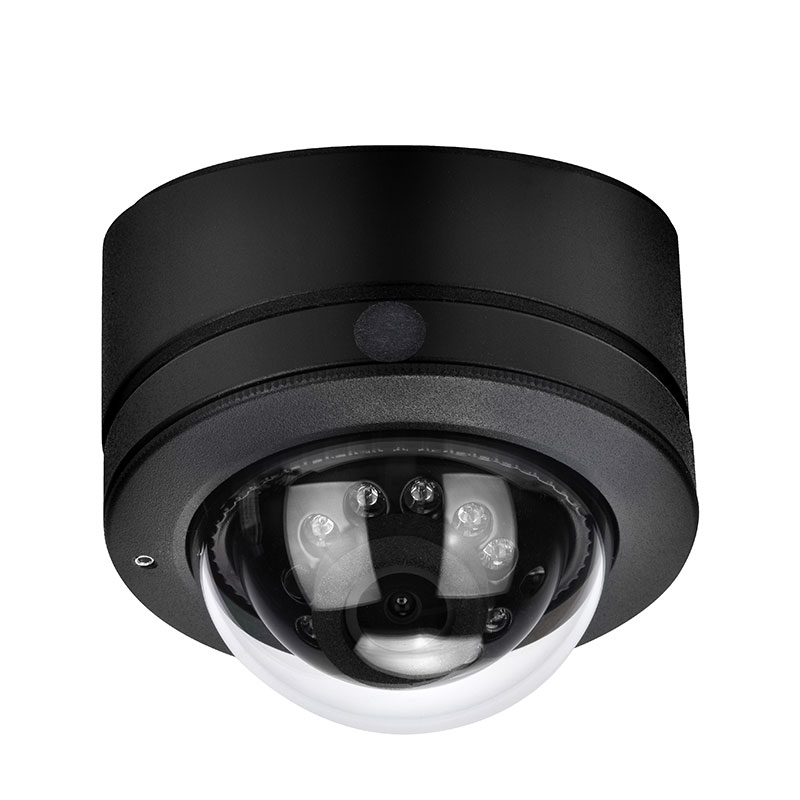

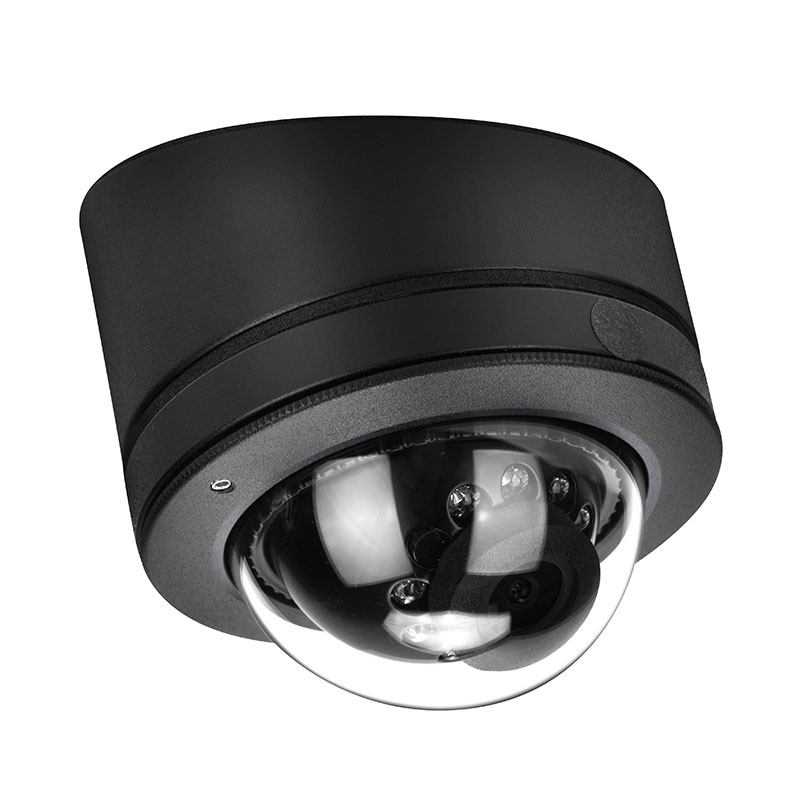

IP69 AHD Dome Camera With 15°/25° Bracket For Vehicle Camera System

Carleader IP69 AHD Dome Camera With 15°/25° Bracket For Vehicle Camera System which comes with a 15° angled bracket as standard, while a 25° bracket is optional. The angled mounting design provides greater flexibility when positioning the camera inside a vehicle and can help installers achieve the desired monitoring direction. The camera supports CVBS, AHD 720P and AHD 1080P optional video input, making it suitable for different vehicle monitors, DVRs and MDVR systems. For nighttime monitoring, the camera features 10 LED lights with 0 Lux performance, providing additional illumination in dark environments. The IR cut day and night switch automatically changes between day and night modes. The IP69 waterproof housing, 120° viewing angle and 2.8mm lens make this vehicle surveillance camera suitable for commercial vehicles and fleet applications.

Features:

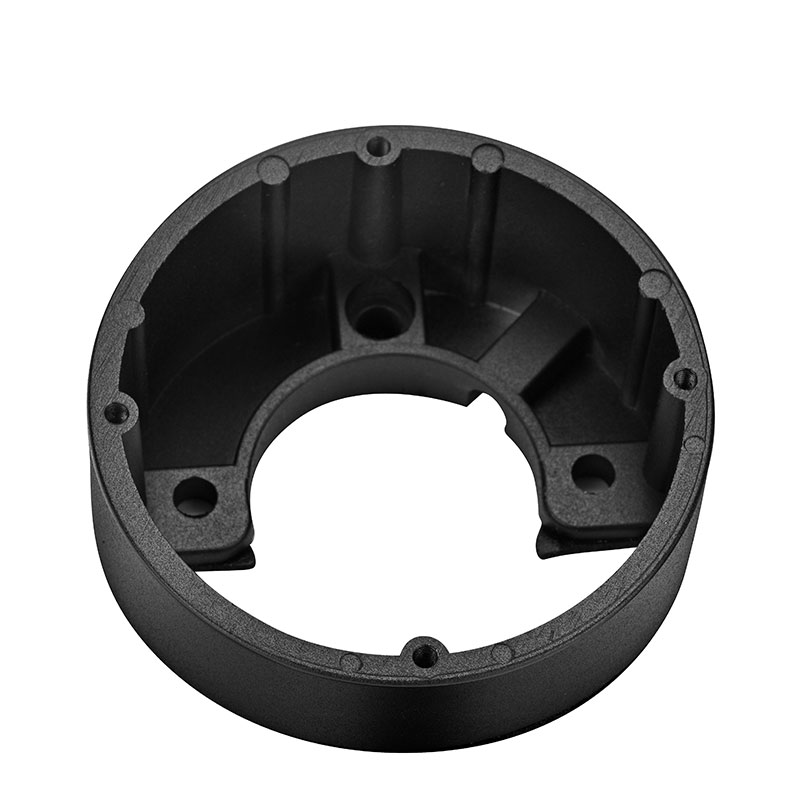

1. 15° angled mounting bracket as standard, with 25° bracket optional.
2. AHD vehicle camera supports CVBS / AHD 720P / AHD 1080P optional video.
3. 0 Lux night vision performance supports monitoring in very dark environments.
4. 2.8mm lens with 120° viewing angle provides broad vehicle surveillance coverage.
5. IP69 waterproof housing is designed for demanding vehicle applications.
6. Mirror and non-mirrored image options support different installation requirements.
7. PAL/NTSC optional supports different vehicle video systems.

Parameter:

Product Type: Vehicle Dome Camera With Angled Bracket

Video Input: CVBS / AHD 720P / AHD 1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0 Lux (10 LED)

Lens: 2.8mm

View Angle: 120°

Bracket: 15° Standard, 25° Optional

Day/Night Function: IR Cut Day and Night Switch Automatically

Mirror Image: Optional

Non-Mirror Image: Optional

Video Output: 1.0Vp-p, 75Ω, AHD

Waterproof Rating: IP69

S/N Ratio: >44dB

System: PAL/NTSC Optional

Built-in Mic: Optional

Operating Temperature: -20°C to +75°C (RH95% Max.)

Storage Temperature: -30°C to +85°C (RH95% Max.)

Application Scenarios

This vehicle dome camera is suitable for:

• Bus surveillance
• Truck surveillance
• Commercial vehicle monitoring
• Fleet management
• Vehicle security systems
• Logistics vehicle monitoring
• Passenger vehicle monitoring
• MDVR surveillance systems
• Vehicle CCTV systems
• Mobile video surveillance

The 15°/25° mounting bracket makes this model particularly suitable for installations where the camera needs an angled mounting position.
